Yamaha VXS10STW
Yamaha VXS10STW
Click to expand

Yamaha VXS10STW

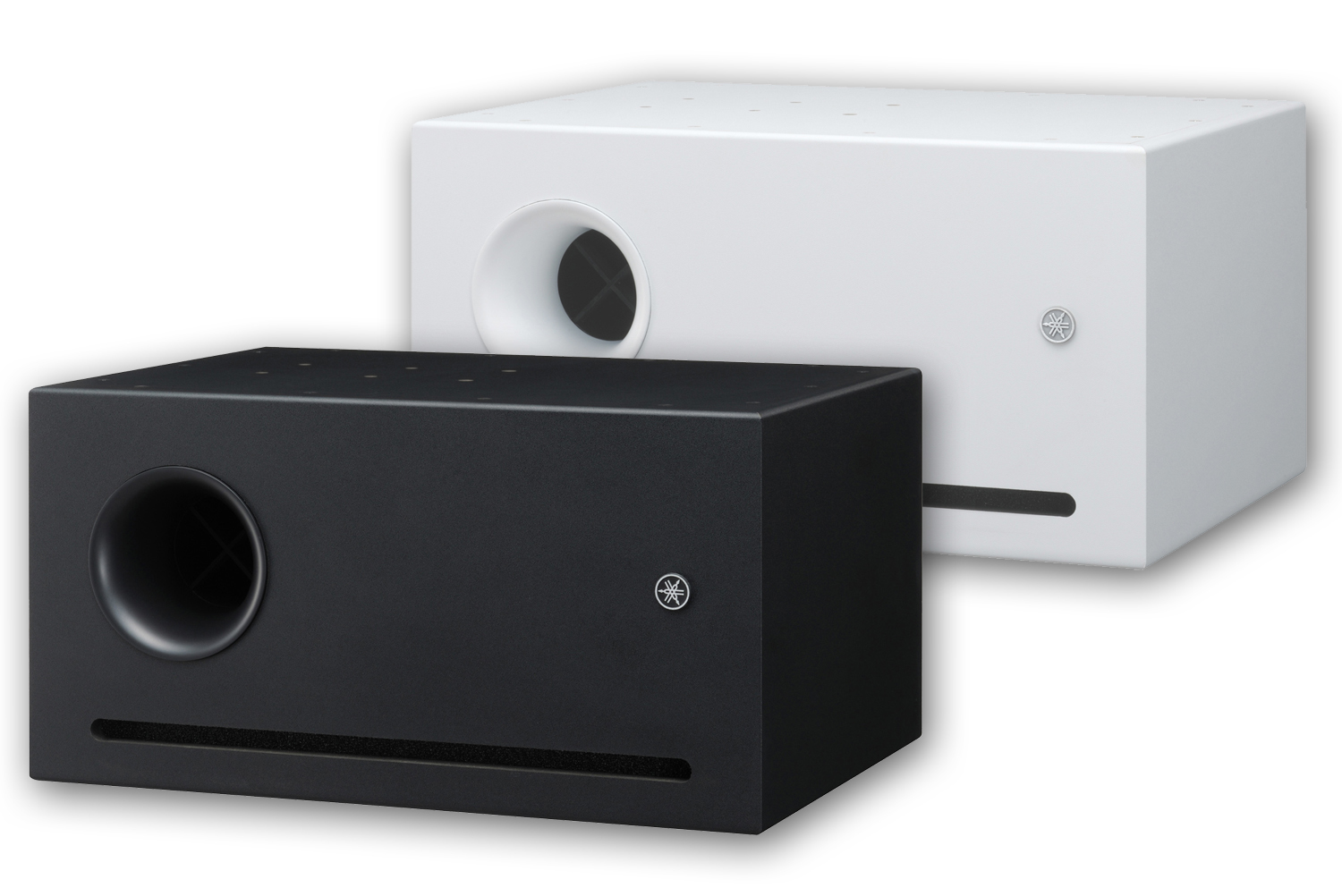

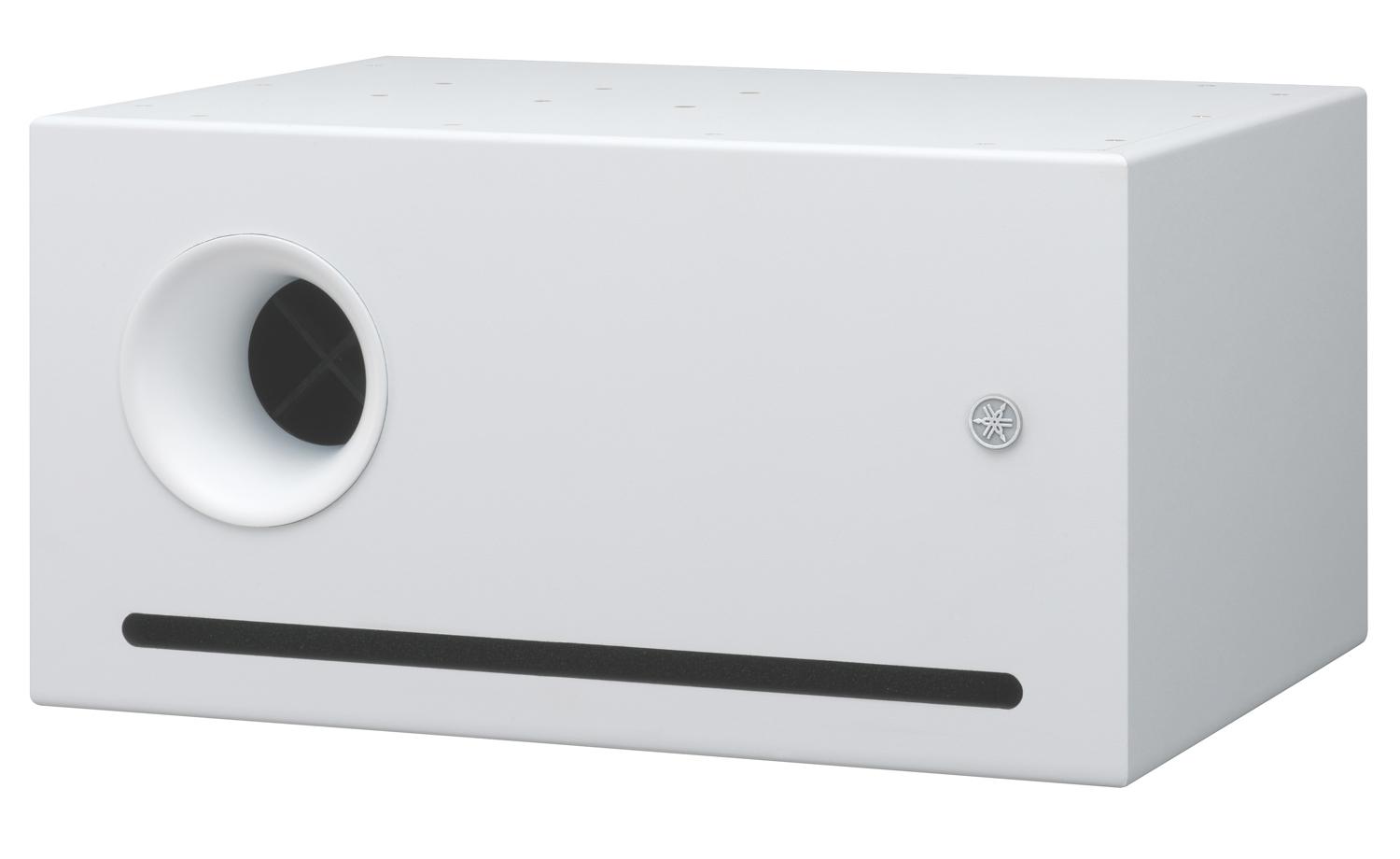

Yamaha VXS10STW subwoofer loudspeaker for 70 / 100 volt line. Dual voice coil, 10". Rated at 200 watts + 200 watts Program power and compatible with high impedance music systems only.

White finish. Also available in black.

Supplied with wall mounting bracket.

  • Versatile high-impedance subwoofer
  • Sound and size ideally matched to the VXS and VXC series
  • Bass-reflex design ensures smooth, distortion-free low-frequency extension
  • Dual voice coil configuration supports stereo sources
  • Ideal response can be achieved with a satellite
  • Dedicated wall-mount hardware supplied
  • Available in black (VXS10ST) or white (VXS10STW)
  • Warranty: 5 Years.

*****SUPPLIED & PRICED INDIVIDUALLY*****

Click here to download the Yamaha Commercial Installations Brochure.

Click to download the Yamaha Brochure

1e: 8ohms
List Ex VAT: Log in
Log in for Trade Prices
CONTACT US

SPECIFICATIONS



General specifications

VXS10ST / VXS10STW

Speaker Type

Subwoofer

Frequency response (-10dB)

45Hz-250Hz

Components

10” Dual Voice Coil

Satellite impedance

8Ω load per satellite output recommended

Transformer Taps (100V)

25W, 12.5W, 6.3W

Transformer Taps (70V)

25W, 12.5W, 6.3W, 3.1W

SPL Sensitivity (1W; 1m on axis)

96dB SPL

I/O connectors

Input: 1x Euroblock (4P)(Input: + / -, Loop Thru: + / -), Satellite

Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -)

Cabinet material

MDF

Finish

VXS10S: Black, VXS10SW: White

Dimensions W x H x D

Transformer Taps (100V)        25W, 12.5W, 6.3W

Transformer Taps (70V)          25W, 12.5W, 6.3W, 3.1W

Net weight

19.5 kg (43 lbs)

Accessories

Wall mount bracket

DOWNLOADS

Yamaha VXS10ST Datasheet
