Soundtube IPD-SM500i-II-BK
The SoundTube IPD-SM500i-II-BK is a Dante-enabled, IP addressable surface-mount cabinet loudspeaker for IP-addressable audio networks on the Dante and AES67 platform.
Black finish. Also available in white, see IPD-SM500i-II-WH.

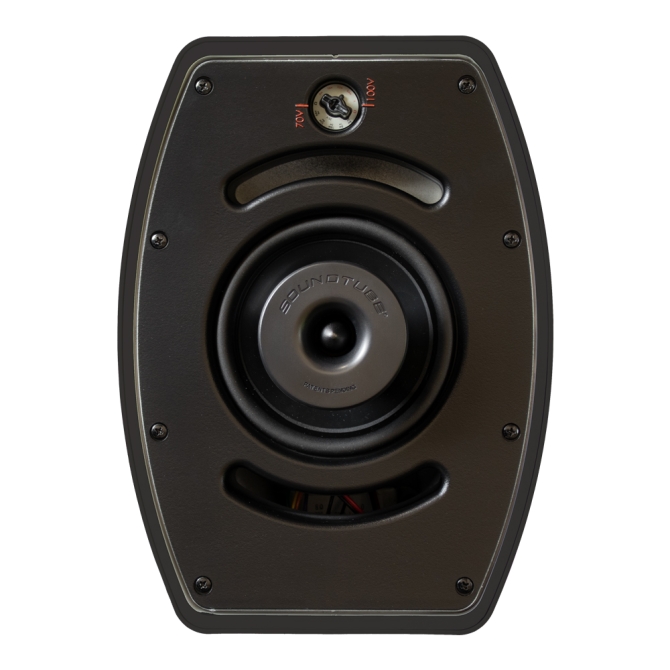

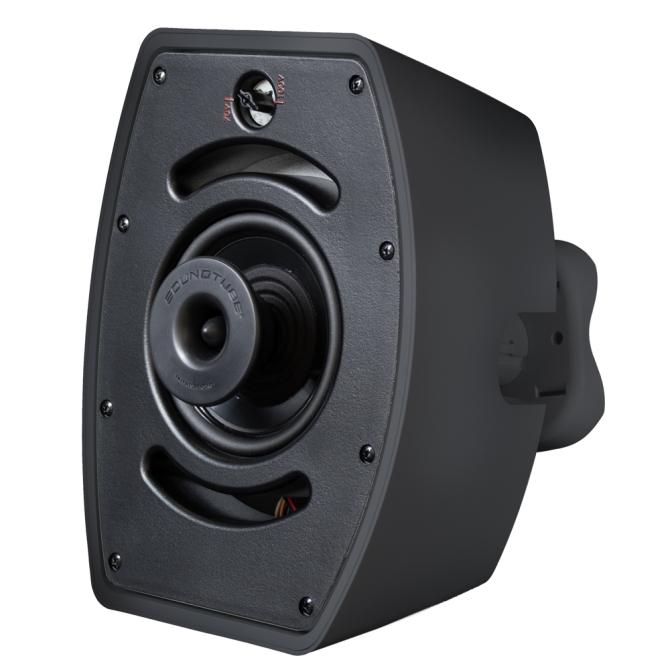

This compact surface-mount speaker incorporates one 5.25-inch polypropylene woofer (134 mm) and one 1.0-inch (25.4 mm) convex titanium tweeter with BroadBeam® waveguide in an injection-moulded, glass fibre reinforced ABS enclosure.
Low latency digital audio, power, and control are delivered to the speaker via standard CAT5 or CAT6 cable; connection is made on the other end to the STNet-Switch, or other PoE / PoE+ switch, which provides 40 W PoE (Power over Ethernet) to each speaker.
May also be powered via a 24V DC barrel connector for non-PoE installations.
Configuration and zoning of the speaker are accomplished via software.
Mounting hardware for the IPD-SM500i-II is included and features SoundTube®'s proprietary Stealth™ bracket mounting system, providing unlimited directional aiming and a low profile, with a security knob to reduce tampering after placement.
The IPD-SM500i mkII also includes a detachable mounting plate designed for pre-mounting in either wall or pole applications.
- IP-addressable, self-powered (PoE) speaker.
- Dante™ and AES67 I/O for interconnectivity with Dante and AES67-enabled audio systems.
- BroadBeam® waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker.
- One 5.25” (133 mm) polypropylene woofer and one 1” (25.4 mm) convex titanium tweeter with FerroFluid™ cooling.
- Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
- 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
- Provides report-back on any problems via SoundTube software.

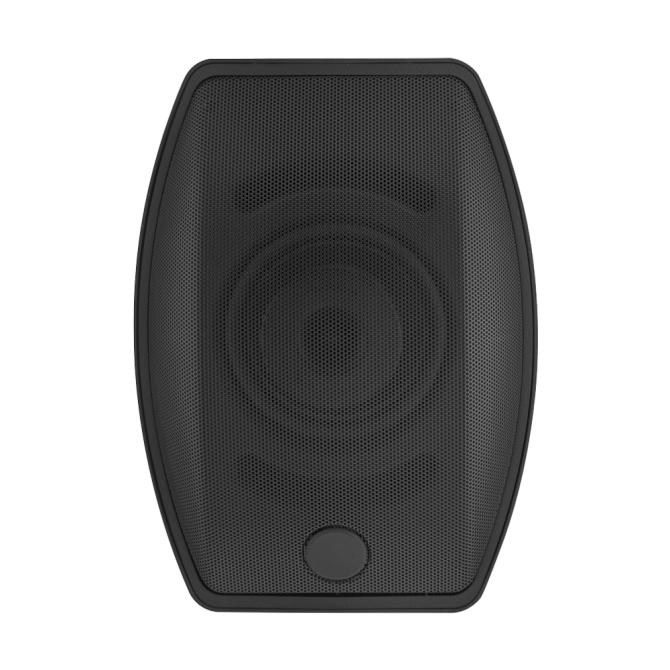

- Aluminum grille with powder-coat finish.

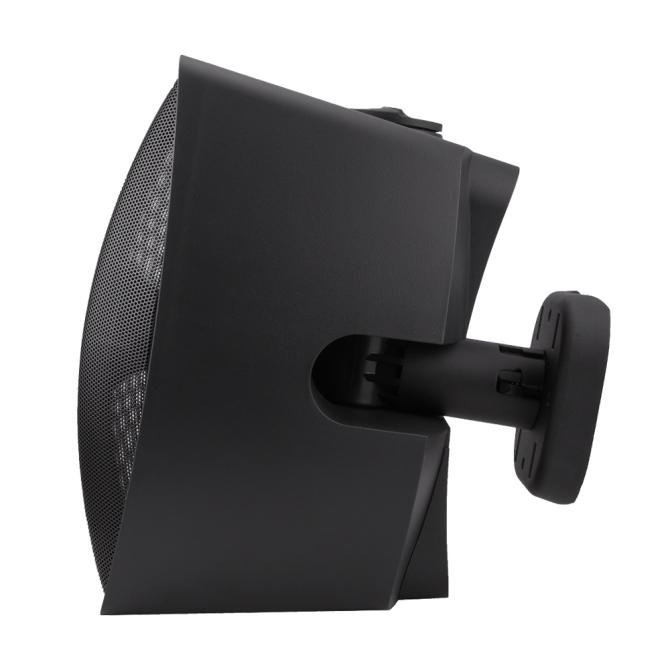

- Includes Stealth™ bracket mounting system.
- Vertical and horizontal pivoting allow the IPD-SM500i-II to be aimed anywhere within the installation space.
- Low profile enclosure design keeps the speaker close to the wall.
- High-quality black or white paint finish.
- Included accessories: safety cable with speaker mounting bolt and wall mount bracket
- Warranty: 5 Years
