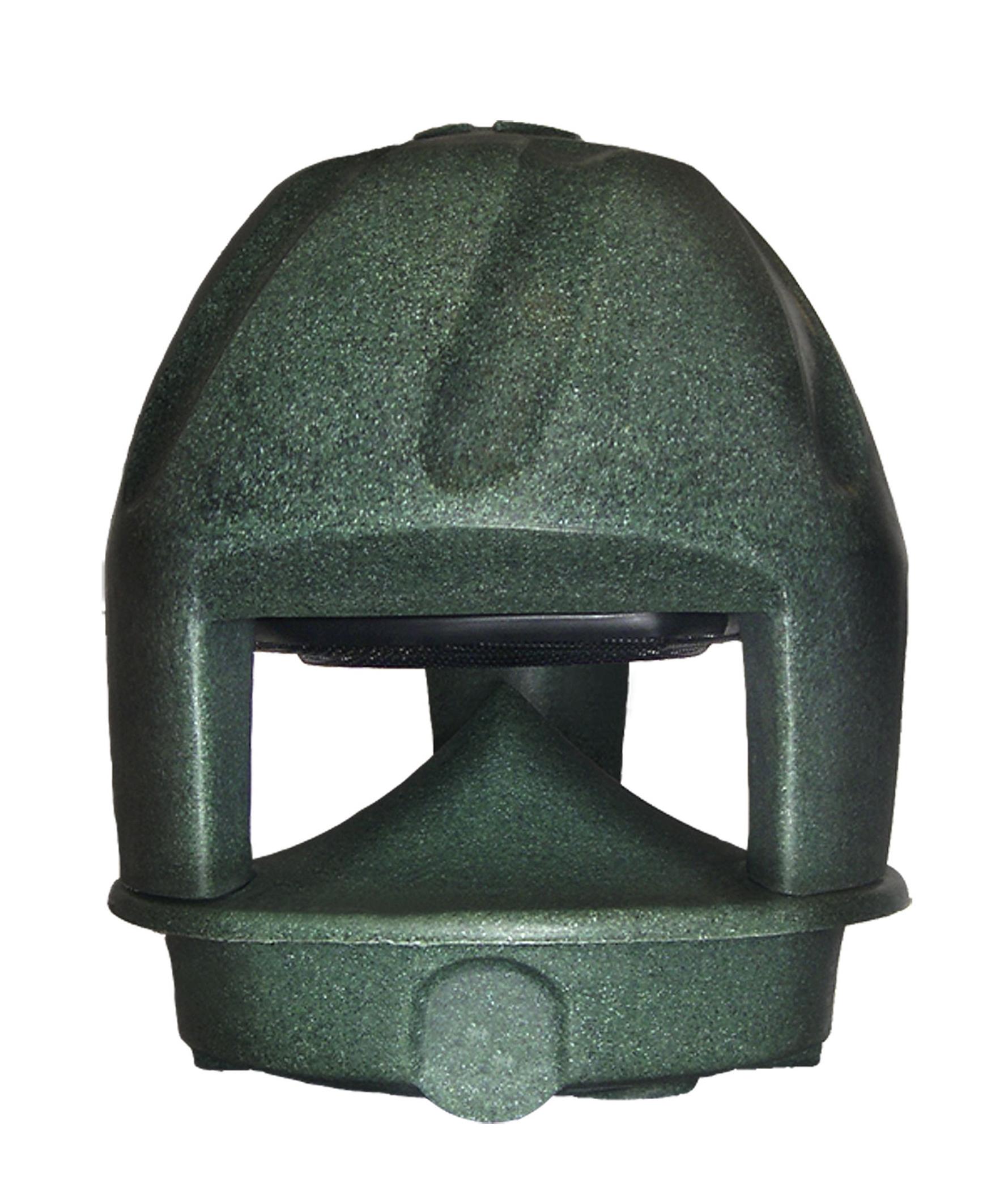

Soundtube IPD-XT850
Click to expand

Soundtube IPD-XT850

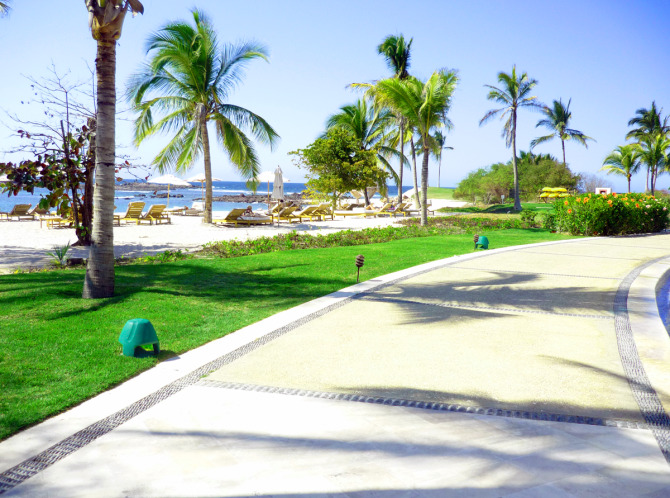

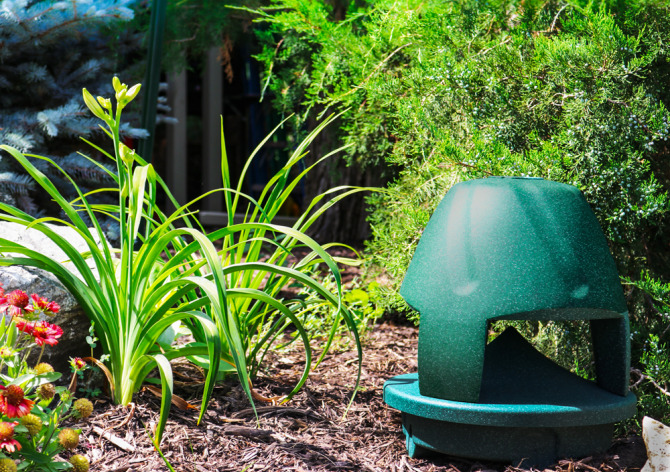

The SoundTube IPD-XT850 is a premium, 8” IP addressable, in-ground, 2-way outdoor loudspeaker IPD solution for outdoor installations requiring high-performance sound in a durable speaker design. Ideal for theme parks, gardens and other outdoor attractions, the IPD is designed for full-range background and foreground music as well as paging.

The IPD-XT850 is UV resistant, scratch resistant, chlorine resistant, and weather resistant with professional-grade components for long-lasting performance and durability.

The speaker's sealed, in-ground enclosure design delivers true low end response (38 Hz, ±10 dB) and optimal off-axis performance.

The IPD-XT850 also includes theft resistant mounting hardware.

  • STNet IP-addressable, self-powered (PoE) speaker.
  • Dante™ and AES67 I/O for interconnectivity with Dante and AES67-enabled audio systems.
  • AES67 compatible
  • Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable.
  • 40 W PoE provided by SoundTube STNet Switch; also works with standard PoE+ and PoE switches.
  • Provides report-back on any problems via SoundTube software.
  • Patented BroadBeam® waveguide technology provides smooth 360° horizontal off-axis coverage and reduces overall system costs.
  • One 8” (203 mm) weatherproof polypropylene woofer with butyl rubber surround and one 1” (25.4 mm) convex aluminium tweeter with integrated horn and mounting bracket.
  • UV-, scratch-, chlorine-, and weather-resistant with professional-grade components for long lasting performance and durability.
  • Patented, durable and weather sealed Zero
    Reflection™ enclosure.
  • Liquid-tight compression fittings for water-tight
    protection.
  • Stainless steel fasteners & grille.
  • Colour: granite green
  • Warranty: 5 Years
Dante IP55 PoE
List Ex VAT: £1,025.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

System Type

 8”, coaxial, outdoor

Frequency Response (±3 dB)

 51 Hz - 10 kHz

Frequency Response (±10 dB)

 38 Hz - 22 kHz

Max. SPL dB @ 1 M RMS

 101 dB

Coverage Angle (±6 dB @ 2 kHz)

 360° horizontal | 40° vertical

Coverage Angle (±6 dB @ 10 kHz)

 360° horizontal | 40° vertical

Low-Frequency Driver

 1 x 203 mm (8”) polypropylene cone, butyl rubber surround

High-Frequency Driver

 1 x 25.4 mm (1”) convex aluminium tweeter

Low-Frequency Voice Coil

 32 mm (1.26”)

Crossover Frequency

 3 kHz

Network Type, Low Pass

 12 dB per octave, 2nd order

Network Type, High Pass

 12 dB per octave, 2nd order

Enclosure Material

Roto moulded polyethylene plastic

Grille

 Stainless steel with powder-coat finish

Inputs

 RJ45 Ethernet port

Colours

 Granite Green

Dimensions (HxDia)

 417.1 mm (16.42”) x 360 mm (14.17”)

Weight

 7.6 kg | 16.7 lbs

Included Accessories

 Anti-theft brackets, watertight strain relief

Packaging

 One per box

IP-Rating

 IP55

Certifications

 RoHS, IP55

Related Products

SoundTube IPD-SM52-EZ-WX-WH

5.25", Two-way, IP-addressable, Dante-enabled surface mount cabinet speaker. White.
Water resistant - Rated IP65.

see more
List Ex VAT: £592.00
SoundTube IPD-SM52-EZ-WX-BK

5.25", Two-way, IP-addressable, Dante-enabled surface mount cabinet speaker. Black.
Water resistant - Rated IP65.

see more
List Ex VAT: £592.00
SoundTube IPD-SM82-EZ-WX-BK

8", Two-way, IP-addressable, Dante-enabled surface mount cabinet speaker. Black.
Water resistant - Rated IP65.

see more
List Ex VAT: £716.00

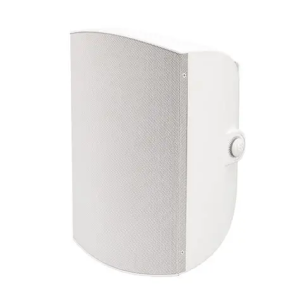

SoundTube IPD-SM82-EZ-WX-WH
