The Crown CTD-4125 is a four channel, power sharing amplifier with DSP and Dante which supports both Lo-Z and Hi-Z operation.

Providing a power output of 125 watts per channel when all channels are driven equally, asymmetrical power sharing enables the four channels to share the full 500W in any ratio, offering unparalleled flexibility. 4/8 ohm and 70/100V outputs are supported in any configuration.

Crown ComTech D Series amplifiers are designed for versatility, flexibility, and ease of installation. With both Dante inputs and outputs, built-in DSP, power sharing, Lo-Z/Hi-Z switching, and a simple to use web configuration interface, ComTech D amplifiers are ideal for meeting the changing demands of diverse installed audio applications.

Built-in DSP allows outputs to be tuned specifically for every application and provides the ability to create custom speaker tunings. Factory JBL Speaker Tunings for select JBL models, including Control 400 Series ceiling speakers, are included to simplify the optimization of an all-HARMAN solution.

The amplifier can be configured through the intuitive web interface with any computer or tablet and without the need to install proprietary software. It uses HARMAN's HControl protocol to communicate natively with BSS OMNI Processors or AMX MUSE Automation Controllers and includes an easy-to-use API for integration with 3rd-party control systems.

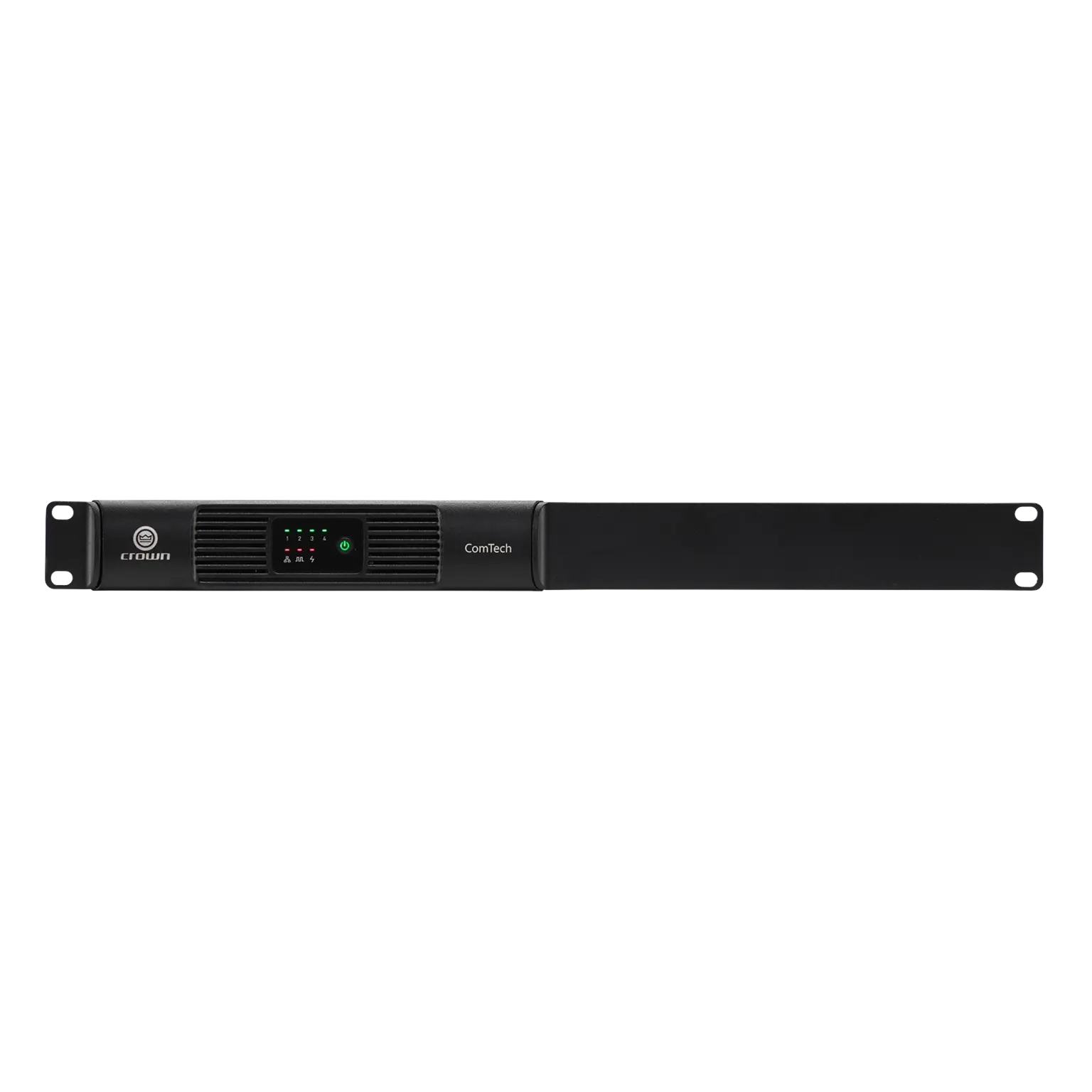

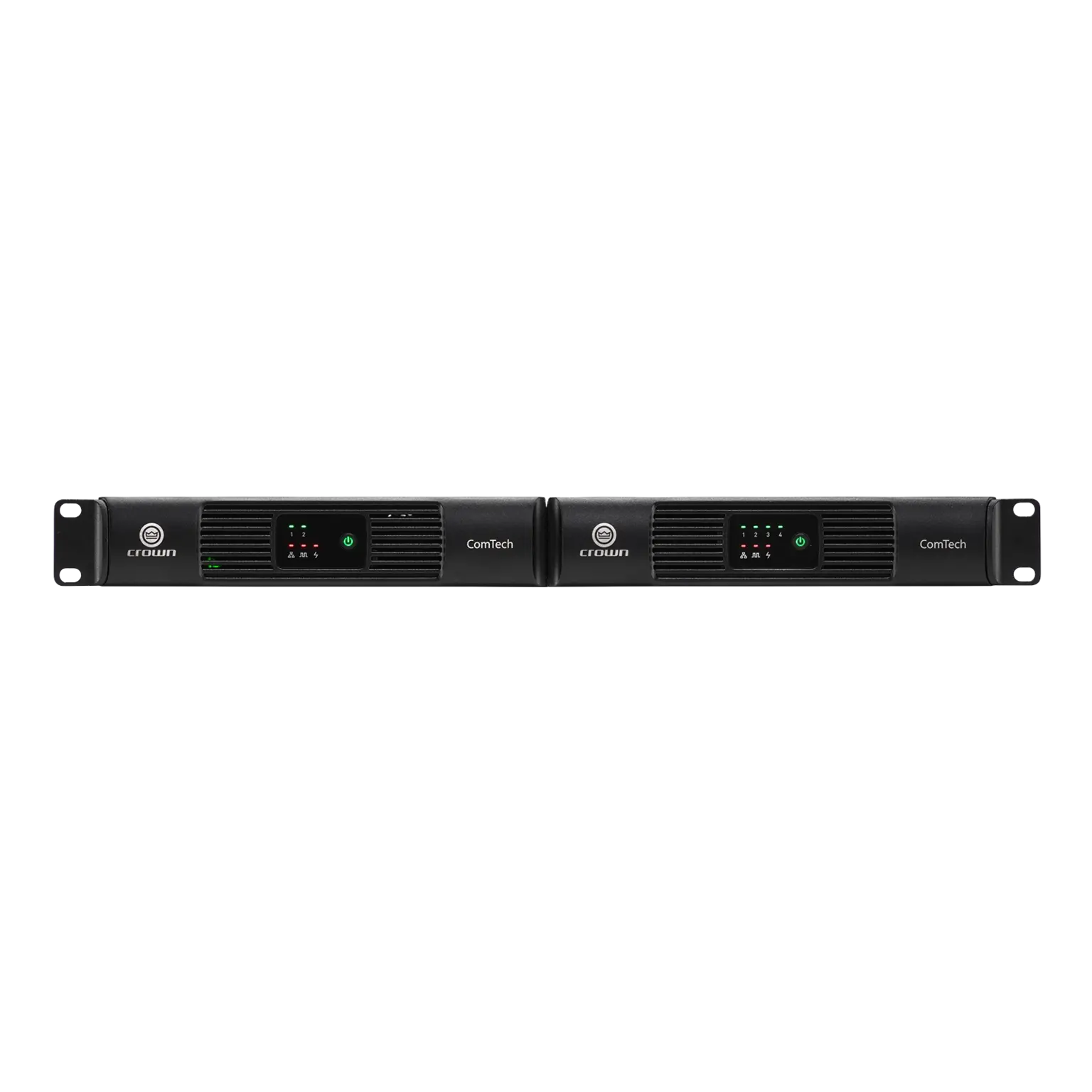

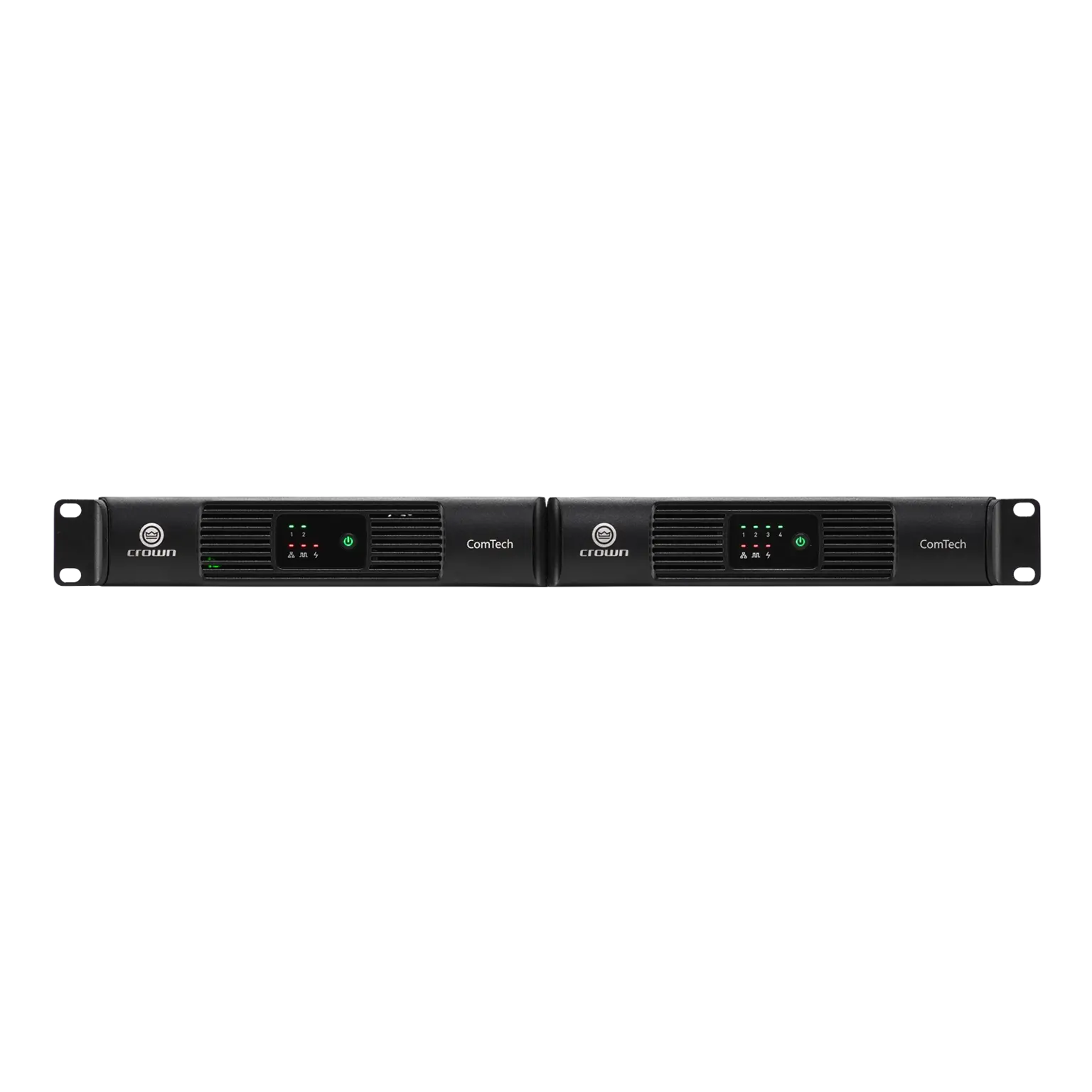

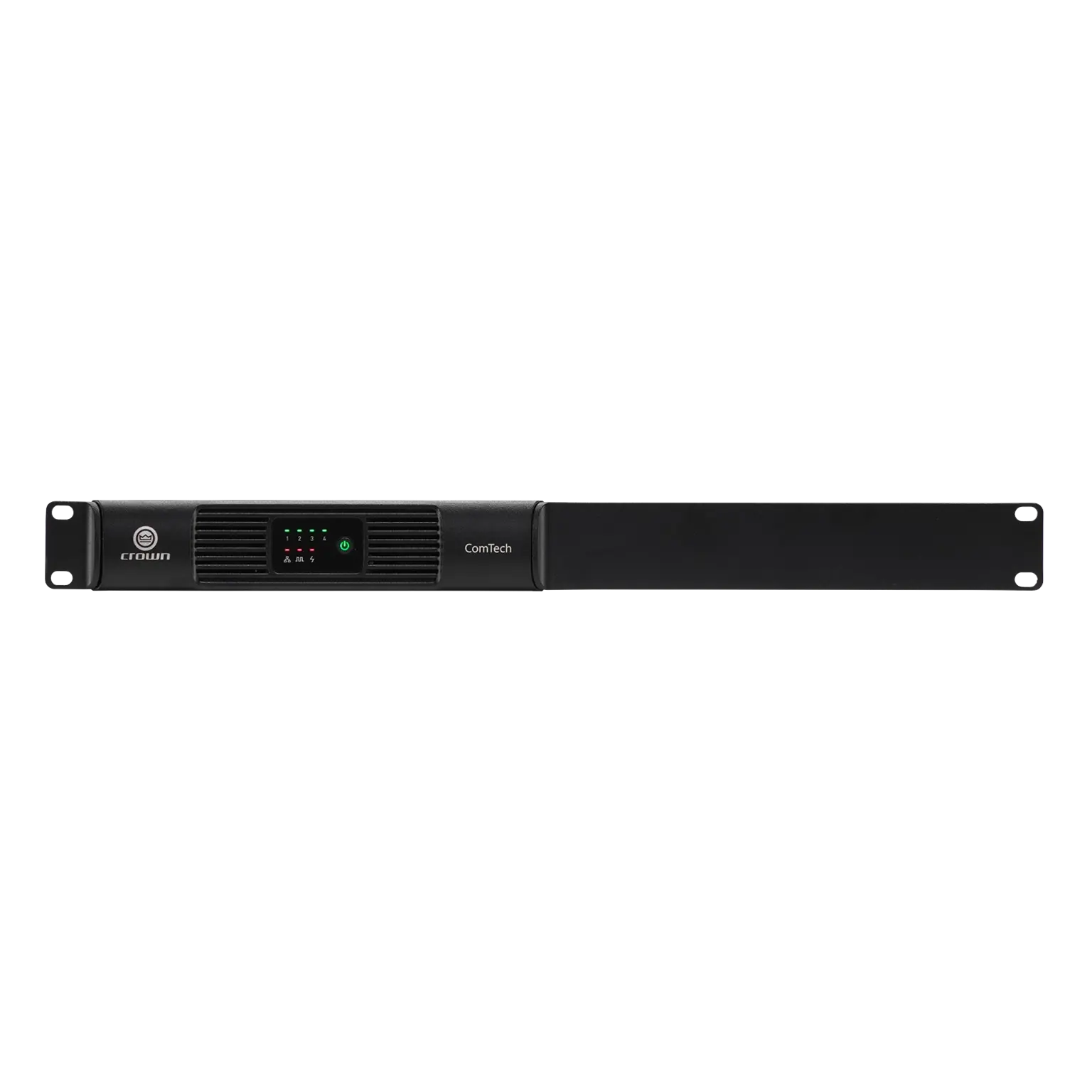

This compact half rack width amplifier takes up just 1 Rack Unit and can be installed in a rack, under a table, or on a wall using the included mounting hardware.

• Dante Inputs and Outputs
• DSP for Room Tuning and Speaker Tuning
• Power Sharing
• WebUI Configuration
• Lo-Z/Hi-Z switchable outputs
• Compact Design
• Factory JBL Speaker Tunings
• Pilot Tone & Load Monitoring
• Source Priority Switching
• Programmable GPIO Interface
• HControl
• Warranty: 5 Years

Alternative models are available with either 2 x 125W or 8 x 125W channels. Please see CTD-2125 & CTD-8125 in related products below.
