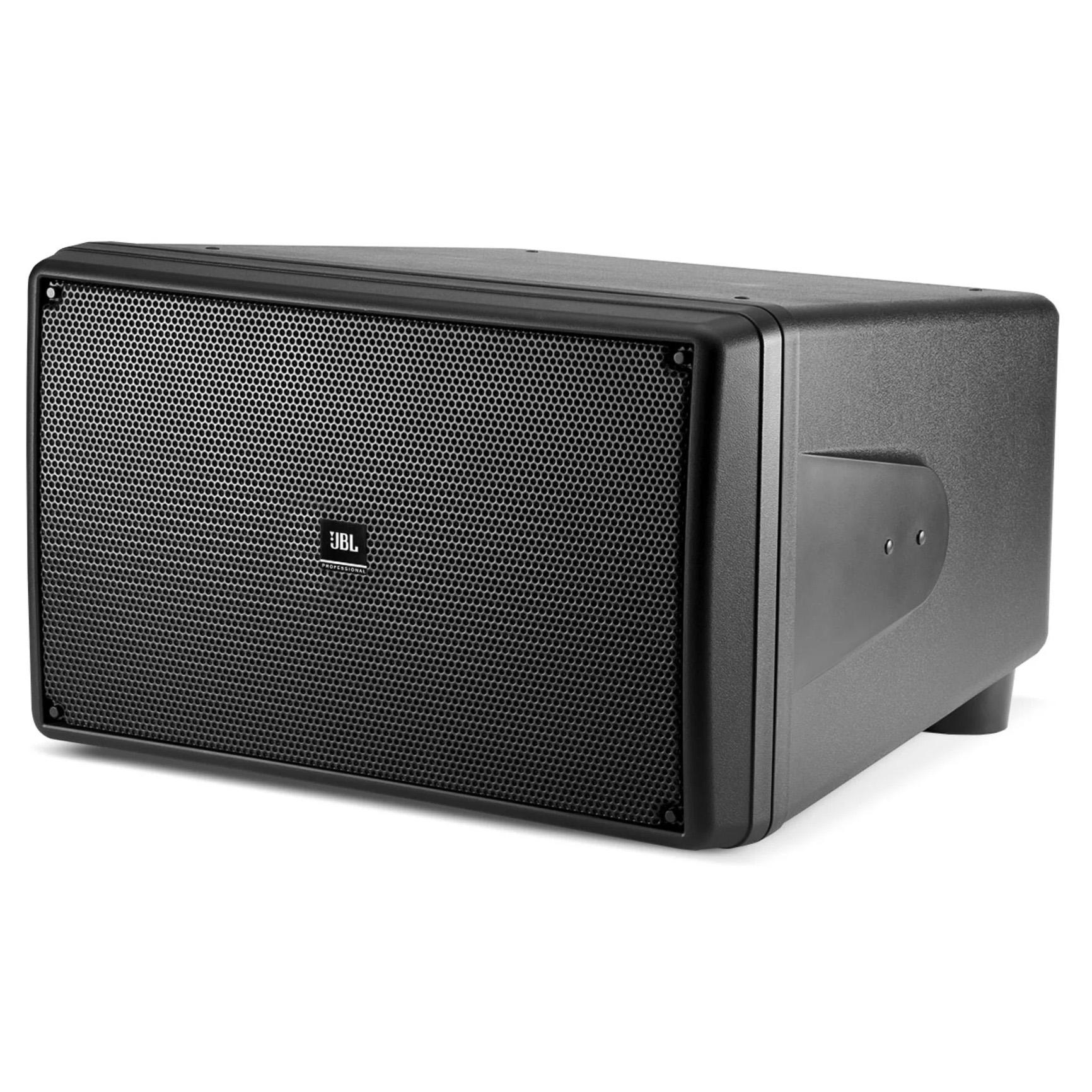

The JBL Control SB2210 dual 10” compact subwoofer is designed to provide low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output, IP45 rating and resistance to humidity, salt spray, temperature & UV makes it one of the most versatile subwoofers in the installation market.

Rated at 400 Watts at 8 Ohms. Whilst this model is low impedance, there is an optional, multi-tap, 70V / 100V line transformer available (MTC-SBT300) to convert it for use on high impedance loudspeaker circuits. Please contact us for more information.

Finished in black (JBL-Control 2AV-1), also available in white (JBL- Control 29AV-1-WH).

The Control SB2210 produces warm, punchy low-end sound and the internal angled baffle allows for a large port opening and compact front dimensions without compromising driver size

The two 250 mm (10 inch) diameter low-frequency drivers feature a long-excursion design and extended low-frequency performance. The driver's woven fiberglass cone delivers robust performance and the highly damped butyl rubber surround and linear suspension spider design provide clean sound quality with lower distortion. The driver's high temperature anodized aluminium voice coil former, voice coil wire, and adhesive ensure stable performance under long time high power working condition.
An FEA optimized motor construction reduces harmonic distortion while an aluminium conductive ring coupled to the outside of the pole post reduces harmonic distortion.

Included with the Control SB2210 are four feet for floor and shelf placement.

Thirteen M6 insert points allow for installation using forged shoulder eyebolts (with included bevel washers) for suspending the subwoofer, or for mounting to a wall or ceiling via the optional MTC-21 0UB Li-Bracket.

The thermoset composite-coated grille stands up to UV as well as humidity and direct exposure to water whilst the grille is backed with a combination of materials that, while acoustically transparent, prevent the intrusion of water into the cabinet.

• 2 x 250 mm (10 in.) Woven fiberglass cone LF drivers
• 500 Watts power handling
• Optional 70V / 100V transformer available
• Frequency response down to 38 Hz
• 13 x M6 insert points Including inserts for optional U-bracket
• Compact, low profile design
• Warranty: 2 Years

Download the current JBL Control Contractor Brochure here:
