TOA WS-5325U

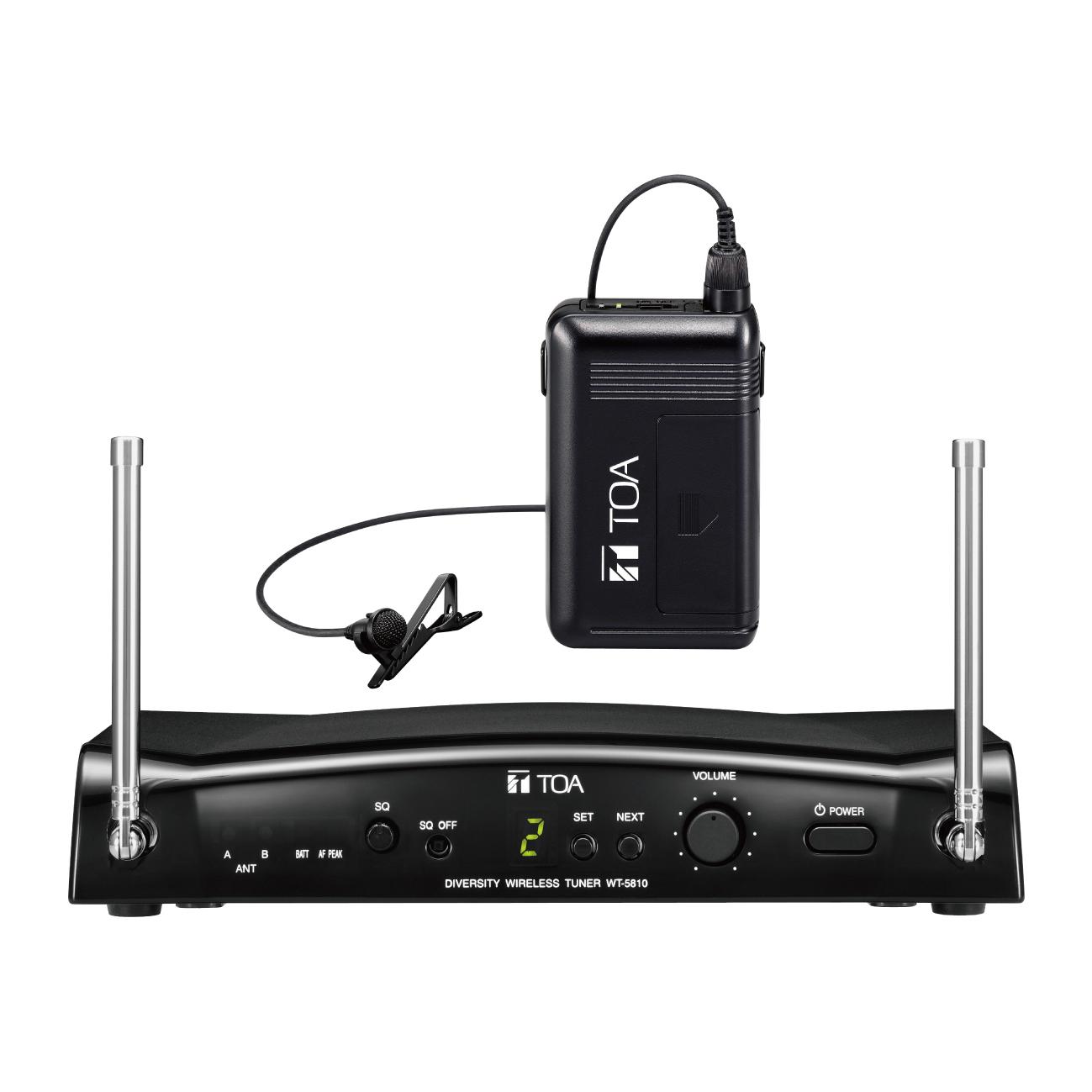

TOA WS-5325U wireless UHF tie clip / lapel radio microphone system is one of our favourite products. It includes a TOA WM5325 beltpack transmitter, TOA YPM5300 uni-directional lavalier mic and TOA WT5810 receiver.

Available on licensed Channel 38 or licence free Channel 70.

WM5325 Beltpack Transmitter

  • 64 selectable channels
  • Maximum input level: -14 dB to -29 dB
  • Low battery indicator
  • Only 1 AA battery required
  • Built-in antenna
  • 3.5mm jack mic input socket

YPM5300 Tie Clip / Lapel Mic

  • Electret condenser
  • Unidirectional
  • 1.3m cable
  • 3.5mm jack plug

WT5810 Receiver

  • Phase Locked Loop (PLL) synthesis operation
  • 16 selectable channel frequencies
  • TOA space diversity technology
  • Double super-heterodyne receiving system
  • Auto mixing input function
  • Squelch function (carrier, noise, tone)
  • Usable frequencies scanning and vacant channel search function
  • Compact portable design
  • Compander circuitry for minimizing ambient noise
  • Rod antenna × 2
  • Balanced output (XLR connector) and phone jack output
  • Low-battery indicator (wireless microphone's battery voltage becomes low)
  • Warranty: 1 Year
CH38 CH70 UHF
List Ex VAT: £445.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

WM5325 Beltpack

Modulation Frequency modulation
Frequency Range 576 - 932 MHz, UHF
Selectable Channels  64 channels
RF Carrier Power  Under 50 mW
Tone Frequency  32.768 kHz
 Modulation System  PLL synthesizer
 Maximum Input Level  -14dB to -29dB*1 (Audio level control: Min. to Max.)
 Maximum Deviation  ±40 kHz
 Battery  LR6 (AA)
 Battery Life  Approx 10 hours (alkaline)
 Indicator  Power/Battery lamps
 Antenna  Built-in type
 Operating Temperature  –10°C to +50°C
 Finish  Resin, rubber coating
 Dimensions  62 (W) × 102.5 (H) × 23 (D) mm (2.44" × 4.04" × 0.91")
 Weight  90 g (with battery)
 Accessory  Neck Strap x 1, Screw driver × 1, Storage case × 1

YPM5300 Uni Directional Microphone

Type Electret condenser type
Directivity Unidirectional
Sensitivity –63dB ±3dB (0dB = 1V/0.1 Pa, 1kHz)
Frequency Response 100 Hz – 12 kHz
Maximum Input Level 120 dB SPL
Cable Length  1.3 m (4.27 ft)
Terminal ø3.5mm (ø0.14") mini plug
Finish Dark black
Weight  20 g (0.71 oz) (cable included)

WT5810 Receiver

Power Requirement AC mains (supplied AC-DC adapter must be used)
Power Consumption 130 mA (12 V DC)
Receiving Frequency 576–865 MHz*, UHF
Channel Selectable 16 CH
Receiving System Double Super-heterodyne
Diversity System Space diversity
Mixing Output

MIC: –60 dB*2, 600Ω, balanced, XLR-3-31 type connector
LINE: –20 dB*2, 600Ω, unbalanced, phone jack
Mixing Input –20 dB*2, 10 kΩ, unbalanced, phone jack
Antenna Rod antenna
Receiving Sensitivity Over 90 dB, S/N ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity 18–40 dBμV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Tone Frequency 32.768 kHz
Indicator ANT A/B, Audio (peak), battery alarm
Channel Check Usable frequencies scanning
S/N Ratio Over 104dB (A-weight, unbalanced output)
Harmonic Distortion Under 1% (typical)
Frequency Response 100 – 15,000 Hz, ±3 dB
Operating Temperature –10°C to +50°C (14°F to 122°F)
Finish Resin, black
Dimensions 206(W) × 40.6(H) × 152.7(D) mm (8.11" × 1.60" × 6.01")
Weight 590 g (1.30 lb)
