TOA WS-5325H

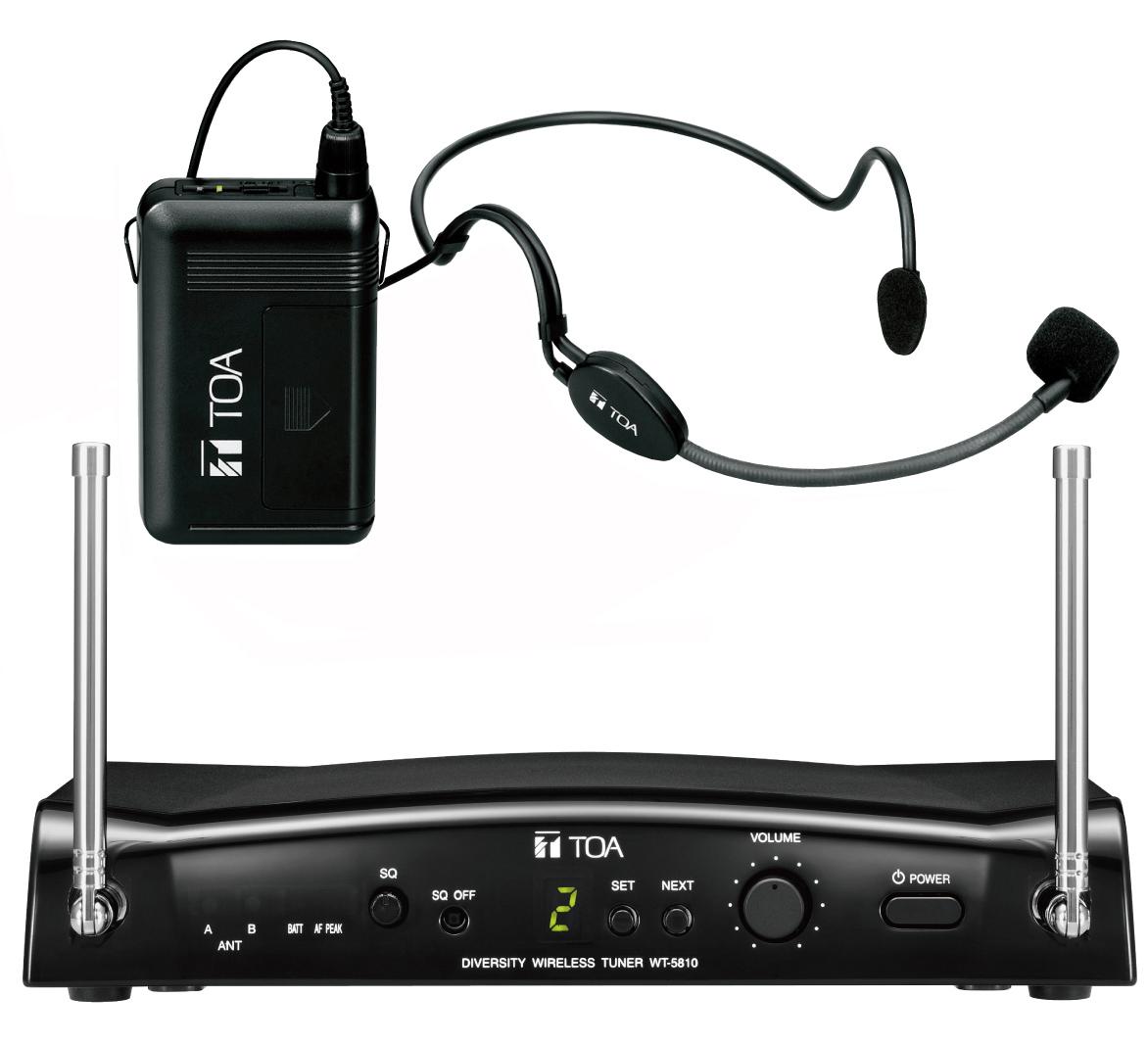

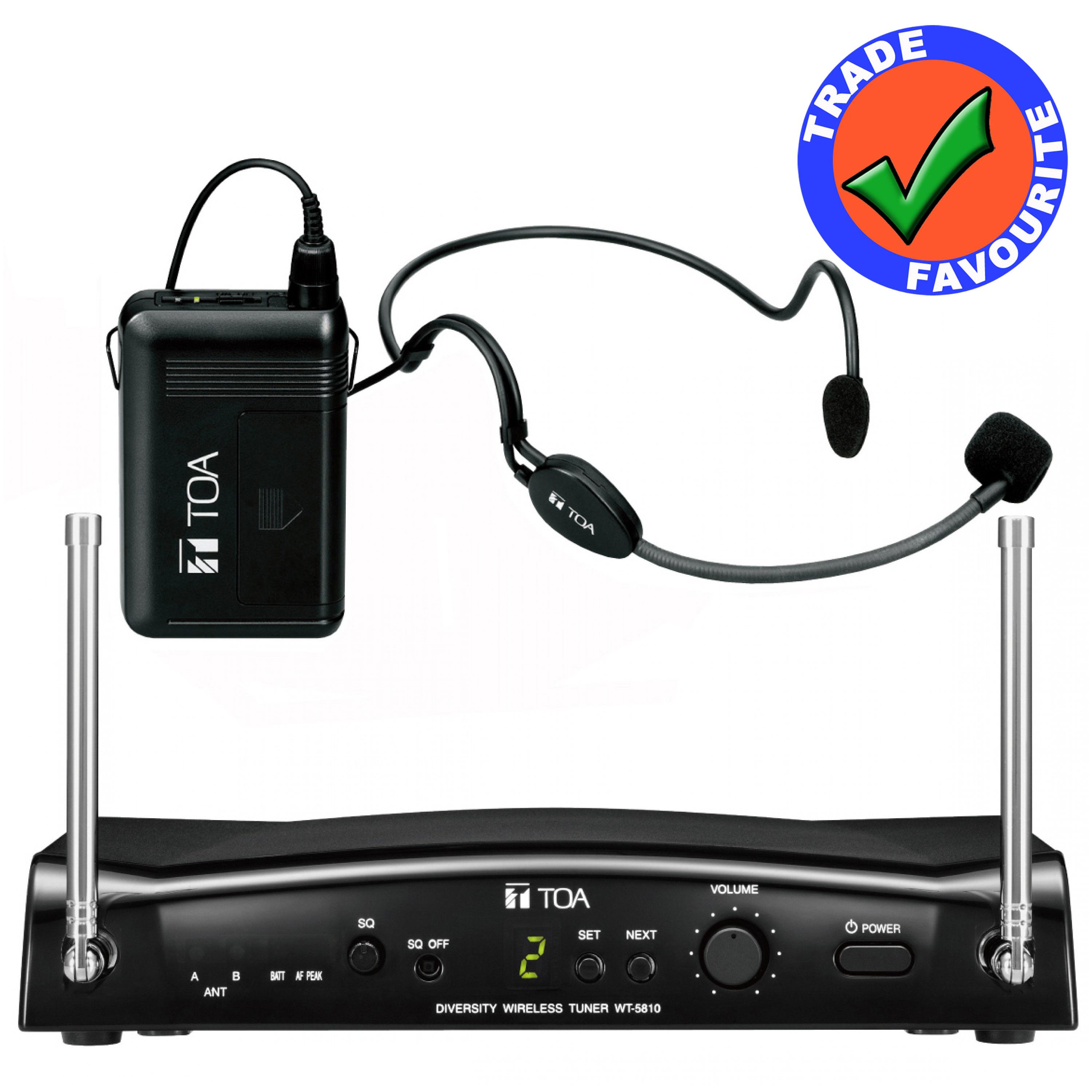

TOA WS-5325H wireless UHF headset radio microphone system is one of our favourite products. It includes a TOA WM5325 beltpack transmitter, TOA WH4000H lightweight headset mic and TOA WT5810 radio mic receiver.

Available on licensed Channel 38 or licence free Channel 70.

WM5325

  • 64 selectable channels
  • Maximum input level: -14 dB to -29 dB
  • Low battery indicator
  • Only 1 AA battery required
  • Built-in antenna
  • 3.5mm jack mic input socket

WH4000H

  • Headset design
  • Electret condenser
  • Unidirectional
  • 1.3m cable
  • 3.5mm jack plug

WT5810

  • Phase Locked Loop (PLL) synthesis operation
  • 16 selectable channel frequencies
  • TOA space diversity technology
  • Double super-heterodyne receiving system
  • Auto mixing input function
  • Squelch function (carrier, noise, tone)
  • Usable frequencies scanning and vacant channel search function
  • Compact portable design
  • Compander circuitry for minimizing ambient noise
  • Rod antenna × 2
  • Balanced output (XLR connector) and phone jack output
  • Low-battery indicator (wireless microphone's battery voltage becomes low)
  • Warranty: 1 Year
CH38 CH70 UHF
List Ex VAT: £450.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS



WM5325 Beltpack



Modulation

Frequency modulation

Frequency Range

576 - 932 MHz, UHF

Selectable Channels

 64 channels

RF Carrier Power

 Under 50 mW

Tone Frequency

 32.768 kHz

 Modulation System

 PLL synthesizer

 Maximum Input Level

 -14dB to -29dB*1 (Audio level control: Min. to Max.)

 Maximum Deviation

 ±40 kHz

 Battery

 LR6 (AA)

 Battery Life

 Approx 10 hours (alkaline)

 Indicator

 Power/Battery lamps

 Antenna

 Built-in type

 Operating Temperature

 –10°C to +50°C

 Finish

 Resin, rubber coating

 Dimensions

 62 (W) × 102.5 (H) × 23 (D) mm (2.44" × 4.04" × 0.91")

 Weight

 90 g (with battery)

 Accessory

 Neck Strap x 1, Screw driver × 1, Storage case × 1

WH4000H Headset Microphone



 Type

Electret condenser type

Directivity

Unidirectional

Sensitivity

–66dB ±3dB (0dB = 1V/0.1 Pa, 1kHz)

Maximum Input Level

120 dB SPL

Cable Length

 1.3 m (4.27 ft)

Terminal

ø3.5mm (ø0.14") mini plug

Finish

Frame: Stainless, black (silicon rubber)
Gooseneck: Lron, chrome-plated, black (shrink tube)

Weight

50 g (0.11 lb) (cable included)

WT5810 Receiver



Power Requirement

AC mains (supplied AC-DC adapter must be used)

Power Consumption

130 mA (12 V DC)

Receiving Frequency

576–865 MHz*, UHF

Channel Selectable

16 CH

Receiving System

Double Super-heterodyne

Diversity System

Space diversity

Mixing Output

MIC: –60 dB*2, 600Ω, balanced, XLR-3-31 type connector
LINE: –20 dB*2, 600Ω, unbalanced, phone jack

Mixing Input

–20 dB*2, 10 kΩ, unbalanced, phone jack

Antenna

Rod antenna

Receiving Sensitivity

Over 90 dB, S/N ratio (20 dBμV input, 40 kHz deviation)

Squelch Sensitivity

18–40 dBμV variable

Squelch System

Using together of noise SQ, carrier SQ and tone SQ

Tone Frequency

32.768 kHz

Indicator

ANT A/B, Audio (peak), battery alarm

Channel Check

Usable frequencies scanning

S/N Ratio

Over 104dB (A-weight, unbalanced output)

Harmonic Distortion

Under 1% (typical)

Frequency Response

100 – 15,000 Hz, ±3 dB

Operating Temperature

–10°C to +50°C (14°F to 122°F)

Finish

Resin, black

Dimensions

206(W) × 40.6(H) × 152.7(D) mm (8.11" × 1.60" × 6.01")

Weight

590 g (1.30 lb)
