RCF UP 2321

RCF UP 2321

The RCF UP 2321 is a 320 W power amplifier with outputs for both 70 / 100 volt line constant voltage distributed sound systems or low impedance (min. 4 Ω) music systems.

The RCF UP2321 slave amp has a mic / line main input as well as an auxiliary input for sound sources such as a CD player or radio tuner.

This class D power amp with switching power supply offers reduced weight combined with excellent sound quality and wide bandwidth.

  • Full digital technology Power Amplifier 320 W RMS
  • Main input on either removable connector or XLR or RJ 45
  • Main Input can have priority over the Aux Input
  • Main Input has a presence control command
  • Main Input has a high-pass filter useful for improving speech intelligibility
  • Aux Input for music sources using RCA connector
  • Aux input with volume and tone controls
  • 100 V - 70 V and 4 Ohm outputs
  • Front panel LEDs indicate the current status: (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)
  • Rack mounting ears supplied
100V 4ohms
List Ex VAT: £695.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

OUTPUT POWER 320 W
Frequency response (± 3 dB) 50 Hz ÷ 13.5 kHz
Frequency response (± 6 dB)

30 Hz ÷ 20 kHz
Signal / noise ratio

Mic (1 ÷ 4): 60 dB

Aux: < 0,3 % (at 1 kHz, nominal power)
AUX Input tone controls

± 8 dB @ 80 Hz (bass); ± 8 dB @ 13 kHz
Main Input presence control


+ 10 dB @ 2,15 kHz
Main input High-pass filter

150Hz
Input Sensitivity (balanced)

- 56 dBu (max - 25 dBu) Low level Micro
- 26 dBu (max 0 dBu) Low level Line
- 7 dBu (max + 19 dBu) High level
AUX Input Sensitivity

Adjustable – 4 ÷ + 15 dBu (max +22 dBu)

Input Impedance

 10 kΩ (Main Input); 20 kΩ (Aux Input);
Phantom power

32 V / 18 mA
Loudspeaker Outputs min

4 Ω (Low impedance)

70 V (16Ω)/100 V (31Ω)
Operating voltage

220÷240 / 110÷120 V ~ 50 / 60 Hz
Dimensions (WxHxD) 444 x 127 x 345 mm
Weight 6.2kg

DOWNLOADS

RCF UP 2321 Datasheet

Related Products

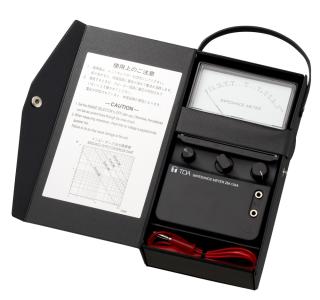

TOA ZM-104A
