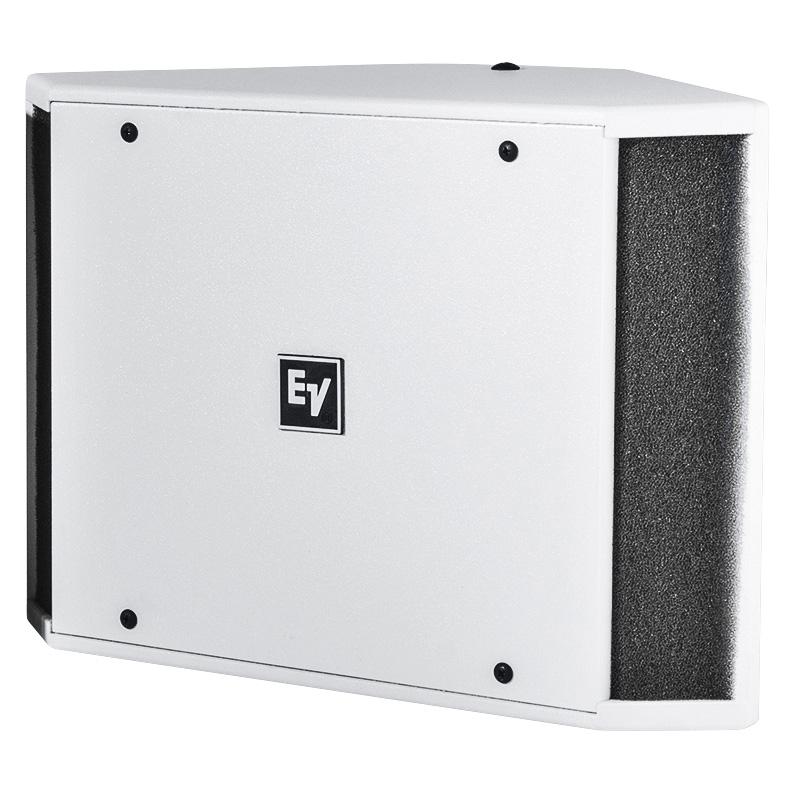

Electro-Voice EViD-S12.1

The Electro-Voice EVID-S12.1 12 inch subwoofer is a compact and high performance sub for background and foreground music.

The 12.1 subwoofer’s slot-loaded design allows for flexible mounting and placement while delivering the smoothest bass response possible.

Supplied and priced individually.

  • High-excursion 12" woofer with dual voice coil to accommodate L & R channels
  • 200 W power handling provides for 127 dB maximum SPL (133 dB Peak)
  • Crossover input panel included

8ohms
List Ex VAT: £505.70
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Range (-10 dB) 40Hz - 140kHz
Max. SPL/1m (calc)² 127dB
LF Transducer 12 inch (305 mm)
Connector Type Spring loaded
Available Color Black or White
Height 16.26" (413mm)
Width 22.99" (584mm)
Depth 11.93" (303mm)
Weight Net 39.24lbs (17.8kg)
Shipping Weight 49.38lbs (22.4kg)
Nominal Impedance 8Ω
Power Handling (Continuous / Peak) 200W/800W
Sensitivity (LF/MF/HF) 104dB

DOWNLOADS

Electrovoice EV EViD-S12.1 Datasheet
