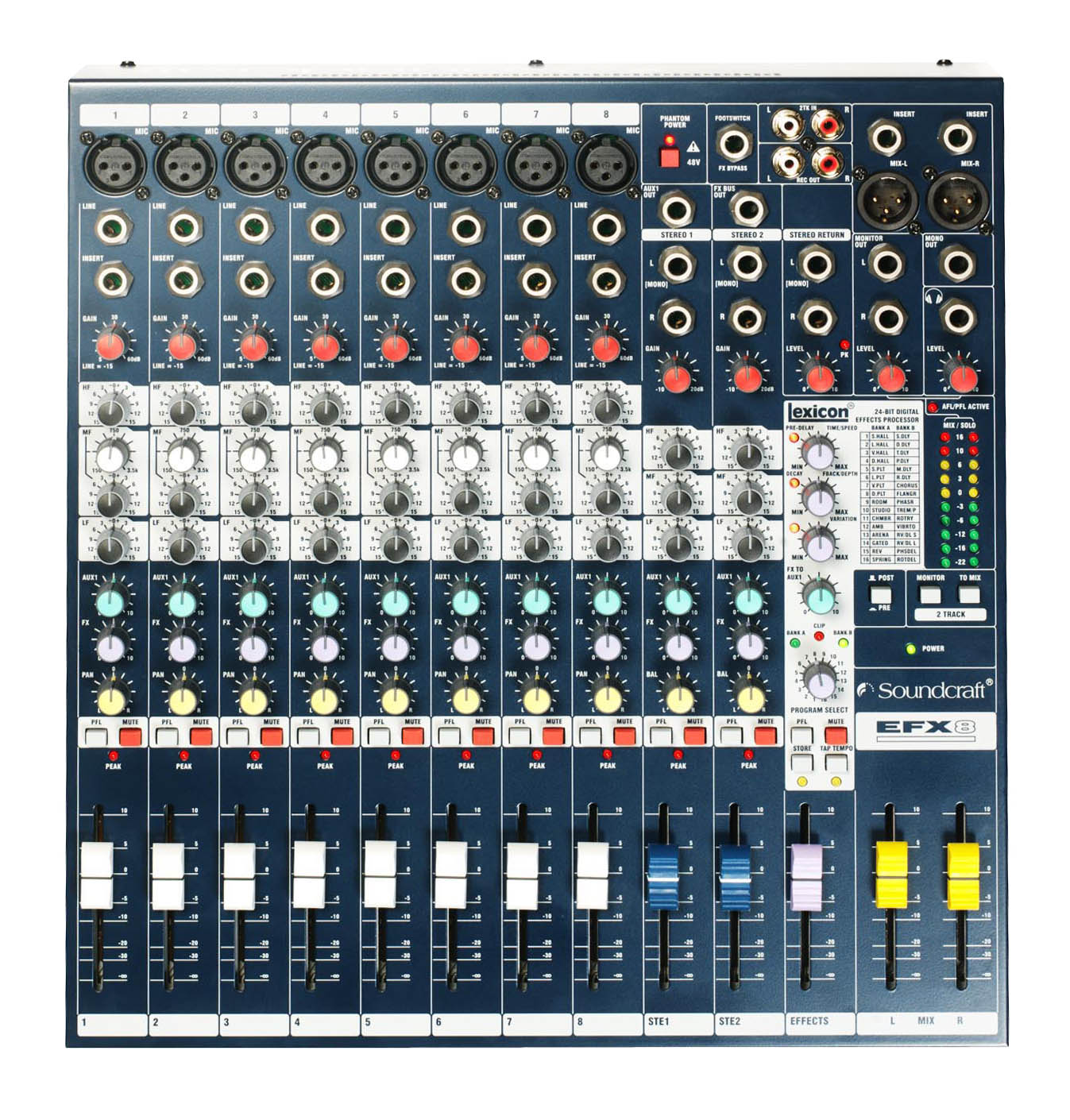

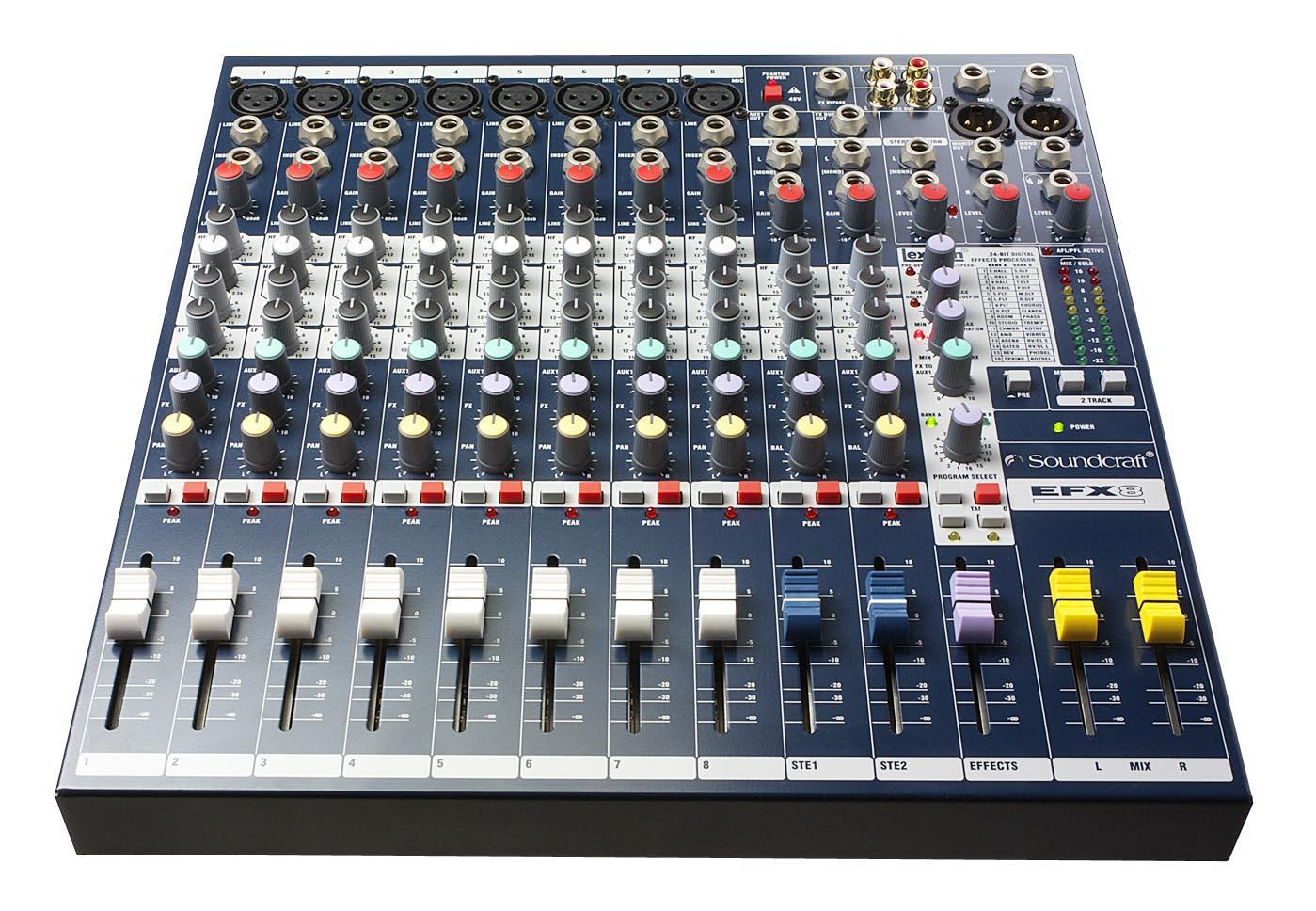

Soundcraft EFX8
Click to expand

Soundcraft EFX8

The Soundcraft EFX8 is a superb low cost audio mixer featuring 8 mono mic / line inputs and 2 stereo line input channels.

The Soundcraft EFX™ audio mixers combine all the features of the popular Soundcraft EPM™ mixer with a built-in 24-bit, digital Lexicon® effects processor,

The AudioDNA® processor in this mixer is also featured in many of the Digitech® and Lexicon outboard equipment including the highly respected Lexicon MX400 processor. With over 35 years experience, the Lexicon name is synonymous with the best reverb and processing in the business, ensuring the finest quality effects not usually found in a console at this price level.

The Effects section fits neatly into the mixers compact framework with an effects send on each channel. There are 32 effects to choose from with a tap tempo function, 3 effects parameter controls and a user effects setting store facility. An effects channel level clip LED and Mute function gives the user even more flexibility.

Lexicon Effects Section Key Features

  • Built-in 24 bit Lexicon digital effects processor
  • 32 FX settings
  • 3 Parameter encoders
  • Tap Tempo
  • FX setting store function
  • 1 FX send on each channel
  • FX clip LED and mute function
  • Custom Karaoke preset

The Soundcraft EFX range of mixers benefits from high build quality and excellent audio performance along with simple controls presented in a clear and logical layout for ease of use.

Each mono input has its own 3 band EQ and professional  48 volt phantom power caters for all kinds of condenser microphones. Stereo channels each have 3 band EQ.

The signal monitoring PEAK led uses multipoint signal take-offs to watch for overload in several parts of the channel strip, and the brightness of the led lamps intensifies as the signal approaches the peak point.

60mm high quality faders enable smooth and accurate channel control.

The monitor output and headphone output work in parallel so that performers can still listen on phones while an engineer is listening on studio monitors.

The Soundcraft EFX8 is ideal for live music performances, recording, churches and multi-speaker installations.

Rack mountable with optional kit.

Other Features:

  • 8+2 channel frame sizes
  • Built-in 24 bit Lexicon digital effects processor
  • 32 FX settings
  • Tap Tempo and FX setting store function
  • 1 FX send on each channel
  • 1 configurable auxiliary bus
  • XLR-type and ¼” metal jack connector sockets
  • RCA phono stereo playback inputs and record outputs
  • 3-band EQ with a swept mid on mono inputs
  • 3-band EQ on stereo inputs
  • TRS insert sockets and inserts on all mono inputs
  • Ten-segment LED output metering
  • Intuitive and comprehensive solo system
  • Headphone output
  • Easily rack mountable
  • Custom Karaoke preset
  • Warranty: 3 Years
List Ex VAT: £532.50
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response

Mic / Line Input to any Output: +/-1.5dB, 20Hz – 20kHz

T.H.D.

Mic Sensitivity -30dBu, +14dBu @ Mix output: < 0.02% @ 1kHz

Noise

Mic Input E.I.N. (maximum gain) -127dBu (150Ω source)
Aux, Mix and Masters (@ 0dB, faders down): < -84dBu

Crosstalk
(@ 1kHz)

Channel Mute: > 90dB
Fader Cut-off (rel +10 mark): 90dB
Aux Send Pots Offness: > 90dB

EQ (Mono inputs)

HF: 12kHz, +/-15dB
MF (swept): 150Hz – 3.5kHz, +/-15dB
LF: 80Hz, +/-15dB
Q: 1.5

EQ (Stereo inputs)

HF: 12kHz, +/-15dB
MF: (EFX Only) 720Hz, +/-15dB
LF: 80Hz, +/-15dB

Power Consumption

Less than 35W

Input & Output Levels

Mic/Line Input Max Level: +15dBu max.
Line Input Max Level: +30dBu max.
Stereo Input Max Level: +30dBu max.
Mix Output Max Level: +20dBu max.
Headphones (@200Ω): 300mW

Input & Output Impedances

Mic Input: 2kΩ
Line Input: 10kΩ
Stereo Input: 65kΩ (stereo), 35kΩ (mono)
Outputs: 150Ω (balanced), 75Ω (unbalanced)
