Cloud Electronics CX261
Click to expand

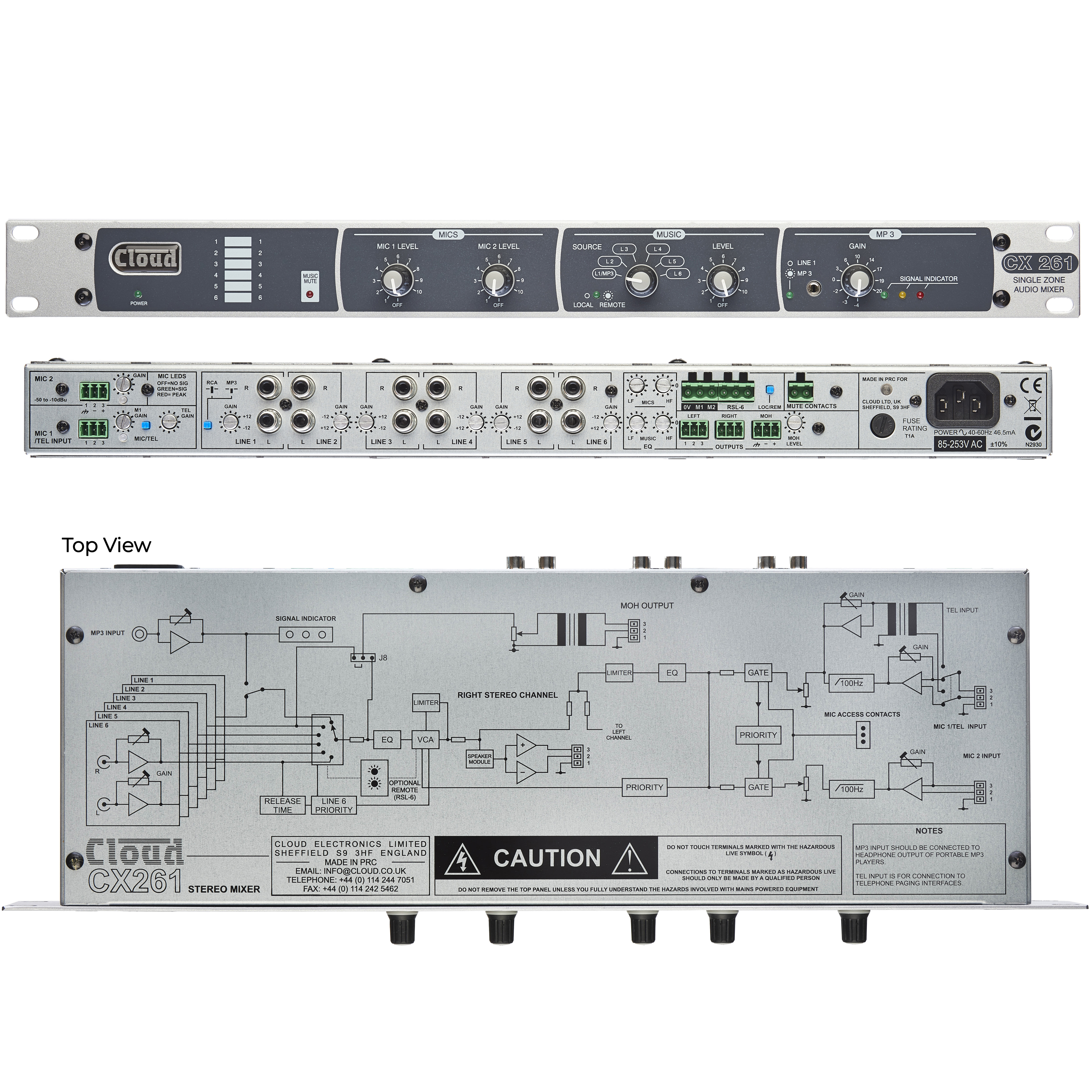

Cloud Electronics CX261

The Cloud Electronics CX261 single zone audio mixer has six line level inputs & 2 microphone inputs for simple control of high quality background music and a flexible range of paging options.

The 1U, rack mounted CX261 mixer is ideal for sound systems for offices, hotels, bars, restaurants and other leisure premises.

  • Six (unbalanced) stereo line inputs with individual gain control
  • Two electronically-balanced mic inputs
  • Front panel control of music source/level and mic level
  • Front panel input (3.5mm jack) for MP3 player
  • HF & LF EQ adjustment for music and mic inputs
  • MIC 1 input configurable as transformer-isolated line input
  • MIC 1 priority over MIC 2 (selectable)
  • Short-to-ground access connector
  • Selectable LINE 6 priority with choice of release times
  • Music mute control input (NO or NC)
  • Compatible with standard Cloud remote control panels
  • Electronically-balanced stereo main output
  • Transformer-isolated mono auxiliary output
  • Aux output source selection (internal jumper)
  • Optional Bose EQ cards available
  • 1U 19'' rack mounting unit
multi-ch 1U
List Ex VAT: £425.00
Log in for Trade Prices





0.775 V (0 dBu), ±12 dB

Input Gain Control

24 dB range

Input Impedance

48 kohms

Equalisation LF

±10 dB @ 50 Hz, HF: ±10 dB @ 10 kHz



Sensitivity range

-20 dBu to +4 dBu

Gain adjustment

24 dB



Gain Range

40 dB


-10 dBu to -50 dBu

Input Impedance

>2 kohms (balanced)

Common Mode Rejection

1 kHz, >70 dB


LF: ±10 dB @ 100 Hz, HF: ±10 dB @ 5 kHz




-20 dBu to + 4 dBu


>20 dB



Nominal Output Level

0 dBu (MAIN); -6 dBu (AUX/MOH)

Minimum Load Impedance

1.2 kohms (MAIN); 600 ohms (AUX/MOH)

Maximum Output Level

+20 dBu (MAIN); 0 dBu (AUX/MOH)



Power Input

230 V ±10% (optional external 115/230 V transformer available)

Dimensions Net (w x h x d)

482 mm x 44 mm (1U) x 155 mm; 19” x 1.7” x 6.1”

Weight (Net)

2.15 kg / 4.82 lbs
