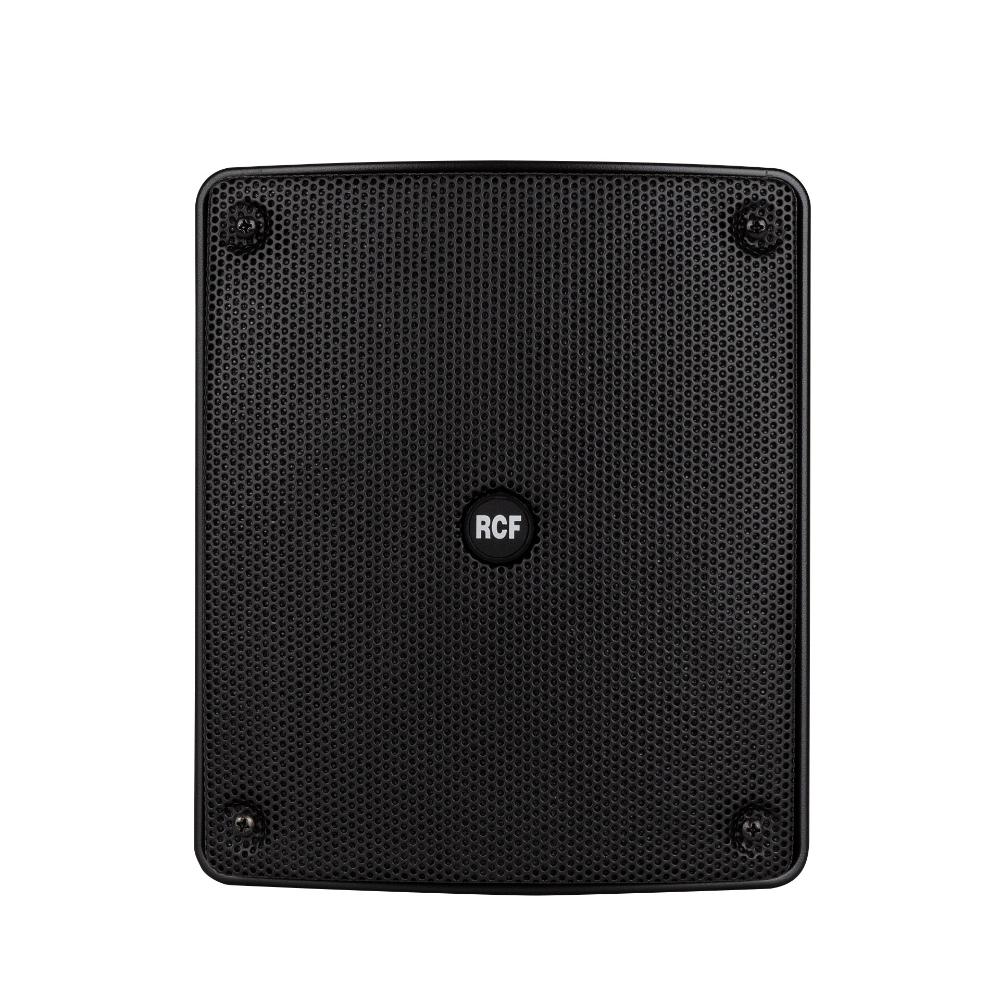

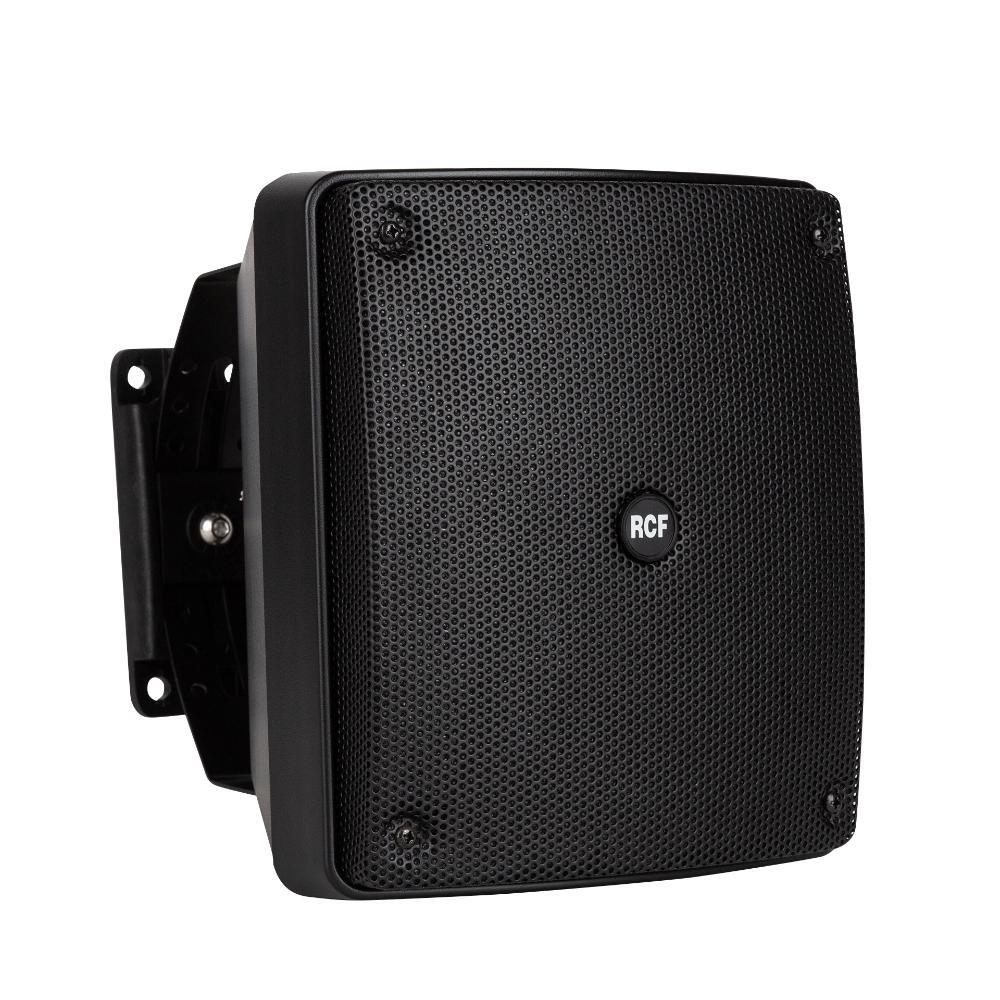

The RCF MQ80P is a compact 2-way horn-loaded sound projector speaker system offering high intelligibility and high efficiency for clear voice and music reproduction.

Suitable for Public Address PA sound systems and background / foreground music systems.

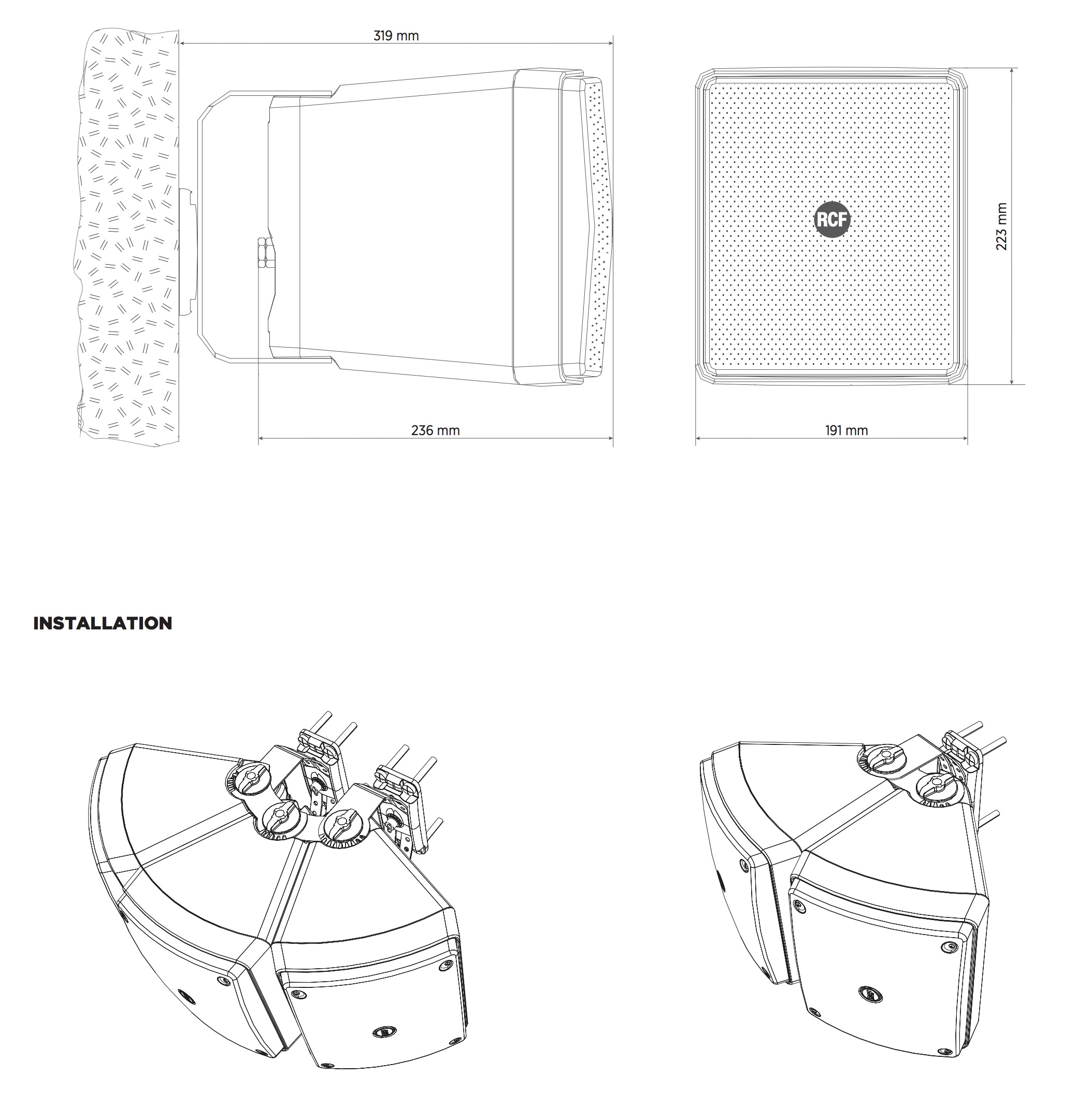

90° X 60°constant directivity and simple accessories enable it to mounted in clusters of 2 or more pieces for a wide and smooth sound coverage from minimal installation points.

The MQ80P is water resistant, rated IP55 and suitable for use both indoors and outdoors.

The woofer is a high-excursion, PP coated paper cone – rubber surround design mounted in a tuned enclosure (the port can be sealed for weatherproofing). The tweeter is a horn-loaded compression driver with phase plug, for crisp intelligible voice reproduction even in noisy environments.

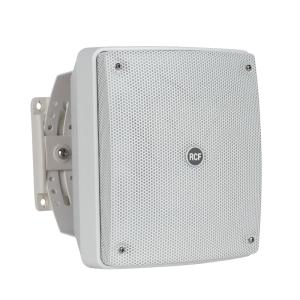

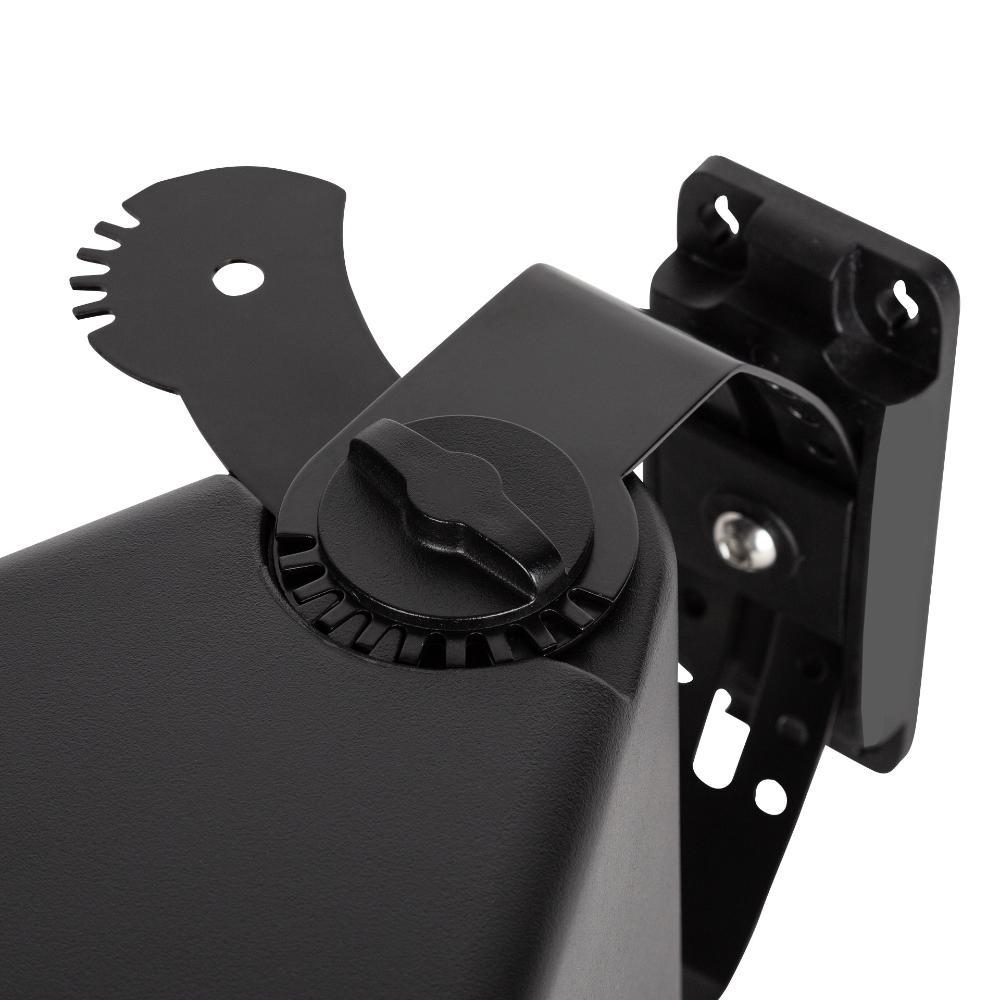

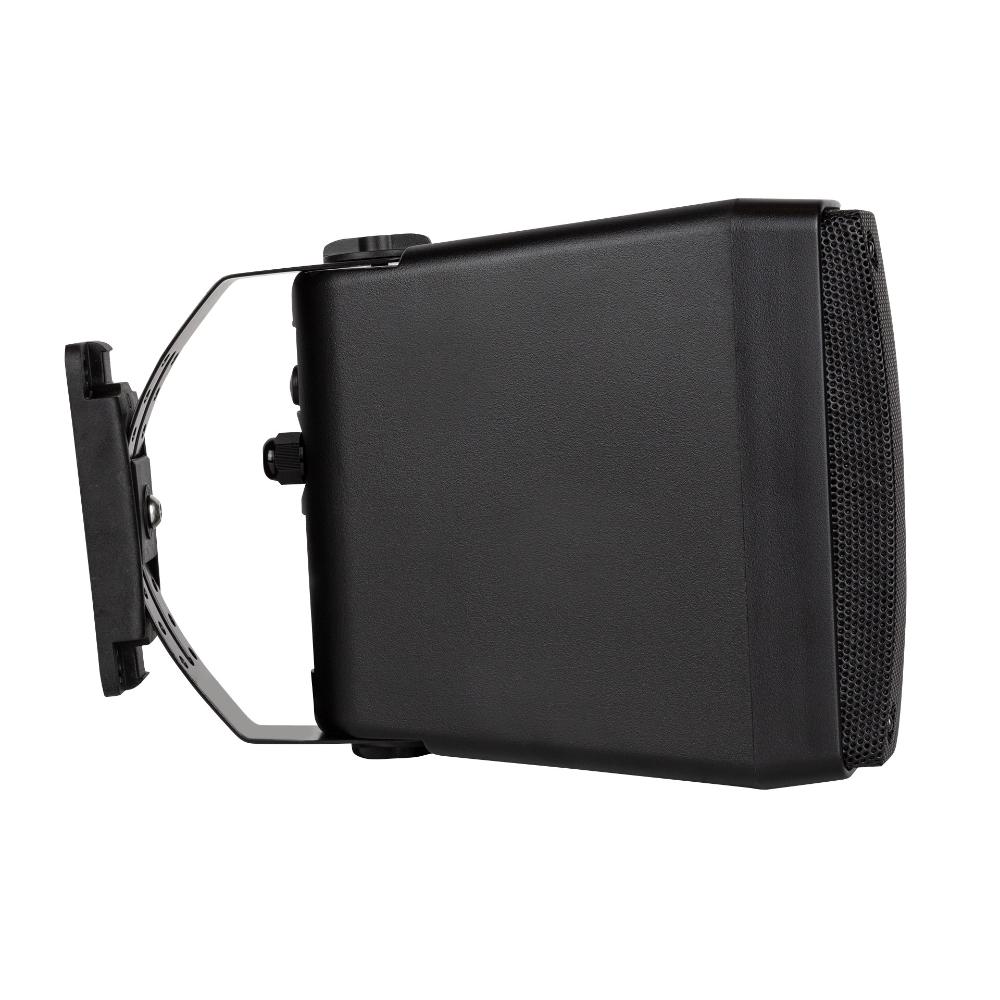

The unique mounting bracket has several fixing points for simple but versatile installation. Connections are made by a multi-pole cable and the wattage taps and voltage adjustments / 8-ohm selector are altered by rotary switch, accessible under a sealed cover.

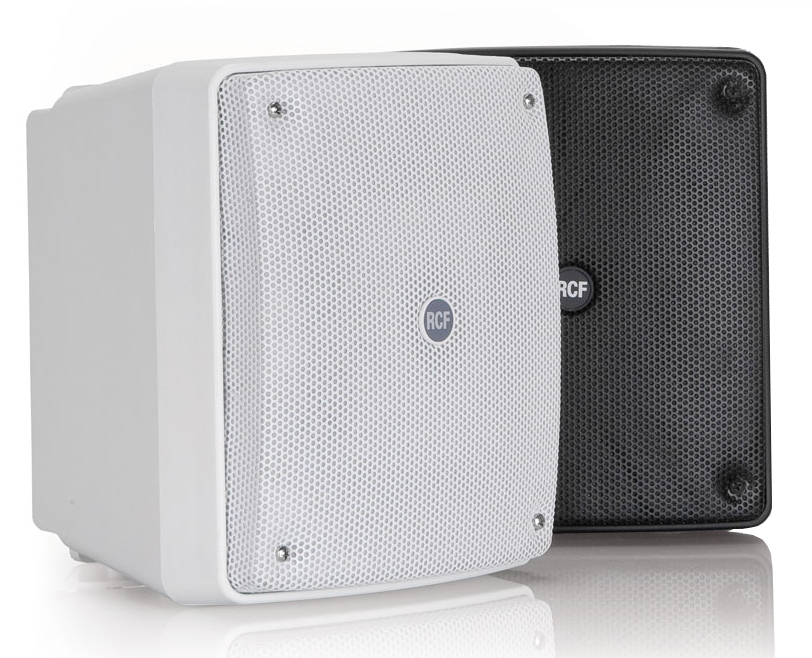

The enclosure is constructed of high density UV resistant self-extinguishing polystyrene with robust steel grill and it is available in black or white.

• 5” horn-loaded woofer
• 1” horn-loaded compression driver
• 60 / 120 Watt (RMS/Music Power)
• 100 Hz ÷ 20 kHz
• 114 dB (1 m / POWER MAX) max. SPL
• Multiple 100V transformer tappings
• Power selection rotary switch
• Crossover frequency: 3000 Hz Crossover: Notch/6 dB/oct
• Low-Z speaker connections
• Easy to install
• Simple power settings
