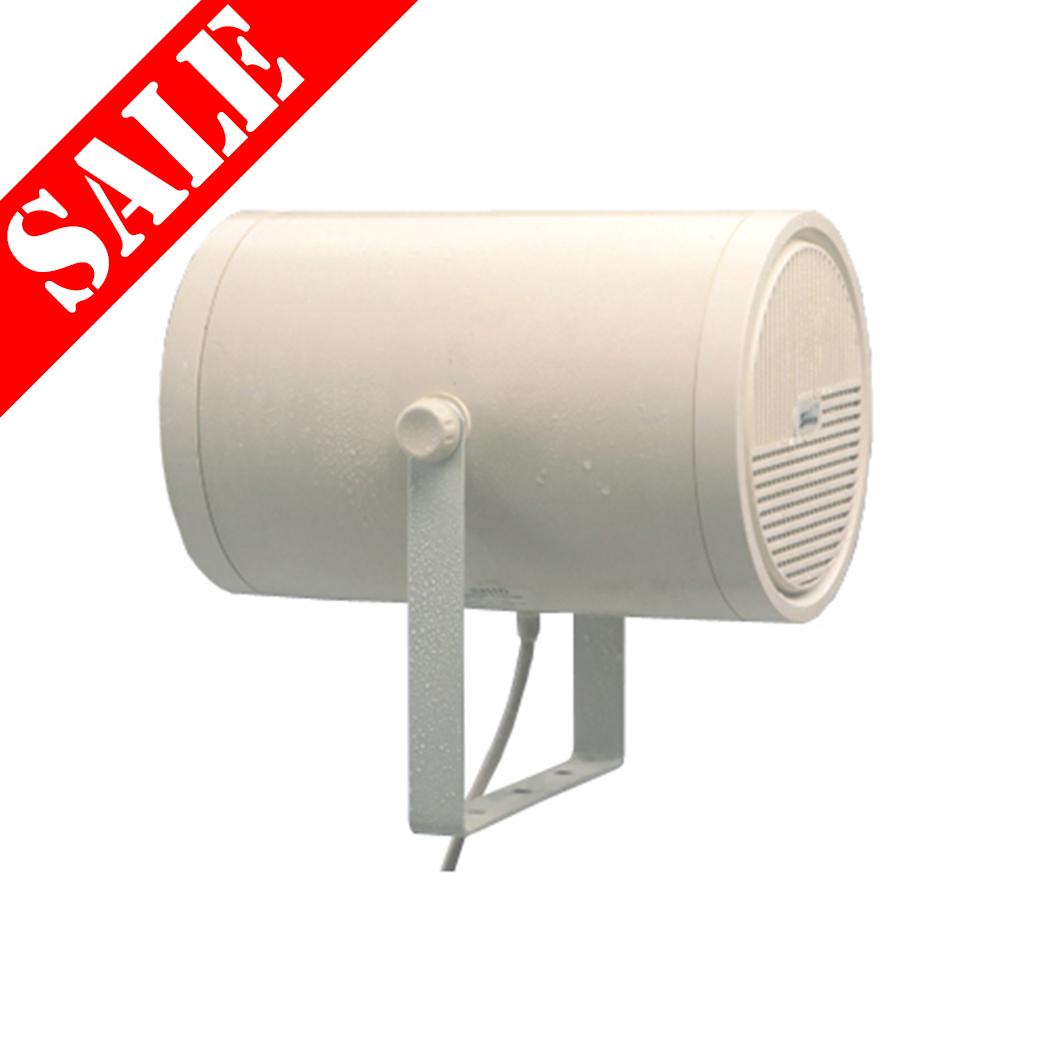

CES Audio XMR-520PL

The CES Audio XMR-520PL is a dual impedance sound projector loudspeaker ideal for background music and public address systems where a controlled directional sound projection is required.

  • Designed to give controlled directional sound characteristics.
  • 20 watt 100 & 70 volt line or 8Ω. Tappings via 7-core cable.
  • Water resistant, IP rated to IEC529 IP55.
  • Wide bandwidth alternative to horn speakers - ideal for music and speech applications.
  • Compact design high impact ABS housing UV protected.
  • Epoxy coated steel bracket, stainless steel exterior hardware.
  • Finished in Ivory (RAL 1013).
100V IPxx 8ohms
List Ex VAT: £91.72
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 20W
Impedance 250Ω, 500Ω, 1kΩ, 2kΩ & 4kΩ
Power Taps @ 100V 20W, 10W, 5W, 2.5W & 8Ω
Power Taps @ 70.7V 20W, 10W, 5W, 2.5W, 1.25W & 8Ω
SPL (1W/1m) 98dB
Max SPL (rated/1m) 111dB
Frequency Range (-10dB) 130HZ - 20KHZ
Dispersion 1kHz/4kHz 130º / 30º
Power Selection Method 7 core cable
Material Housing: High impact ABS with UV protection
Colour Ivory (RAL 1013)
Dimensions mm 184 (7.24) Dia. X 200 (7.87) L mm. (in.)
Weight (kg) 2.2
Mounting U type steel bracket
