Cloud Electronics CX462
Click to expand

Cloud Electronics CX462

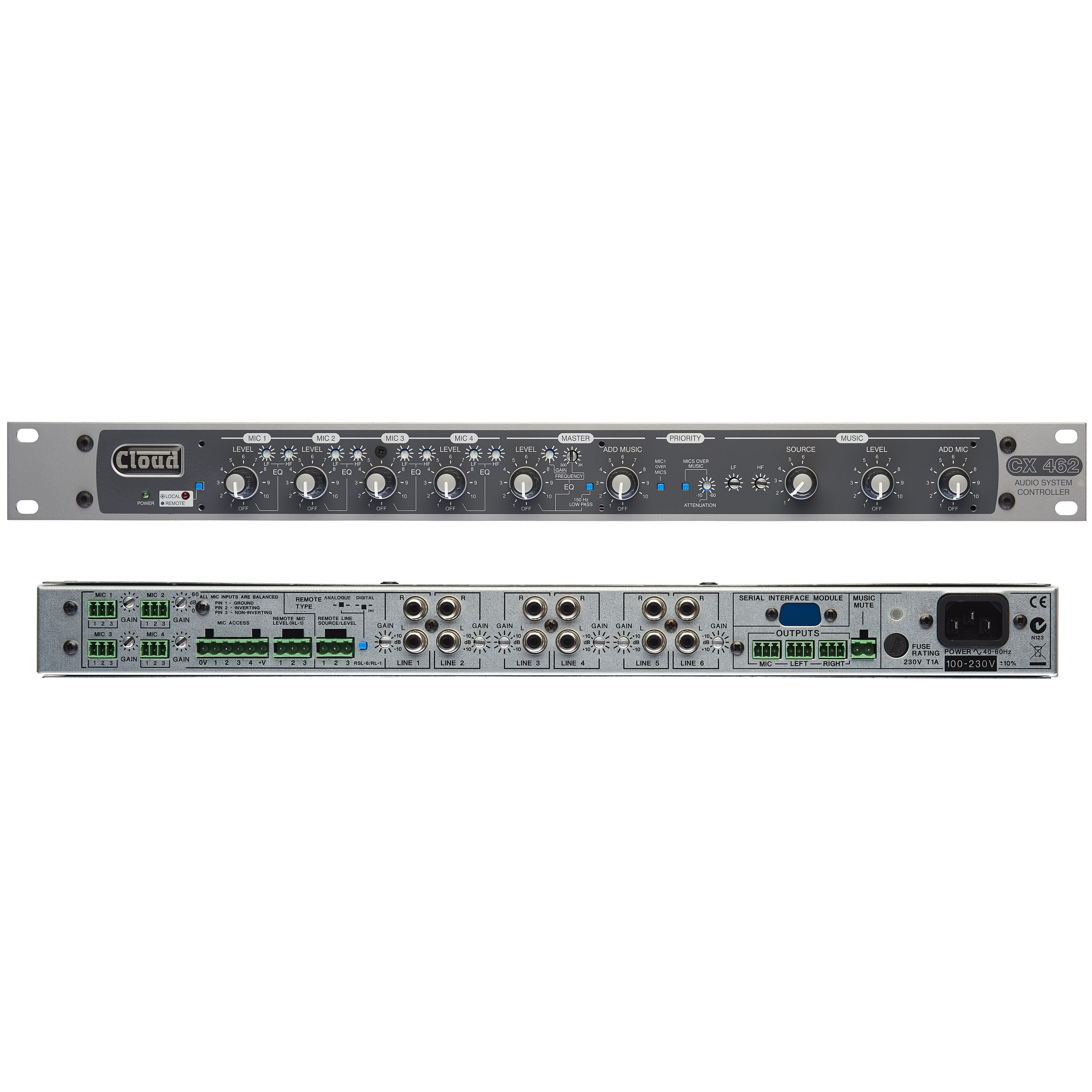

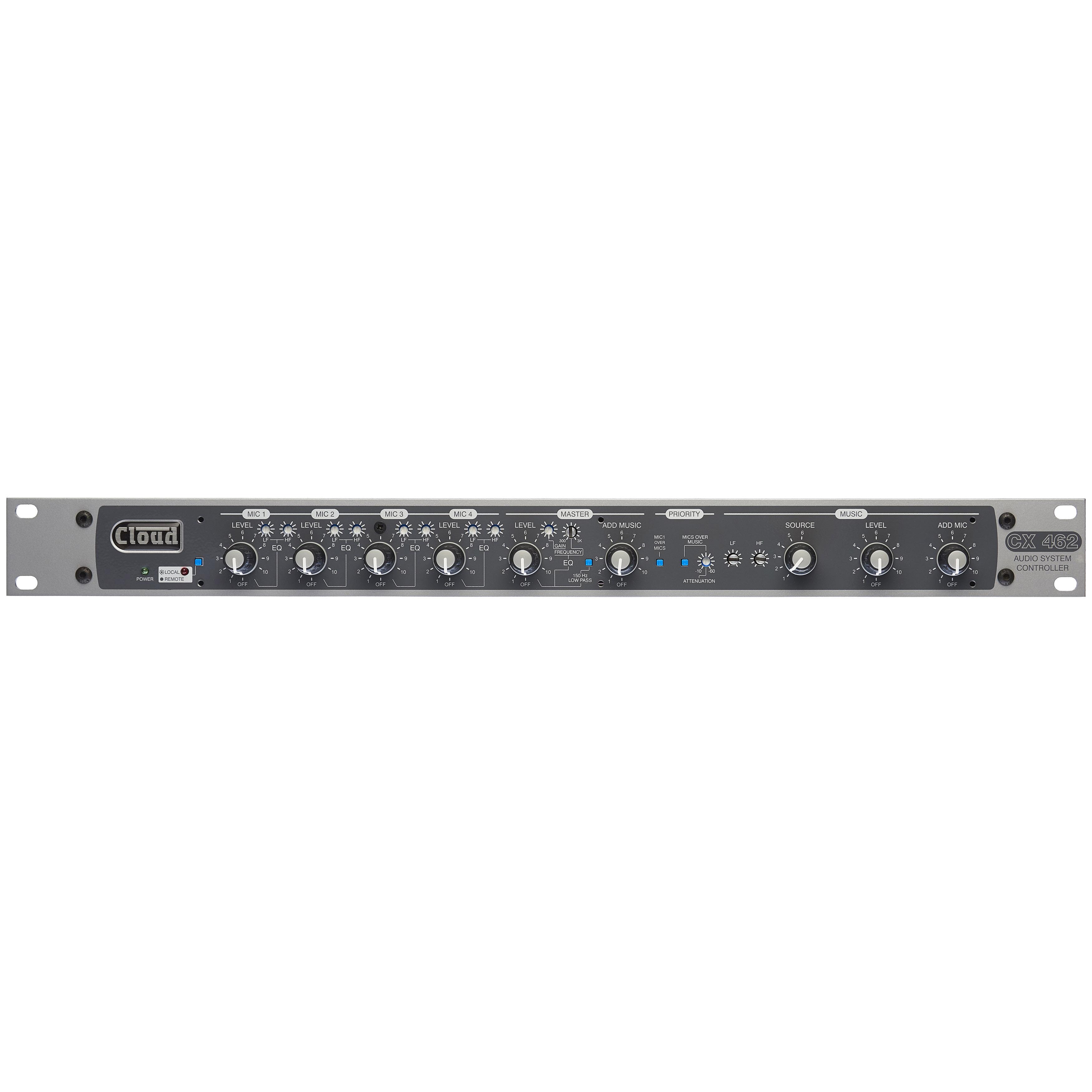

The Cloud Electronics CX462 stereo audio mixer with independent music and microphone sections featuring 6 line inputs with preset gain controls in the music section and 4 microphone inputs in the mic section.

Ideal for AV presentations, churches and other places of worship as well as hotels, shops, bars and leisure venues.

  • Independent music and microphone sections
  • 6 line inputs with preset gain controls (music section)
  • Line 6 can be configured for priority (music section)
  • Music level and source selection with remote control
  • HF & LF EQ (music section)
  • Mic signal routable assignable to music section
  • 4 Mic inputs with preset gain
  • Individual HF & LF controls (mic section)
  • Single parametric EQ (mic section)
  • 150 Hz High pass filter
  • Selectable priority for Mic 1
  • Optional CDI-S100 serial interface (RS232)
  • Optional EQ modules


List Ex VAT: £570.00
Log in for Trade Prices





100 mV (-17.8 dBu) to 1.5 V (+6 dBu)

Input Gain Control

24 dB range

Input Impedance

48 kohms


LF: ±10 dB @ 50 Hz, HF: ±10 dB @ 10 kHz


 >20 dB



Gain Range

10 dB to 60 dB

Input Impedance

>2 kohms (balanced)

Common Mode Rejection

1 kHz, >70 dB


>20 dB


LF: ±10 dB @ 150 Hz, HF: ±10 dB @ 5 kHz




0 dBu (775mV) balanced

Minimum Load Impedance

600 ohms

Maximum Output Level

+20 dBu



Power Input

 230 V / 115 V ±10%

Dimensions Net (w x h x d)

482 mm x 44 mm (1U) x 152.5 mm

Weight (Net)

2.5 kg
