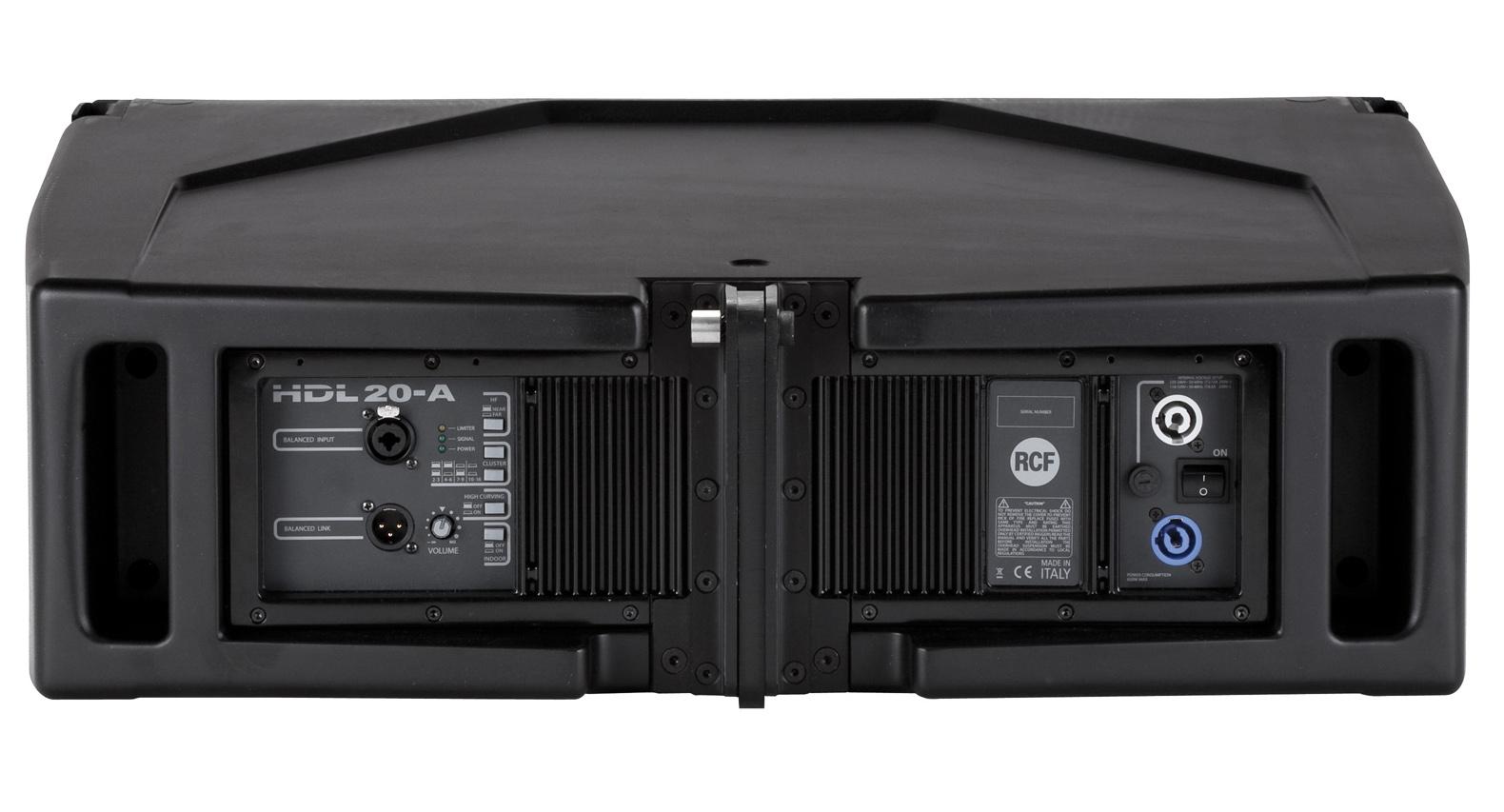

RCF HDL 20-A

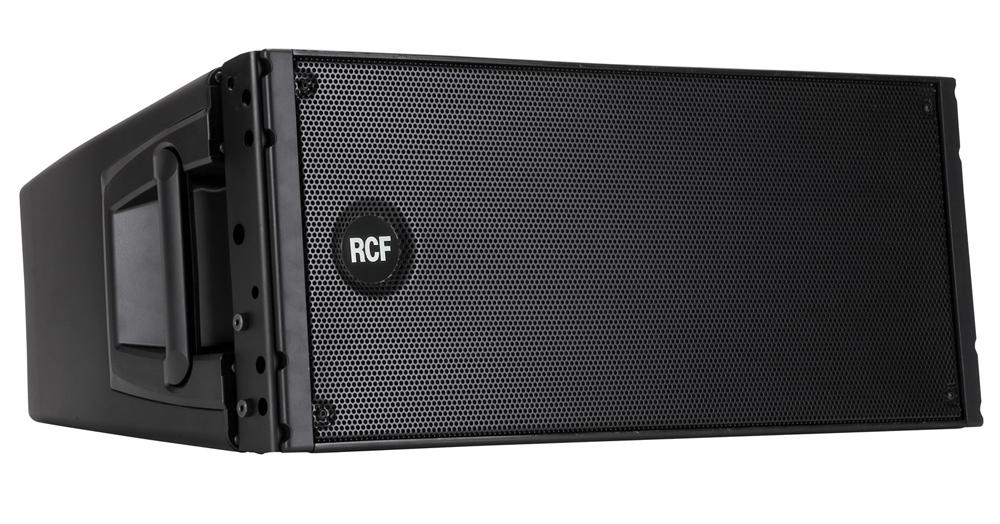

The RCF HDL 20-A is an active line array module loudspeaker with a carefully designed composite cabinet, 2 x 10" woofers and a 3" titanium compresion driver for excellent intelligibility over distance.

The built in digital amplifier supplies 700 watts RMS output power: split into 200 watts for the High Frequency and 500 watts for low frequency.

The built in Class-D amp keeps the weight to a minimum and features a solid machined aluminium structure for stability during transport and fan free heat dissipation.

The RCF HDL20A active line array speaker is ideal for live sound reinforcement & installed sound systems in llive music venues as well as theatre sound systems and clubs.

  • 100 x 15, Wide dispersion constant directivity angle line array module
  • 1400 Watt Peak power - 700 Watt RMS
  • 135 dB max SPL
  • 55 Hz 20 kHz frequency response
  • 2 x 10" Woofers
  • 1 x 3" Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced
8ohms
List Ex VAT: £2,508.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response (-10dB)

55Hz – 20kHz

Max SPL @ 1m

135dB

Horizontal Coverage Angle

100°

Vertical Coverage Angle

15°

Transducers

Compression Driver: 2.0”, 3.0” voice coil
Woofer: 2 x 10”, 2.5” voice coil

Input Signal

Balanced / Unbalanced

Input / Output Connectors

XLR

Input Sensitivity

-2dBu/ +4dBu

Crossover Frequencies

800Hz

Protection

Thermal, RMS

Limiter

Soft Limiter

Controls

Cluster, HF, High Curving, Indoor

Total Power

1400W Peak, 700W RMS

High Frequency Power

400W Peak, 200 W Peak

Low Frequency Power

1000W Peak, 500W RMS

Cooling

Convection

Construction

PP Cabinet, Steel Grille

Colour

Black

Height x Width x Depth

294mm x 705mm x 445mm
11.57” x 27.76” x 17.52”

Weight

30.2kg / 66.58lbs

DOWNLOADS

RCF HDL 20-A Datasheet
