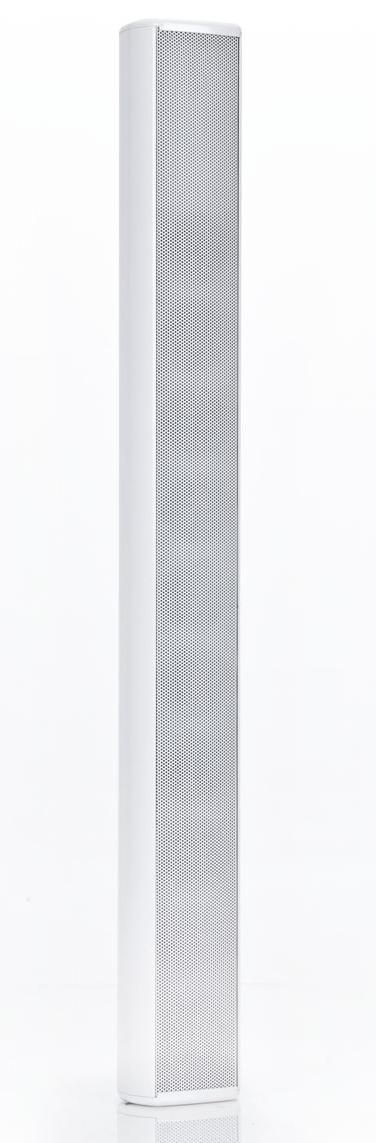

RCF CS3082

The RCF CS3082 is a slimline column loudspeaker ideal for speech reproduction and offering 30 watts power output on 70v / 100 volt line distributed sound systems as well as 16 ohm low impedance sound systems.

The aluminium column contains 8 x 2" extended range speakers and 2 x 1" tweeter.

Finished in white and supplied with fixed position L shaped wall mounting brackets. Swivel & tilt brackets are available as an optional extra - see the related products tab for links to these.

The RCF CS3082 column speaker is ideal for use in church sound systems as well as auditoriums, halls, and other houses of worship.

  • Ideal for speech reproduction, shape designed to enable corner installation
  • Music power/RMS: 60/30W
  • Eight 50 mm (2") diameter extended range speakers and two tweeter 25 mm (1")
  • Body in extruded aluminium bake-painted RAL 9016 White and front metal grille RAL 9016 White, includes accessory for wall mounting
  • Built-in multi-tapped transformer (30 - 20 - 10 W) for 100 V constant voltage connection
  • 16-ohm input that can be selected on the terminal block
  • Audio connection on screw terminal block
100V 16ohms
List Ex VAT: £191.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Speakers 8 x 2” full range + 2 x 1” tweeter
100 volt transformer power taps 30-20-10 W
Impedance  16 ohm
RMS power  30 W
Peak power 60 W
SPL 1W/1M 90 dB
Max SPL @ 1m 111dB
Frequency response 180 Hz – 20 kHz
Dispersion at 1 kHz Hor/Ver : 180°/ 30°
Material

Body: aluminium
Grille: Metal

Colour White, RAL9016
Dimensions H x W x D (mm) 670 x 76 x 65
Weight (kg)  2.7
