Bosch LBC 3484/00

Bosch LBC 3484/00

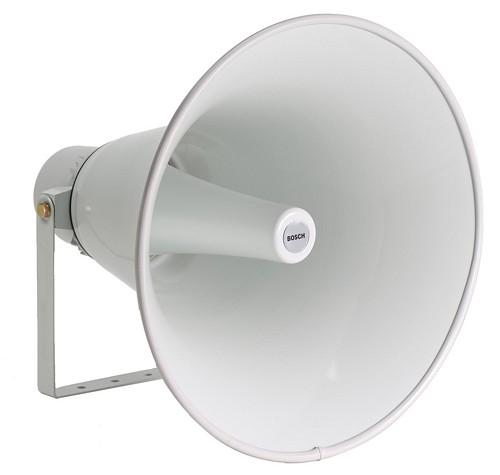

The Bosch LBC 3484/00 is an aluminium, circular horn loudspeaker.

The high efficiency design and large flare measuring 490 mm (19.5 in) in diameter provide excellent speech reproduction and sound distribution for a variety of outdoor applications.

The LBC3484/00 is water and dust protected to IP65 -  ideal for sports grounds, parks, exhibitions, factories and swimming pools and fully compliant with all voice alarm standards.



  • High efficiency driver
  • Excellent speech reproduction
  • Provision for inside mounting of the optional line/loudspeaker supervision board
  • Water resistant and dust protected to IP 65
  • BS 5839‑8 and EN 60849 compliant
  • Stainless steel U bracket



100V IPxx Evac
List Ex VAT: £163.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Maximum power

75 W

Rated power

50 / 25 / 12.5 W

Sound pressure levelat 50 W / 1 W (1 kHz, 1 m)

127 dB / 110 dB (SPL)

Effective frequency range (-10 dB)

350 Hz to 4 kHz

Opening angle at 1 kHz/4 kHz (-6 dB)

60° / 28°

Rated voltage

100 V

Rated impedance

200 ohm

Connector

Screw terminal block

Dimensions (L x Dmax)

499 x 490 mm (20 x 19.6 in)

Weight

6 kg (13.22 lb)

Color

Light grey (RAL 7035)

Cable diameter

6 mm to 12 mm(0.24 in to 0.47 in)



DOWNLOADS

Bosch LBC 3484/00 Datasheet
EC Declaration of Conformity: LBC 3484/00
