TOA SR-S4L

TOA SR-S4L

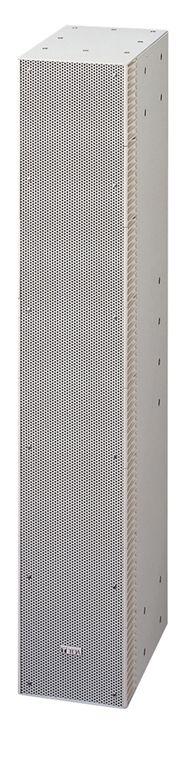

The TOA SR-S4L is a bass reflex design line aray loudspeaker with excellent directivity ideal for low impedance church sound systems. 200 watts RMS, 8 ohm.

The precise vertical control and facility to stack units together makes the TOA SRS4L perfect for houses of worship and other large open acoustically challenging spaces, enabling speech to be projected over long distances.

Finished in white.

Directivity: Horizontal: 90°, Vertical: 0°

Also available with a curved front for increased vertical dispersion (See SR-S4S in related produtcs), or in a water resistant version (see SR-S4LWP in related products).







8ohms
List Ex VAT: £1,099.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Enclosure

Bass-reflex type

Power Handling Capacity

Continuous program: 600W (single amp mode)
Low 240W, High 240W (biamp mode)

Rated Impedance

8Ω (single amp mode) / Low 8Ω, High 8Ω (biamp mode)

SPL (1W/1m)

94 dB

Frequency Range (-10dB)

70 – 20,000 Hz (when using optional Digital processor)

Directivity Angle

Horizontal: 90°, Vertical: 0° (within the range of speaker height)

Speaker component

Low frequency: 10cm (4") cone-type × 8
High frequency: 2.5cm (1") balanced dome-type × 24

Enclosure

MDF, white, paint

Front Grille

Punched stainless steel, white paint

Dimensions mm

160 (W) × 895 (H) × 255 (D)mm (6.30" × 35.24" × 10.04")

Weight (kg)

16kg

DOWNLOADS

TOA SR-S4 Array Brochure
