DNH HS-15EExIINT

DNH HS-15EExIINT

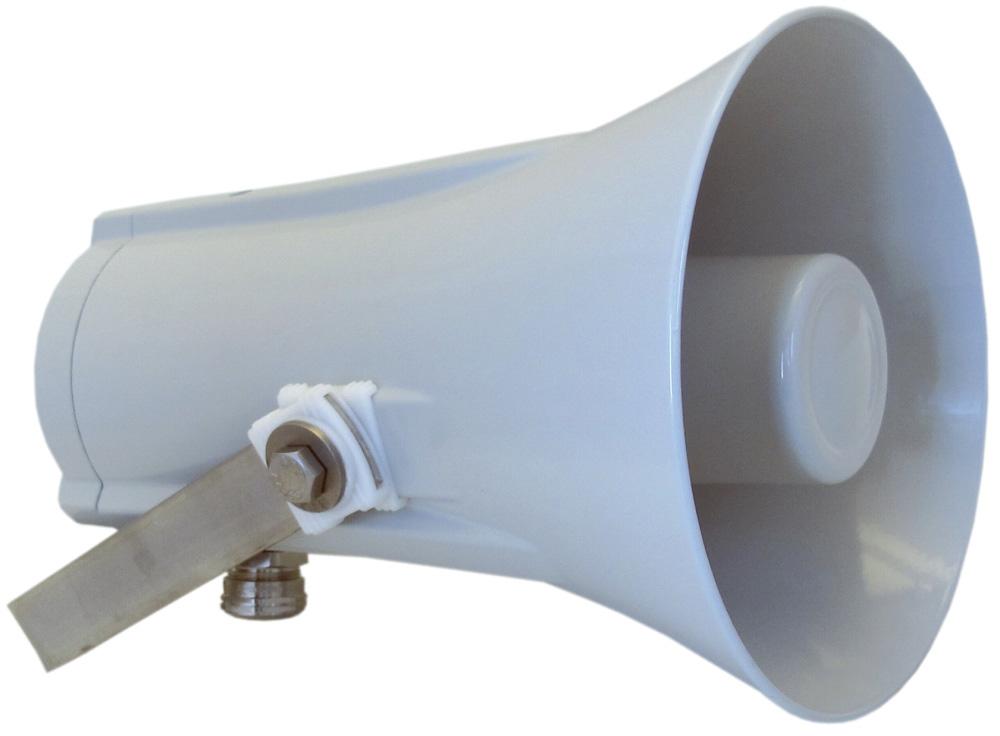

The DNH HS-15EExIINT is an explosion proof, 15 watt aluminium horn loudspeaker with two M20 blanking plugs as standard.

Ex certified - Suitable for 100 volt line public address sound systems in environments with a potentially explosive atmosphere.

  • Zone 2 Explosion proof
  • Suitable for hazardous areas where explosion is a risk, for example spray booths, oil and gas production facilities

Supplied complete with mounting bracket.

The HS15EExIINT horn is waterproof and weatherproof, water resistant, rated IP67.

Constructed from alumimium alloy.



100V IPxx
List Ex VAT: £439.56
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 15W
Impedance 100 volt line
Transformer tappings 15W, 7.5W, 4W, 3W, 1.5W, 1W
SPL (1W/1m) 107dB
Max SPL (rated/1m) 118dB
Frequency Range (-10dB) 350HZ - 7500HZ
Dispersion 1K Hz / 4K Hz 140° / 30°
Termination e-chamber, screw terminals
Max. / min. amb. temp 50°C / -50°C
IP Rating IP67
Material / colour Aluminium alloy / RAL7035
Weight (kg) 2.7 kg
Dimensions (Ø x D) mm 163 x 247
Mounting Bracket supplied

DOWNLOADS

Nemko Certificate Update: DNH HS15EExmnt, DSP15EExmnt
DNH HS-15EExIINT Horn Loudspeaker Datasheet
