CES Audio QCM-6061 Discontinued
CES Audio QCM-6061 Discontinued
Click to expand

CES Audio QCM-6061 Discontinued

This product is no longer available - please contact us for a suitable replacement.

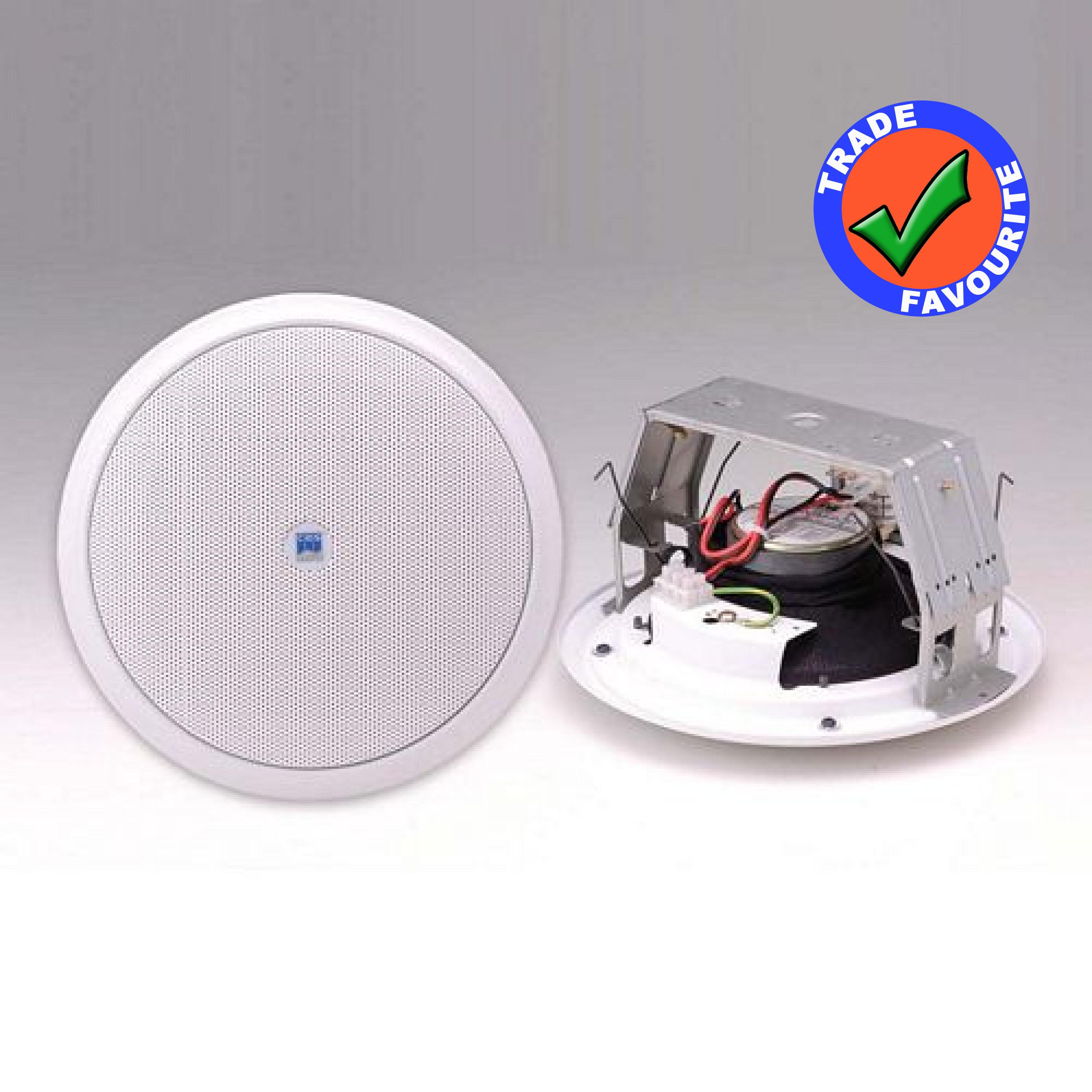

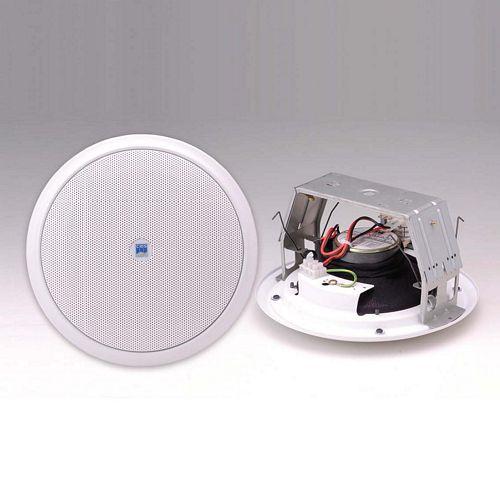

The CES Audio QCM-6061 low profile, quick fit ceiling loudspeaker is one of our favourite products. It's suitable for background music and public address systems on a 100 volt line system (or 70V).

The QCM6061 ceiling speaker shares the generic low profile grille design & simple fit system seen throughout QCM series.

  • Fitted with a 6.5″ twin cone driver unit. Designed to offer wide response for music & speech
  • 6 watt transformer with multi tappings down to 0.75W (100V) & 0.375W (70V)
  • Built-in ceiling tile cutout marker
  • Dished grille design for acoustic integrity
  • Galvanized steel construction, finished in brilliant white (RAL 9003)
1a: 100V
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
Impedance 1.67kΩ, 3.33kΩ, 6.67kΩ & 13.33kΩ
Power Taps @ 100V 6W, 3W, 1.5W & 0.75W
Power Taps @ 70.7V 3W, 1.5W, 0.75W & 0.375W
SPL (1W/1m) 93dB
Max SPL (rated/1m) 100dB
Frequency Range (-10dB) 100HZ - 20KHZ
Dispersion 1K Hz / 4K Hz 120° / 90°
Power Selection Method Plug
Material Baffle:Steel, Grille: Steel
Colour White (RAL9003)
Dimensions mm 230 (9.06) Dia. X 121 (4.76) Height mm. (in.)
Weight (kg) 1.4
Mounting Spring loaded Quick-Mount Bracket Assembly

DOWNLOADS

EC Declaration of EMC Conformity: CES QCM series
CES Audio QCM-6061 Ceiling Speaker
