Ampetronic CLS1

The Ampetronic CLS1 is a wall mounted induction loop amplifier providing coverage of up to 200m². Coverage varies according to room aspect ratio, so please contact us for advice if you are unsure which loop amp would be best for your project.

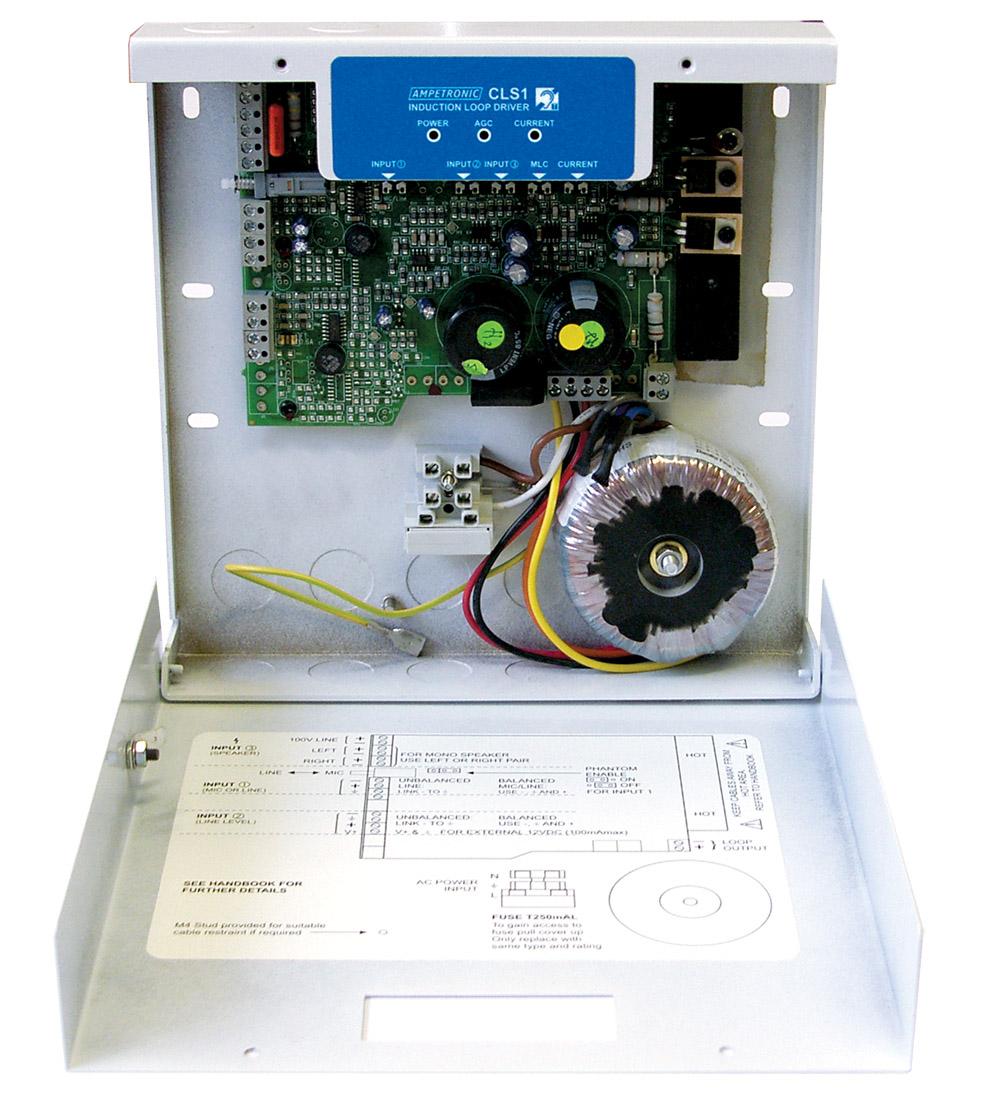

The compact, slimline tamper resistant enclosure can be discreetly mounted on a wall and all connections and controls are secured behind a hinged, detachable cover. Once the cover is screwed closed, there is no access to the cable connections or controls for metal loss correction, loop drive current and input levels.

Input options on the Apetronic CLS1 are comprehensive, with three independent inputs for balanced microphone, balanced and unbalanced line, low impedance and 100V - line speaker systems.

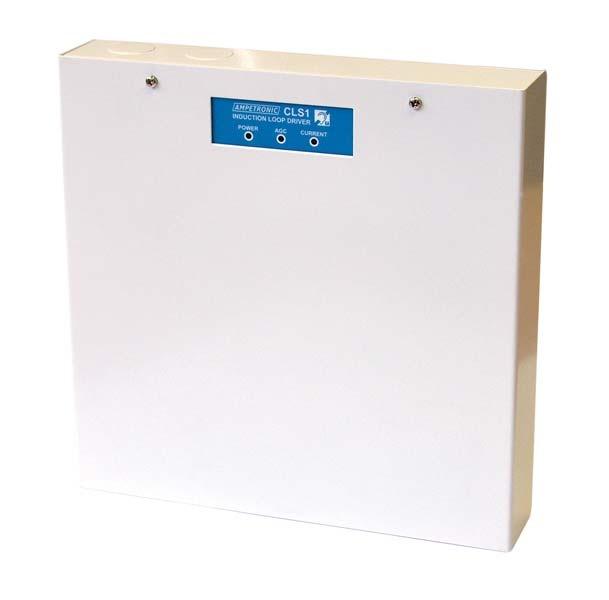

3 LED indicators on the front of the cover show the power, current drive and auto gain control status.



  • Quick and simple to install

  • Area coverage to >200m2

  • 3 independent configurable inputs

  • Wall mounted

  • Metal Loss Correction

  • 5 Year warranty

  • Cabling and controls behind tamper resistant cover

  • Free Technical support

Loop
List Ex VAT: £315.20
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

INPUTS



Input 1

Balanced Mic, balanced or unbalanced line
Input impedance 10kΩ per side
Min level (MIC / Line -73dBu / -31dBu
Max level (MIC / Line) -37dBu / +5dBu
Phantom voltage MIC only +12V

Input 2

Balanced or unbalanced line, expansion port
Input impedance 1MΩ per channel
Min level -33dBu
Max level +3dBu

Input 3

Isolated 100V line or low impedance mono or
stereo speaker
Input impedance 100V Line / spkr 120kΩ / 7.8kΩ
Min level 100V Line / spkr +14dBu / -9dBu
Max level 100V Line / spkr >+47dBu / >+27dBu

AC power input supply

230V 30W 45-65Hz
120V option available
Connected via chassis mounted screw terminal block

Input fuse - 230V

Input fuse - 120V

T250mA

T500mA

OUTPUTS



Drive voltage

>6.4Vrms - 9.0Vpk

Drive Current

Continuous 1kHz sine wave >3.3Arms 5.0Apk
Short term peaks >5Arms 7Apk

Minimum Loop Resistance

0.2Ω

Maximum Loop Impedance

1.5Ω

AUDIO SYSTEM



Frequency response

80Hz to 6.3kHz ±3dB

Distortion

THD+N

Automatic Gain Control

(AGC) Optmised for speech. Dynamic range >36dB

Metal loss correction

(MLC) 0 to 3dB per octave frequency correction (1kHz remains constant).
Control mounted on PCB.

PHYSICAL



Cooling

Natural convection

Environment

IP20, -10ºC to +40ºC

Dimensions

W, H, D: 200mm, 200mm, 44mm

Weight

1.8kg

Mounting

Wall mounting, secured by 4 screws
