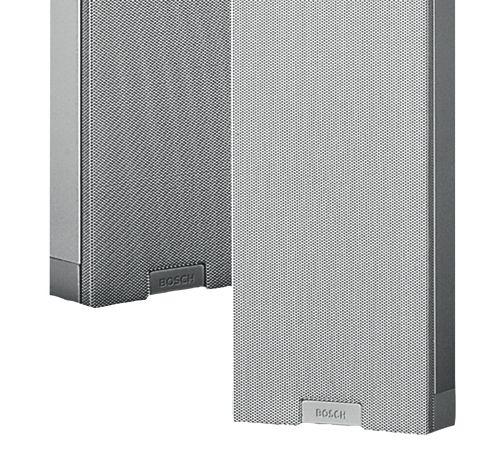

Bosch LBC 3210/00

The Bosch LBC3210/00 is an EN54-24 line array column loudspeaker, with excellent directivity and high power output, capable of handling large (reverberant) indoor environments like airport departure lounges, train stations and congress venues.

The LBC3210/00 is an ideal EN54-24 speaker for emergency paging and can be used outdoors or in other exposed areas such as railway stations or sports stadiums. Water resistant and weatherproof, rated IP66.

The full frequency range makes it ideal for speech as well as music reproduction.



  • Extended listening area
  • Excellent intelligibility of speech and music
  • Uniform distribution of natural sound throughout the room
  • Provision for inside mounting the optional line/loudspeaker supervision board
  • BS5839-8, EN 60849 and EN 54‑24 certified
  • Water resistant, IP66 rated



100V IPxx Evac
List Ex VAT: £568.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Maximum power

90 W

Rated power

60 / 30 / 15 W

Sound pressure level at 60 W / 1 W (1 kHz, 1 m)

110 dB / 97 dB (SPL)

Effective frequency range (-10 dB)

190 Hz to 20 kHz

Opening angle 1 kHz / 4 kHz (-6 dB)

Horizontal: 170° / 90°

Vertical: 55° / 18°

Rated input voltage

100 V

Rated impedance

167 ohm

Connector

Screw terminal block

Dimensions (H x W x D):

1200 x 160 x 90 mm /(47.24 x 6.3 x 3.54 in)

Weight

9  kg (19.8 lb)

Colour

Light Grey (Matches RAL9022)
