TOA IR-802 SET

The TOA TeachIR IR-802 SET wireless microphone classroom sound system is simple to install, superb quality & interference-free.

An infrared voice transmission system ensures that all pupils can hear the teacher clearly across the whole classroom, regardless of high ambient noise. When children can hear clearly, concentration levels can be more easily maintained and the teacher is protected from vocal strain and fatigue.

The TOA IR802 SET infrared classroom sound system consists of one central wide dispersion loudspeaker connected via CAT5 cable to the tuner. A handheld wireless microphone with rechargeable batteries and dual charger are also included.

This TeachIR IR-802 SET comprises of the IR-802T tuner, IR-820SP amplified loudspeaker, one IR-300M neck-worn microphone, one IR-200M hand held wireless microphone, IR-200BT-2 rechargeable batteries & one IR-200BC two way battery charger.

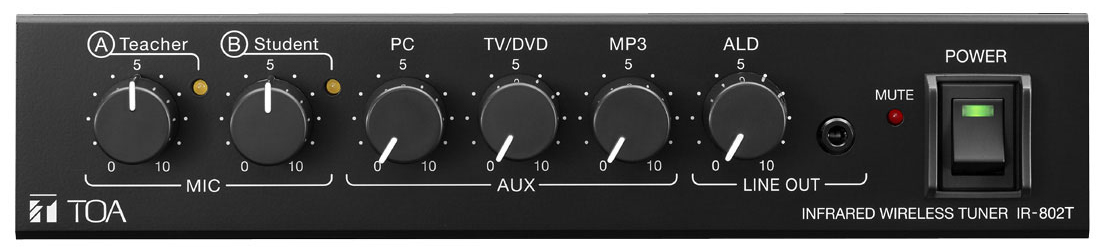

The IR-802T  infra red wireless tuner has a built in pre amp and offers 3 auxiliary inputs for additional sound sources such as a PC, TV/DVD player or MP3 player.

• 3 AUX inputs for PC, TV/DVD player and MP3 audio player
• Output muting by 25V speaker line signal from emergency / intercom paging
• Equalizer control knobs for low-, mid- and high-frequency outputs
• Mixing output terminal for ALD (Assistive Listening Device)
• Frequency response optimized to reduce acoustic feedback in 100 m² classrooms

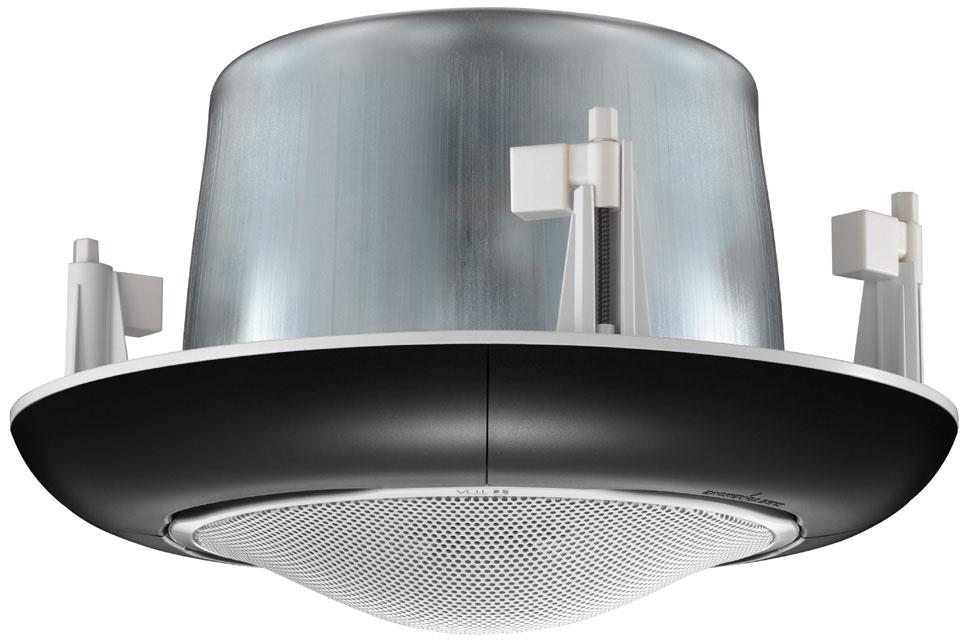

The IR-820SP is a wide dispersion ceiling mounted loudspeaker providing coverage up to 100m². It has a built-in infra red receiver and 20 watt digital amplifier. The bass reflex design achieves a wide frequency response and gives an even sound coverage over a wide radius. It is connected to the tuner by CAT5 cable.

The IR-300M is a hands-free, wireless neck-worn electret condenser microphone with infra red emitter built in. (Designed for the teacher)

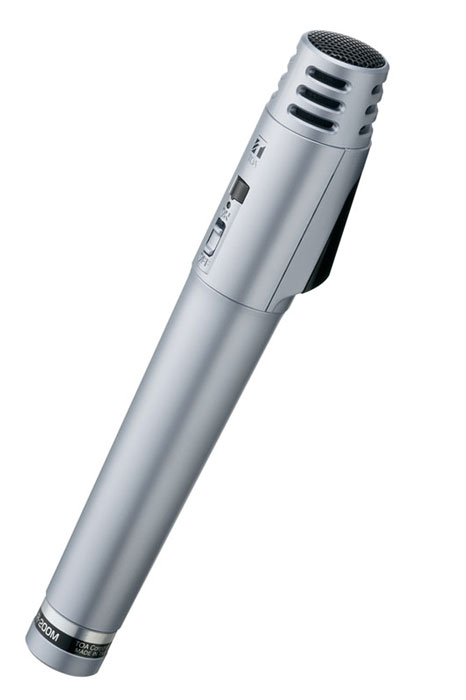

The IR-200M is a lightweight, wireless hand held electret condenser microphone with dual infra red transmitters built in. (Designed for the student)

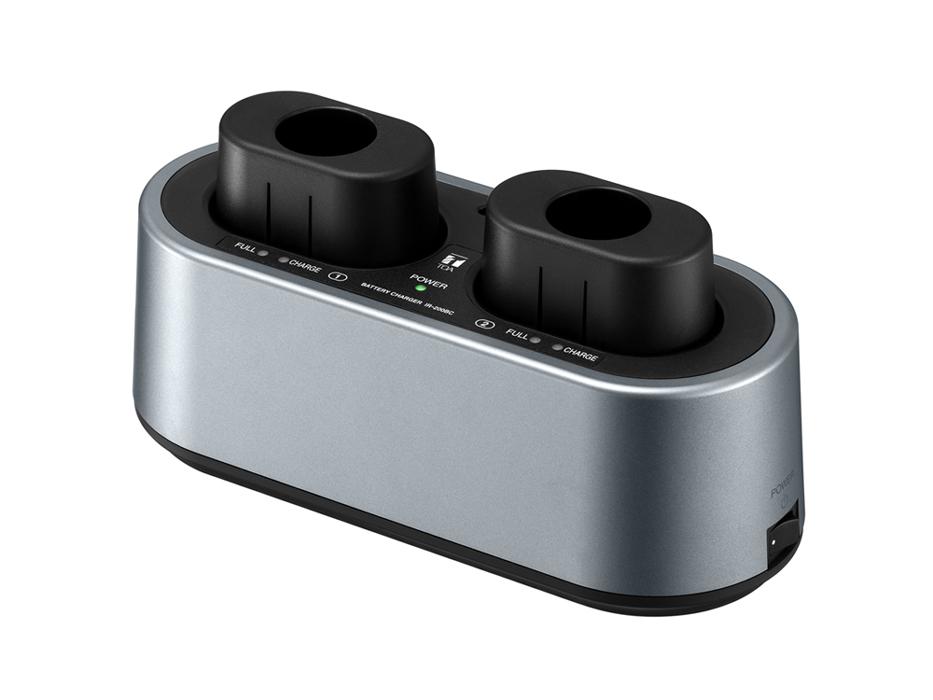

The IR-200BC quick charger is capable of charging up to 2 microphones (both hand-held and beltpack types) at a time. With the rapid charging feature, up to 2 infrared microphones can be simultaneously charged in 3 hours (maximum).

All items are available individually - please contact us for prices.

  • Warranty: 1 Year
List Ex VAT: £2,039.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

IR-802T Tuner



Power Source

230 V AC, 50/60 Hz (supplied AC adapter must be used)

Power Consumption

8 W (based on UL standards)

Max. 40.8 W (rated output of IR-820SP)

Receiving Frequency

Teacher (Channel A): 3.100 MHz

Student (Channel B): 3.350 MHz

Inputs

AUX PC: line, -10 dB*, 10 kΩ, unbalanced, stereo mini jack (internal mixing)

AUX DVD/TV: line, -10 dB*, 10 kΩ, unbalanced, 2P RCA jack (internal mixing)

AUX MP3: line, -10 dB*, 10 kΩ, unbalanced, stereo mini jack (internal mixing)

Mute: 25 V line signals of telephone paging from a school intercom system

Outputs

ALD (Assistive Listening Device): line, -10 dB*, 10 kΩ, unbalanced, monaural mini jack

Speaker: RJ45 (terminal for IR-820SP connection)

LED Indicators

Power: green × 1, IR reception: yellow × 2, Mute: red × 1

Dimensions

210 (W) × 46 (H) x 312 (D) mm

Weight

1.8kg





IR-820SP Amplified Speaker

Power Source

24 V DC (supplied from IR-802T)

Power Consumption

4.4 W (based on UL standard)

Rated Output

20 W

Frequency Response

100 Hz – 20 kHz (-10 dB) at installation in 1/2 free sound field

Amplification System

Class D

Speaker Component

12 cm (4.72") cone-type

Connection Terminal

RJ-45, via CAT-5 UTP cable

LED Indicator

Power: green × 1

Dimensions

ø320 × 205 (D) mm

Weight

3.4 kg





IR-200M Handheld Microphone

Batteries

IR-200BT-2 rechargeable or AA alkaline batteries

IR Transmission Distance (in an unobstructed space)

Approx.20m (Power selector switch: H)

Approx. 15m (Power selector switch: N)

Tone Signal

32.768kHz

Microphone Unit

Unidirectional electret condenser microphone

Frequency Response

100Hz-12kHz

Battery Operation Time (Power: N)

Approx.8 hours with IR-200BT-2 rechargeable batteries

Approx.6 hours with alkaline batteries

Dimension

ø37 x 241.8mm

Weight

170g (with batteries)

Accessories

Screwdriver x 1, Colour label (6 colours) x 1

IR-300M Handheld Microphone

Audio input

External microphone input (ø 3.5 monaural mini jack)

Operating temperature

0 °C to +40 °C (32 °F to 104 °F)

Finish

ABS resin, grey metallic

Dimensions

64 x 91.3 x 27.3 mm (W x H x D)

Weight

130 g

Power source

Battery 2 x IR-200BT-2 rechargeable battery or AA alkaline

Accessory (included)

Screw driver (for setting), Colour label (6 colours)
