Yamaha VXS5-VA
Click to expand

Yamaha VXS5-VA

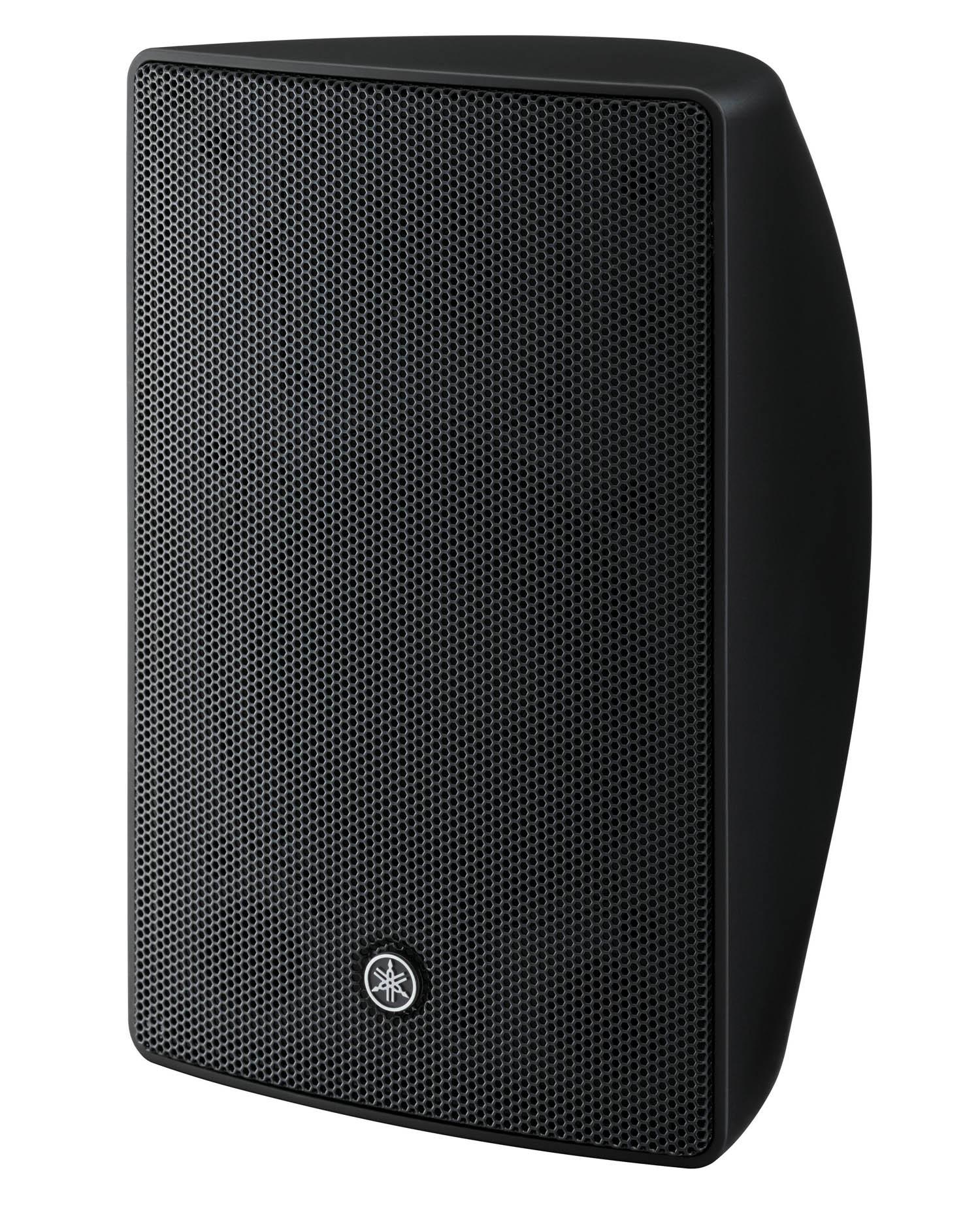

The Yamaha VXS5-VA is an EN54-24 certified 5.25" 2 way bass reflex cabinet loudspeaker which can be mounted vertically or horizontally on the wall or ceiling using the versatile mounting bracket supplied with each loudspeaker. Rated at 150 watts Program power and compatible with both 8Ω low impedance music systems as well as 100 volt line commercial sound systems.

Being fully compliant with EN54-24, the VXSVA is ideal for voice alarm applications for emergency paging use.

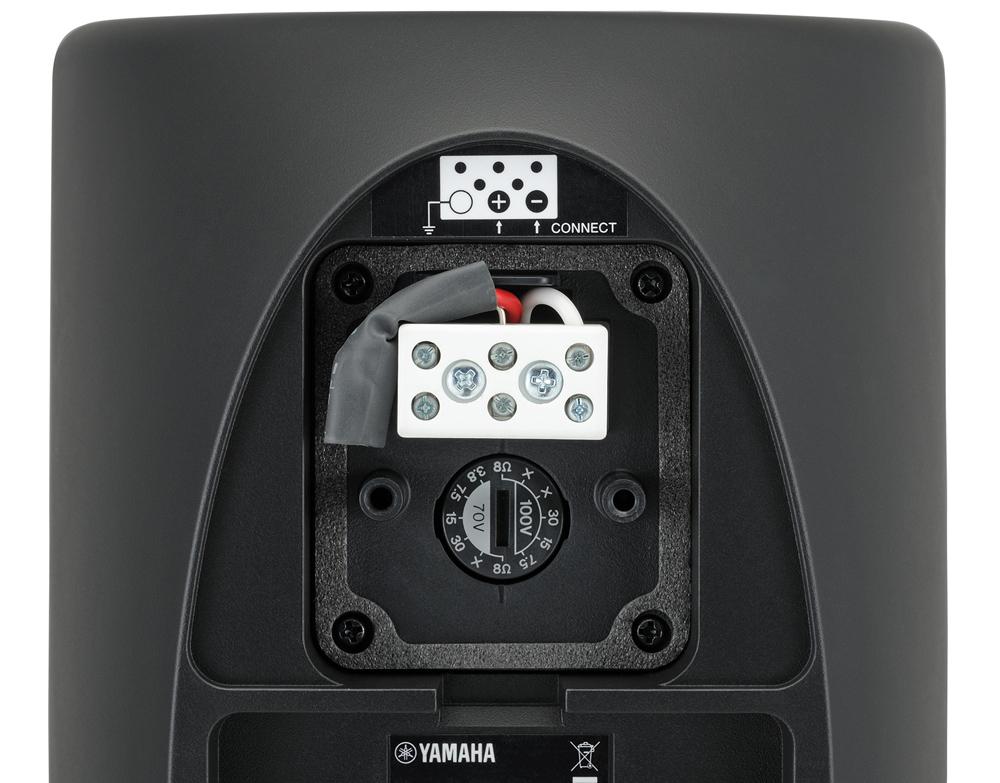

A tapping selector is provided on the rear of the speaker with transformer tappings at 30w, 15w and 7.5w.

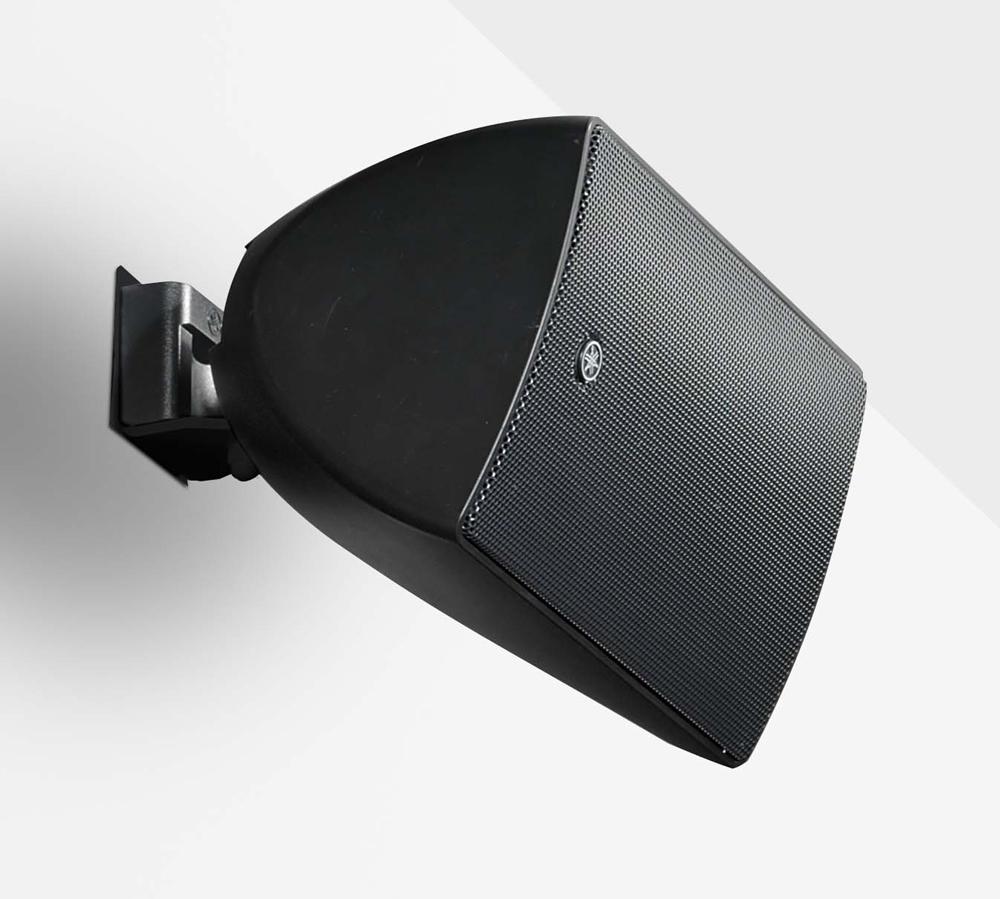

The neatly designed VXS5 cabinet can be mounted closely to the wall, whilst still enabling it to tilt and turn as required.

Water resistant, rated P35, suitable for use as an outdoor speaker.

Available in black or white.

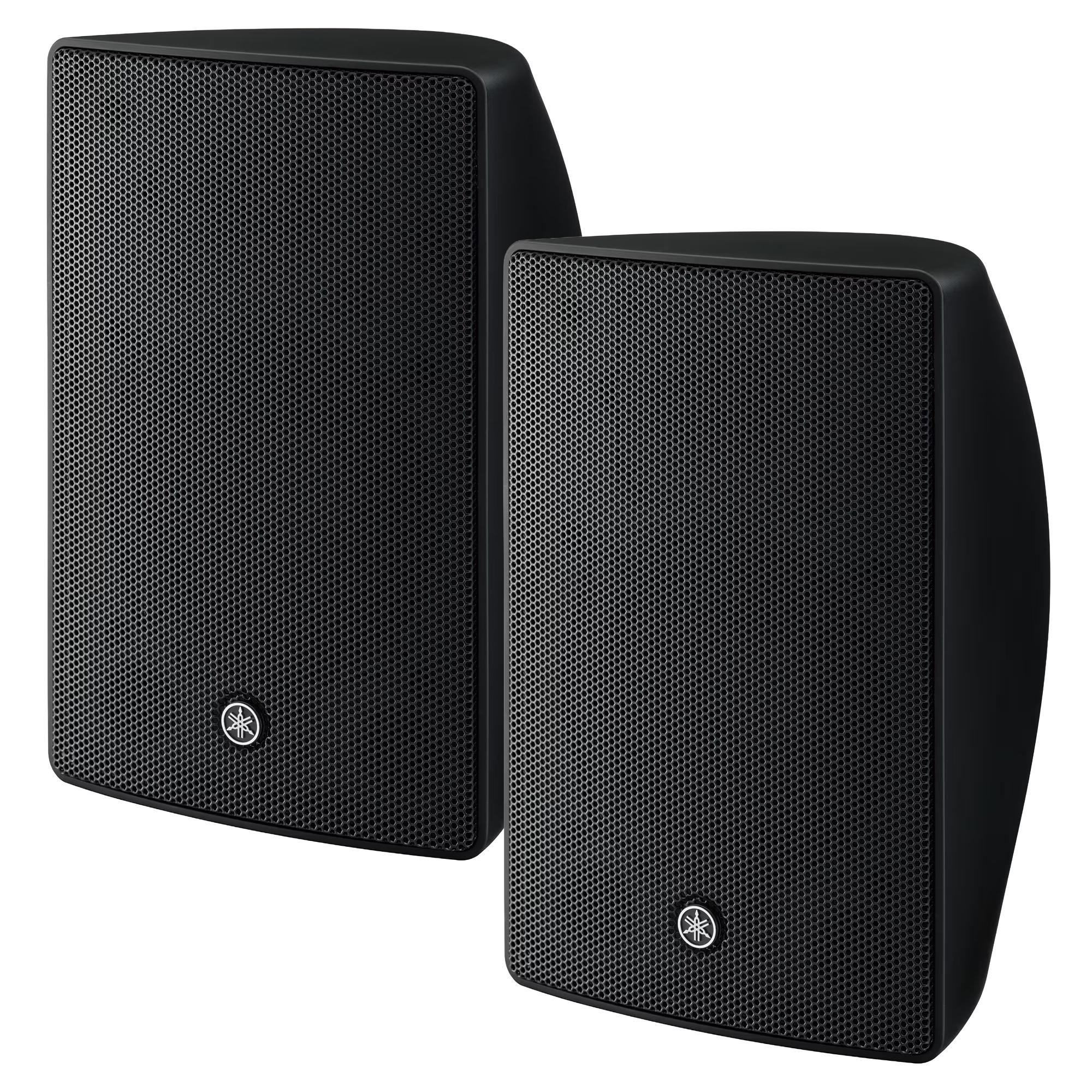

*****SUPPLIED & PRICED IN PAIRS*****

100V Evac 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

General specifications

VXS5-VA / VXS5-VAW

Speaker Type

2-way, Bass-reflex

Frequency response (-10dB)

62Hz - 20kHz

Nominal coverage

120° horizontal, 120° vertical

Components

LF: 5.25" cone, HF: 0.75" Soft dome

Crossover

3kHz

Power rating

75W noise / 150W programme

Nominal impedance

Transformer Taps (100V)

30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ)

Transformer Taps (70V)

30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ)

SPL Sensitivity (1W; 1m on axis)

88dB SPL

SPL Peak (Calculated)

113dB SPL

I/O connectors

1x Ceramic terminal block (3P) (input: +/-, Earth)

Finish

VXS5:Black / VXS5W:White

Dimensions W x H x D

176mm (6.9")  x 280mm (11") x 163mm (6.4")

Net weight

Speaker: 3.6kg (7.9lbs),

Accessories

Wall / Ceiling mount bracket, Terminal cover
