Dimensions:

Width: 5.65”(14.4 cm), Depth: 3.65”(9.3 cm), Height: 1.15”(2.9 cm)

Weight:

8.3 oz (235 g)

Color:

Black

Power Supply:

TFP 055 – 100-240VAC 50/60Hz Input; 5VDC, 1A USB Output, Universal Supply with international adapters

Other USB Power Supply (must be at least 5VDC, 0.2A)

Power Cable:

USB to micro USB cable

DC Power Input:

Micro USB connector, 5VDC, 0.2A

Power Indicator:

Green LED

Sleep/Power Save Mode:

Shuts off carrier when no audio present for 12 minutes

Modulation:

FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis

Carrier Frequencies:

2.3MHz (Ch 1) and 2.8MHz (Ch 2)

Default at power on = carriers off.  Carriers are automatically enabled upon presence of audio.

Coverage Area:

1,000 sq. ft (93 sq. m.)

Audio Inputs:

3.5mm stereo line level input jack, Ch 1 connected to tip, Ch 2 connected to ring, GND connected to sleeve

Audio Indicators:

One Yellow LED per channel, lights up and stays on steady with minimum audio level.

Signal-to-Noise Ratio:

70 dB at onset of limiting

Frequency Response:

100 - 12,000 Hz

Operating Requirements:

32°-122°F (0-50°C)

Mounting Kit:

Optional:  STD 008 TV Top Shelf Mounting Kit

Optional:  BKT 024 Omnidirectional mount for wall or ceiling mounting

Compatible Receivers:

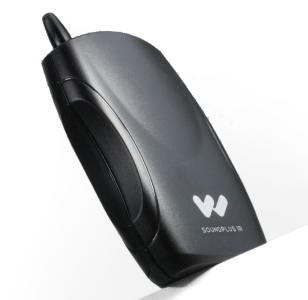

WIR RX22-4, WIR RX18

Warranty:

2 years
