Receiver Style:

Body-Pack, dual-lens detector, lanyard

Size:

4.1” L x 2.85” W x 1.2” H (104.1 mm x 72.4 mm x 30.4 mm)

Weight:

4.5 oz (127 g) with batteries

Colour:

Black

Lanyard:

3 ft (0.91 m), allows receiver to be worn around the neck

Battery Type:

2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)

Battery Life:

Alkaline: 60 hours, NiMH: 30 hours/charge

Battery Drain:

25 mA, nominal

Charging Contacts:

For use only with CHG 3512

Carrier Frequency:

Channel 1: 2.3 MHz, Channel 2: 2.8 MHz

Channel 3: 3.3 MHz, Channel 4: 3.8 MHz

Signal-to-Noise Ratio:

60 dB min.

Frequency Response:

25 Hz to 16 KHz, +1 dB, -3 dB, electrical response

Total Harmonic Distortion:

Less than 1%, electrical response

Controls:

ON/OFF/VOLUME: combination thumbwheel knob

Channel Selector: four-position rotary switch

Indicators:

Red LED “ON” indicator, flashes to indicate Low battery

Audio Output Jacks:

3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug

Audio Output Power:

15 mW max at 32 Ω

Acoustic Output:

125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013

Compatible Headphones/Earphones:

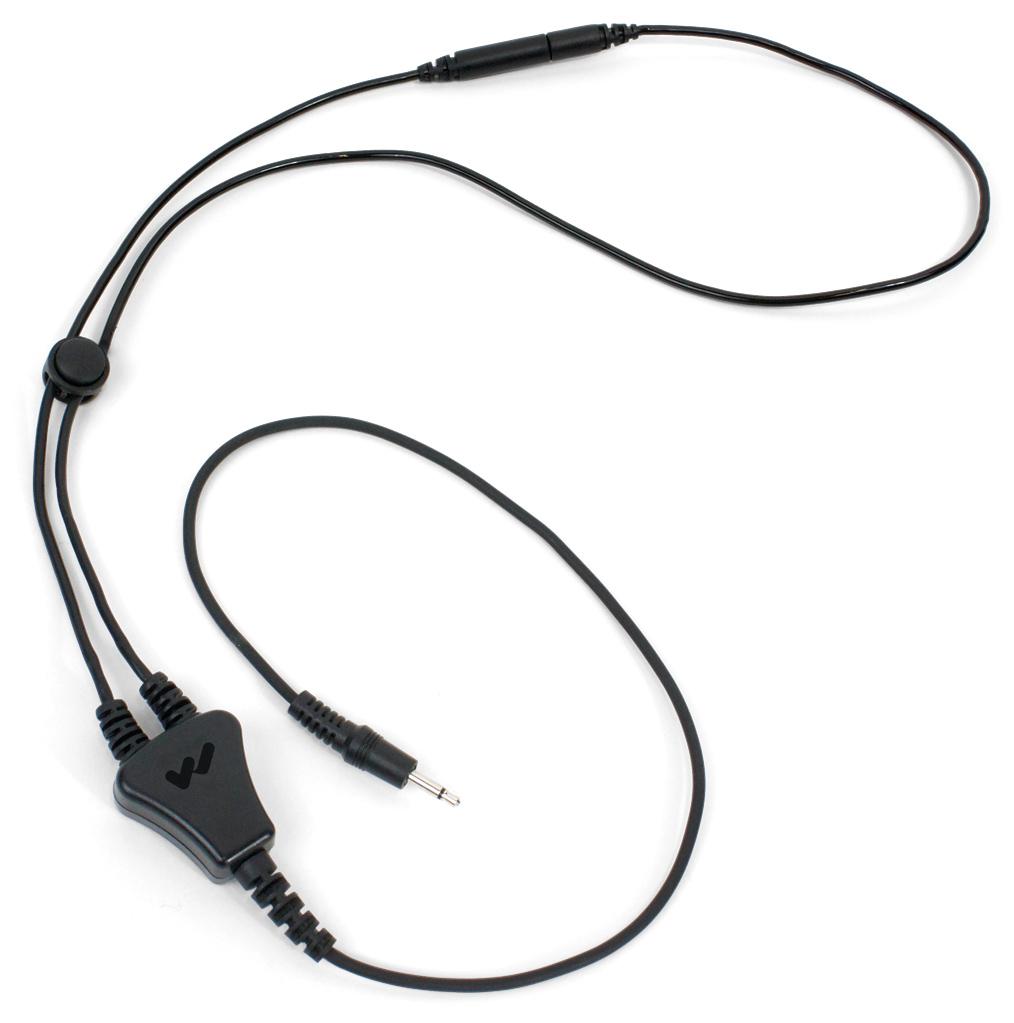

Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001
