Pulse RMX112
Click to expand

Pulse RMX112

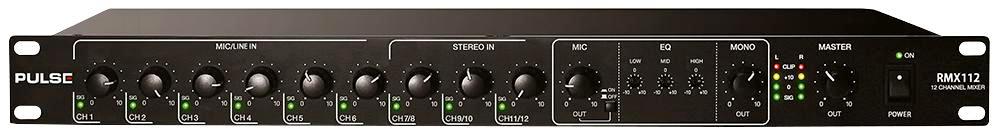

The Pulse RM112X 12-channel audio mixer has 6 mic/line combination inputs and 3 stereo line inputs (RCA).

Please note - this is a direct equivalent of the very popular Denon DN-312X which is no longer available.

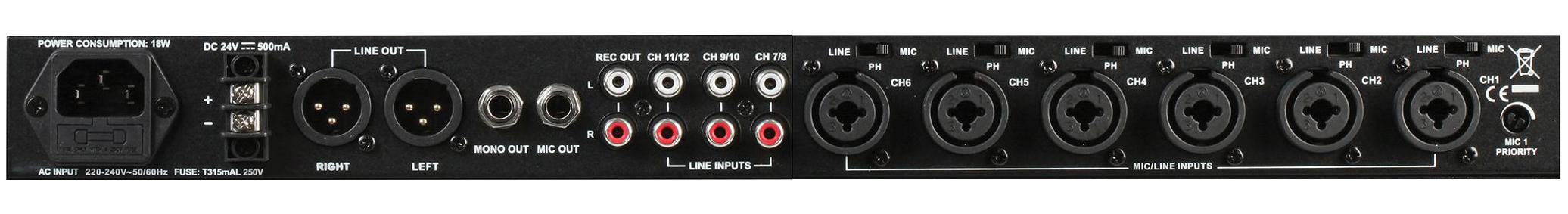

The ultra-slim 1U rack mounted mixer has balanced XLR outputs, a 1/4-inch (6.3mm) mono output that can be used to connect the RM112X to a remote mixer, a pair of RCA stereo outputs to connect to a remote recording device, and 1/4-inch (6.3mm) mic monitoring port that can be used to monitor the mics’ signals.

The RM112X mixer provides individual level control for all inputs in addition to level control for the mono output port and a master level control. It has a 3-level equalizer and a controlled priority for Mic/Line 1.

  • 6 Mic/Line inputs with individual Mic/Phantom/Line selector switches
  • 3 Stereo line inputs
  • Low-distortion mic pre-amp with high dynamic range
  • Channel level controls with input signal LED indicators
  • 3 Band EQ for low, mid, high adjustments
  • Mic.1 priority mute potentiometer
  • 4 Segment LED signal level meters
  • Record out
  • Mic. Out with activation switch and level control
  • Mono & Master outputs with level controls
  • Input connectors: 6x Combo XLR/Jack, 3x RCA (L+R)
  • Output connectors: XLR (L+R), 6.35mm (1/4”) Jacks, RCA (L+R)
  • Power supply: 220-240V AC or 24V DC
  • Dimensions (WxHxD): 483x44x195mm
  • Weight: 2.9kg
multi-ch 1U
List Ex VAT: £125.96
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Input Channels Mic/Line Inputs (Channels 16)

Microphone Input

XLR+1/4” (6.35 mm) combination, electronically balanced, discrete input configuration

Sensitivity

-40 dBu

Phantom Power

+18–21 V, switch control

Line Inputs (Channels 1–6)

Line Input

XLR+1/4” (6.35 mm) combination, electronically balanced

Sensitivity

0 dBu

Line Inputs (Channels 7/8–11/12)

Line Input

Stereo RCA pairs, electronically balanced

Sensitivity

+10 dBu

Equalizer

High

+15 dB @ 12 kHz

Mid

+12 dB @ 2.5 kHz

Low

+15 dB @ 80 Hz

General

Mains Connection

IEC

Input Voltage

220-240 V AC, 50-60 Hz or 24 V DC

Width x Height x Depth

19.0” x 7.7” x 1.7 “ / 483 x 195 x 44 mm

Weight

6.4lbs / 2.9kg


Please download the manual for further technical information.
