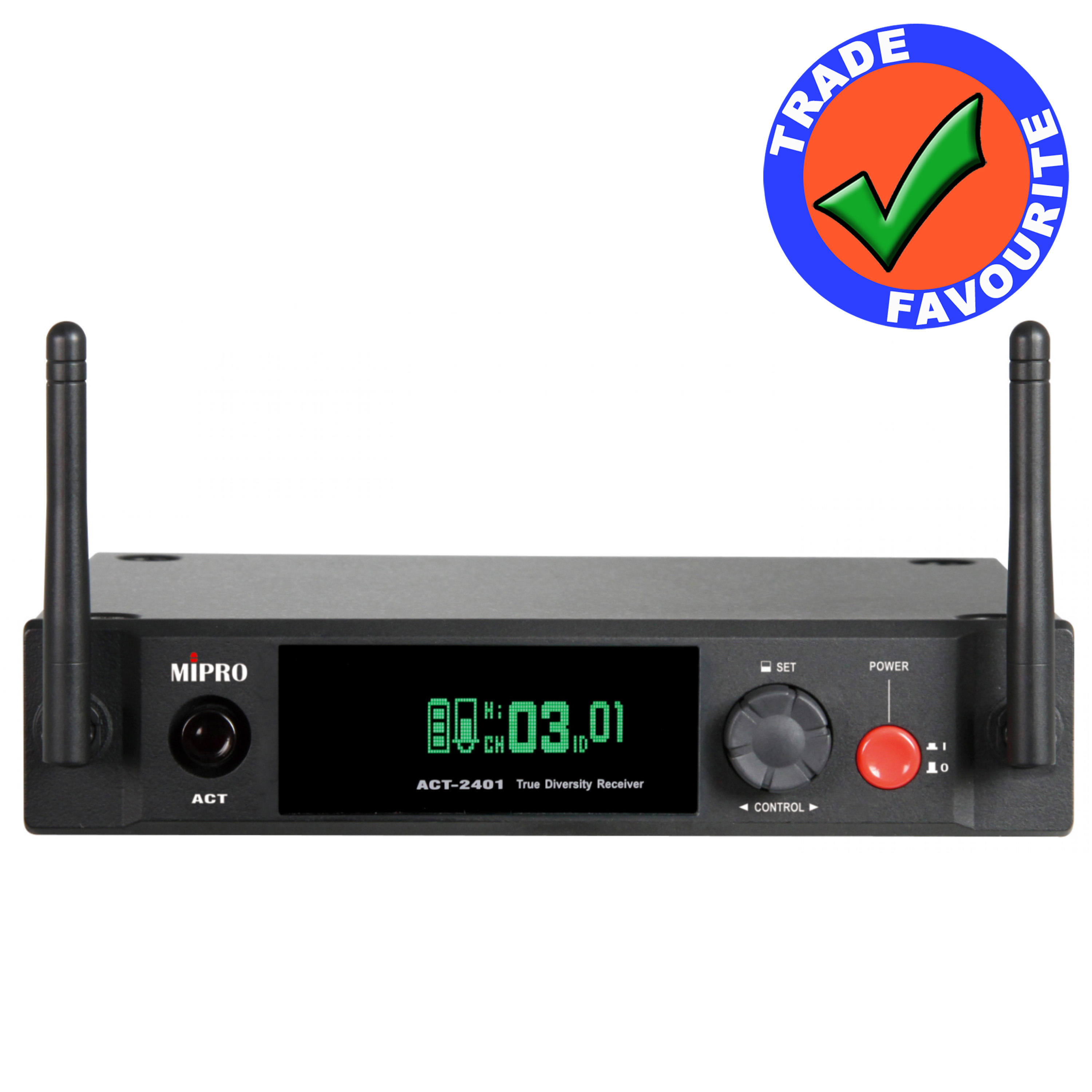

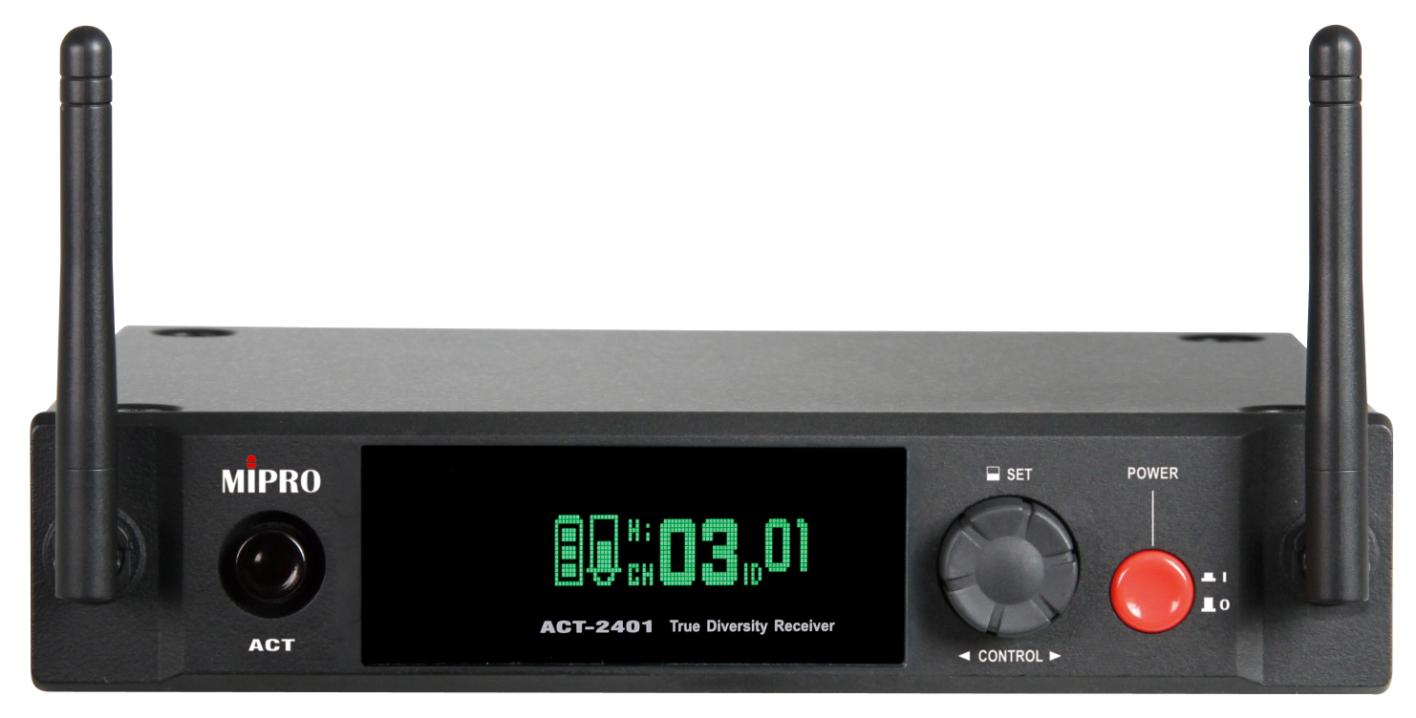

Mipro ACT-2401
Click to expand

Mipro ACT-2401

The Mipro ACT-2401 single channel digital wireless receiver is one of our favourite products. It operates in the 2.4GHz band with true diversity reception and offers a range of up to 100m. Licence free.

Limited stock availability.

A frequency hopping feature constantly scans for free space within the Wi-Fi band and there are up to 12 compatible channels available.

This licence free system offers excellent value for money.

The neat half rack width receiver can be used freestanding or mounted in a rack using optional rack mount brackets.

Please see related products for suitable microphone transmitters as well as multi-channel receivers.



  • 2.4GHz-ISM band stable digital FSK modulation circuitry. All frequencies are located in this band.
  • With the FHSS frequency-hopping technique, each channel has 4 preset hopping frequencies.
  • By using an adaptive tracking algorithm, it can skip the Wi-Fi frequency in use and effectively avoid interference from 2.4GHz communication products.
  • The hopping frequencies skip most of the Wi-Fi frequencies.
  • With dual tuner true diversity receiving, the receiving distance is up to 100 meters (330 ft.) with no signal drop-out.
  • The precisely designed PCB is enclosed in a sturdy case.
  • The antennas are fixed at the left / right side of the front panel.
  • An affordable price for entry-level consumers.
2.4ghz
List Ex VAT: £158.09
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Chassis

EIA Standard 19" 1/2U

Display

Graphic OLED

Frequency Range

ISM 2,400 – 2,4835 MHz

Preset Frequency

12

Frequency-hopping

Each channel has 4 preset hopping frequencies

Receiving Mode

Dual-tuner Digital Diversity

Audio Sampling

24-bit / 44.1 kHz

Sensitivity

-95 dBm

S/N Ratio

> 115 dB(A)

T.H.D.

0.1 % @ 1 kHz

Audio Frequency Response

20 Hz – 20 kHz (-2 dB)

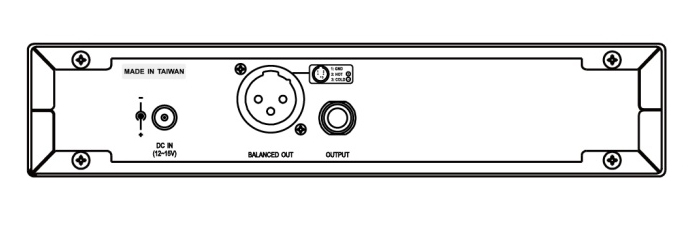

Output Connectors

Balanced XLR & Unbalanced 6.3 mm (1/4 ")

Audio Output Adjustment

0 dB (standard), -10 – +20 dB adjustable range

Latency

< 4.0 ms

Antenna

2 × 50 Ω fixed antenna

Power Supply

External AC Power Supply

Power Consumption

1.6 W

Dimensions

210 × 44 × 180 mm / 8.3 × 1.7 × 7.1 "

Weight

Approx. 0.75 kg / 1.7 lbs

Operating Temperature

-10 – +60℃
