Commercial Audio - Mipro ACT-2412A

Click to expand

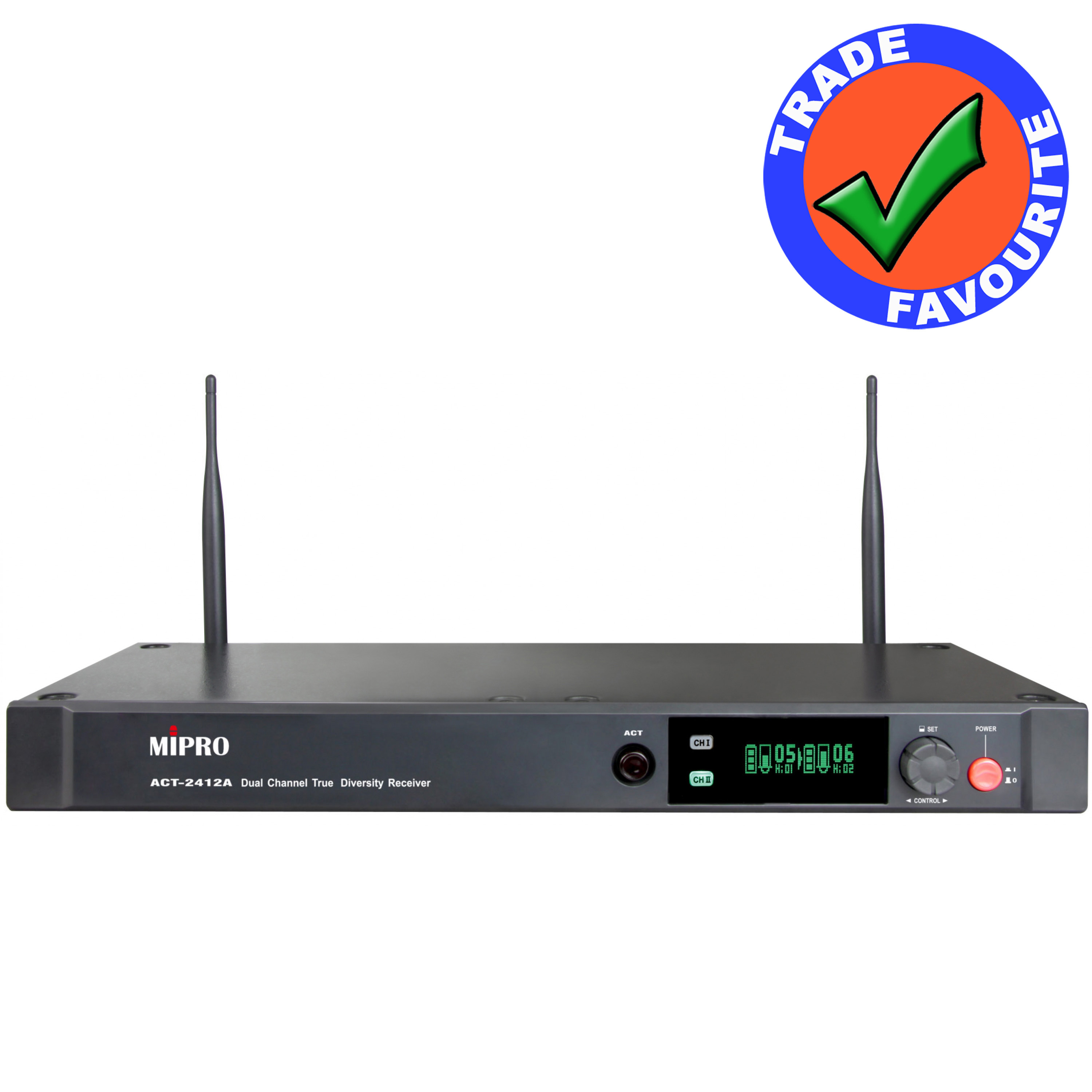

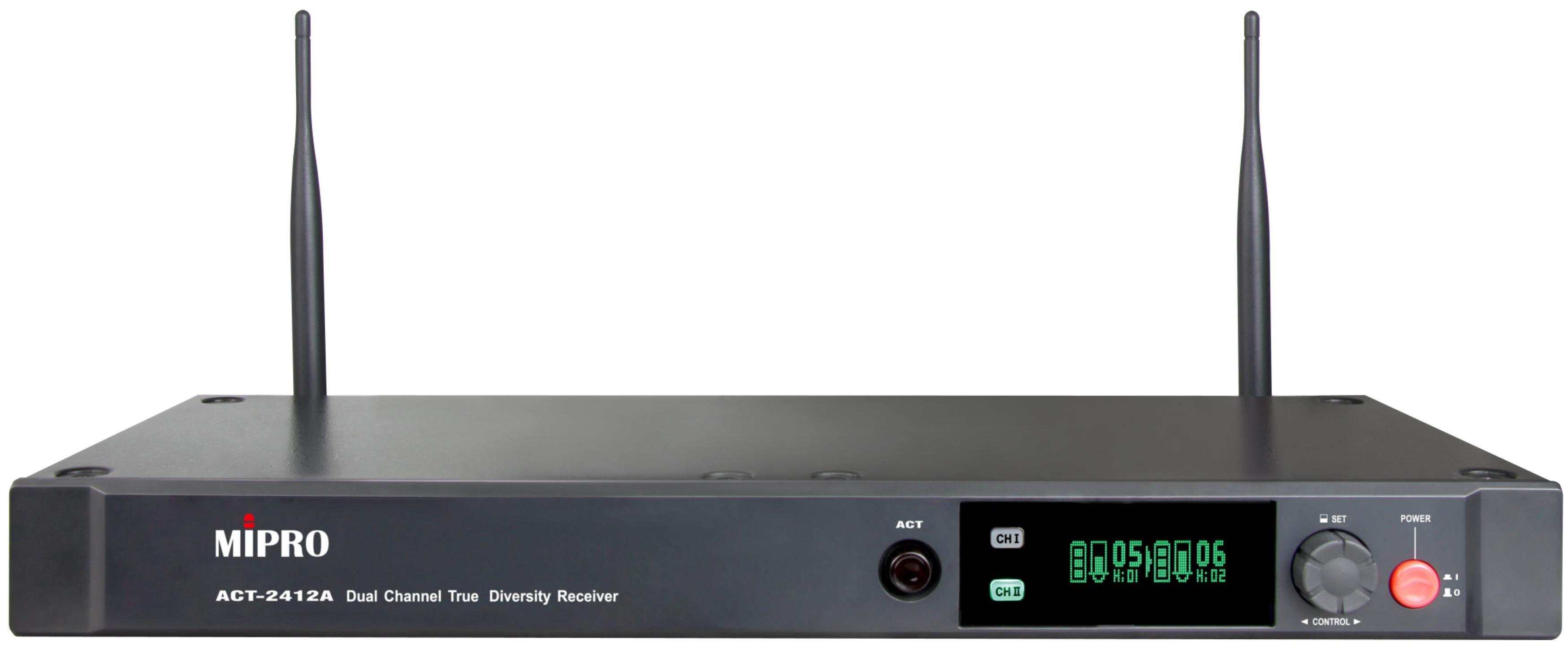

Mipro ACT-2412A

The Mipro ACT-2412A dual channel digital wireless receiver is one of our favourite products. It operates in the 2.4GHz band with true diversity reception and offers a range of up to 100m. Licence free.

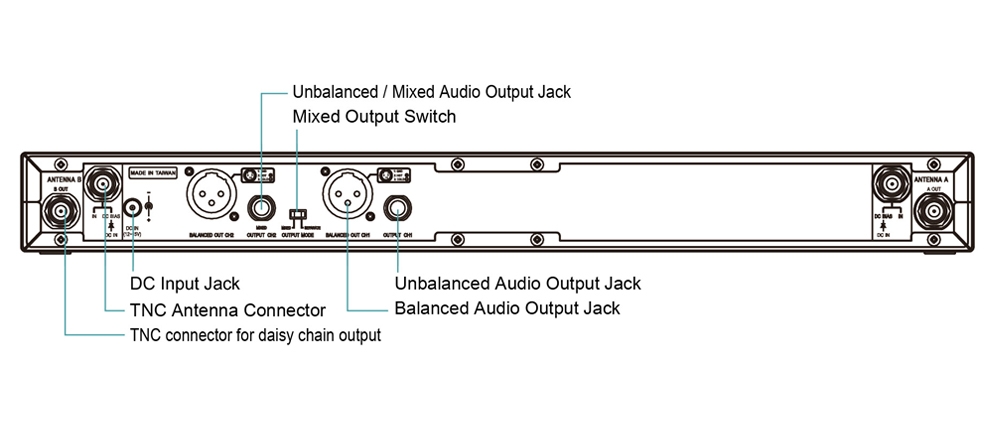

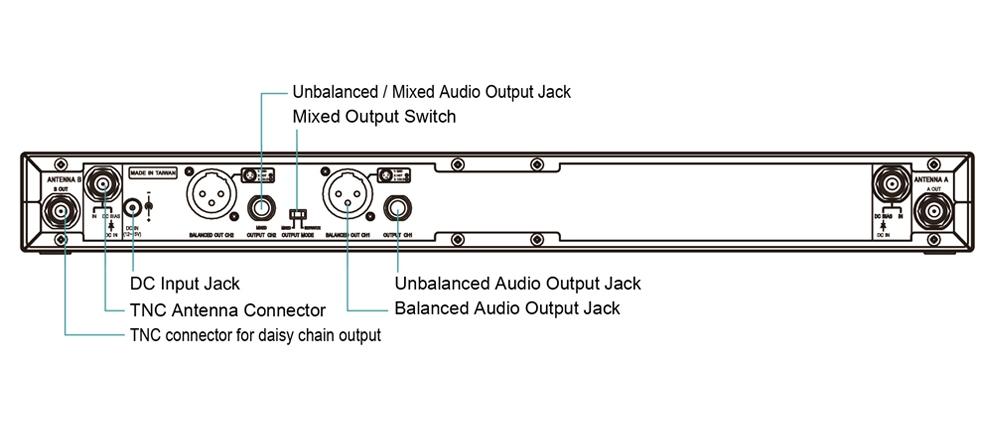

Features detachable, rear mounted antennae.

Full rack width, 1U high. Rack mountable with included rack ears.

A frequency hopping feature on the ACT2412 constantly scans for free space within the Wi-Fi band and there are up to 12 compatible channels available and an adaptive tracking algorithm helps effectively avoid interference from 2.4GHz communication products.

This licence free system offers excellent value for money.

Can be used freestanding or mounted in a rack using included rack mount brackets.

Warranty: 1 Year

Please see related products for single & quad channel receivers as well as compatible handheld microphone & bodypack transmitters.

List Ex VAT: £341.41

SPECIFICATIONS

Chassis	EIA Standard 19" 1/2U
Display	Graphic OLED
Frequency Range	ISM 2,400 – 2,4835 MHz
Preset Frequency	12
Frequency-hopping	Each channel has 4 preset hopping frequencies
Receiving Mode	Dual-tuner Digital
Diversity Audio Sampling	24-bit / 44.1 kHz
Sensitivity	-95 dBm
S/N Ratio	> 115 dB(A)T.H.D.0.1 % @ 1 kHzAudio
Frequency Response	20 Hz – 20 kHz (-2 dB)
Output Connectors	Balanced XLR & Unbalanced 6.3 mm (1/4 ")
Audio Output Adjustment	0 dB (standard), -10 – +20 dB adjustable range
Latency	< 4.0 ms
Antenna	2 × 50 Ω fixed antenna
Power Supply	External AC Power Supply
Power Consumption	2.4W
Dimensions	420 × 44 × 180 mm / 8.3 × 1.7 × 7.1 "
Weight	Approx. 1.3 kg / 2.9 lbs
Operating Temperature	-10 – +60℃

DOWNLOADS

Mipro ACT-2412A Digital Wireless Receiver Datasheet

Related Products

Mipro ACT-24HC

Rechargeable handheld digital wireless microphone transmitter. 2.4GHz, licence free.

List Ex VAT: £171.55

Mipro ACT-24TC

Rechargeable bodypack digital wireless microphone transmitter. 2.4GHz - licence free.

List Ex VAT: £158.09

Mipro FBC-72

Pair of rear to front cables for Mipro ISM wireless mic receivers.

List Ex VAT: £45.00

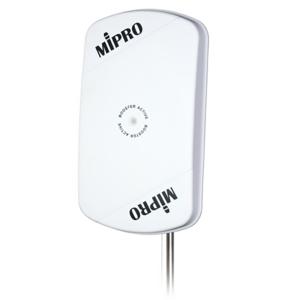

Mipro AT-24
