TOA A-5012

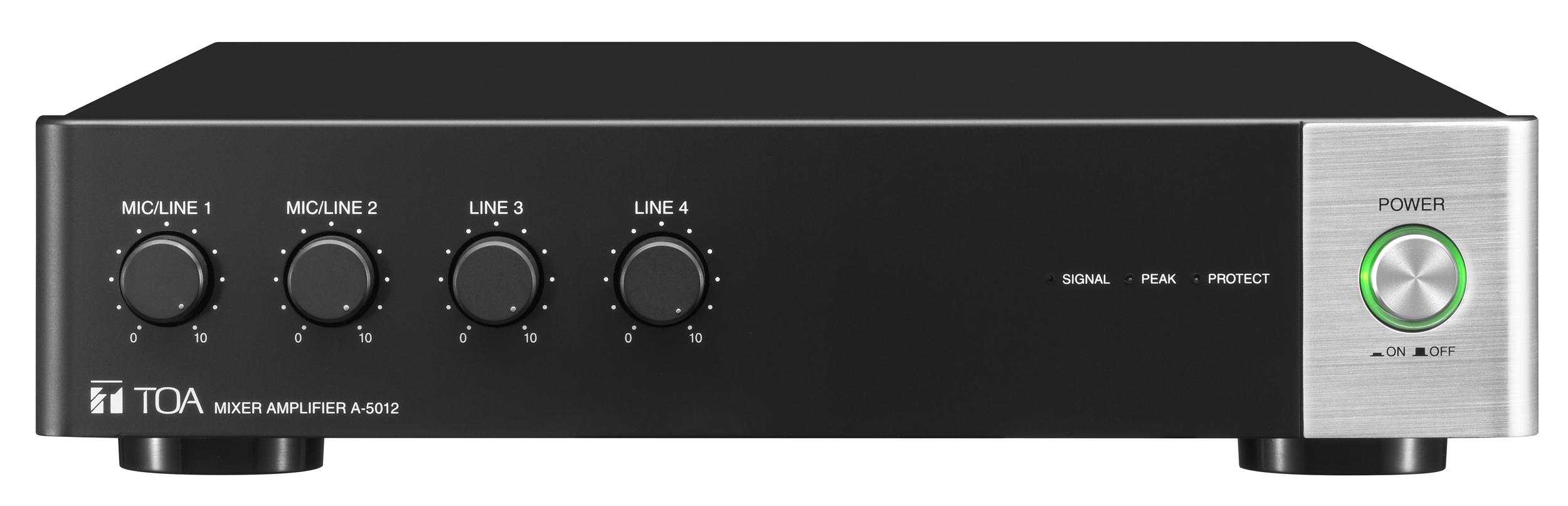

The TOA A-5012 digital mixer amplifier is a 120 watt, 100 volt line mixer amp with built in digital signal processors (DSP) and connects to a PC for sound optimization.

Software is included and once installed and connected, a GUI display enables easy set up of the 5 band Parametric Equalizer for each input and output as well as remote master volume control, mute and compressor for input 1 & 2.

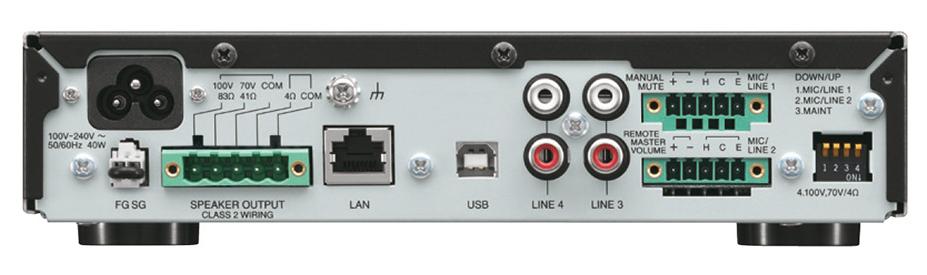

There are 2 selectable mic / line inputs on removable block connectors and a further 2 line inputs using RCA phono sockets.

The compact A5012 is 1U high and just a half rack width. Ideal for small restaurants and shops.

It is designed for 100 volt line distributed sound systems but also has a low impedance (4Ω) output.

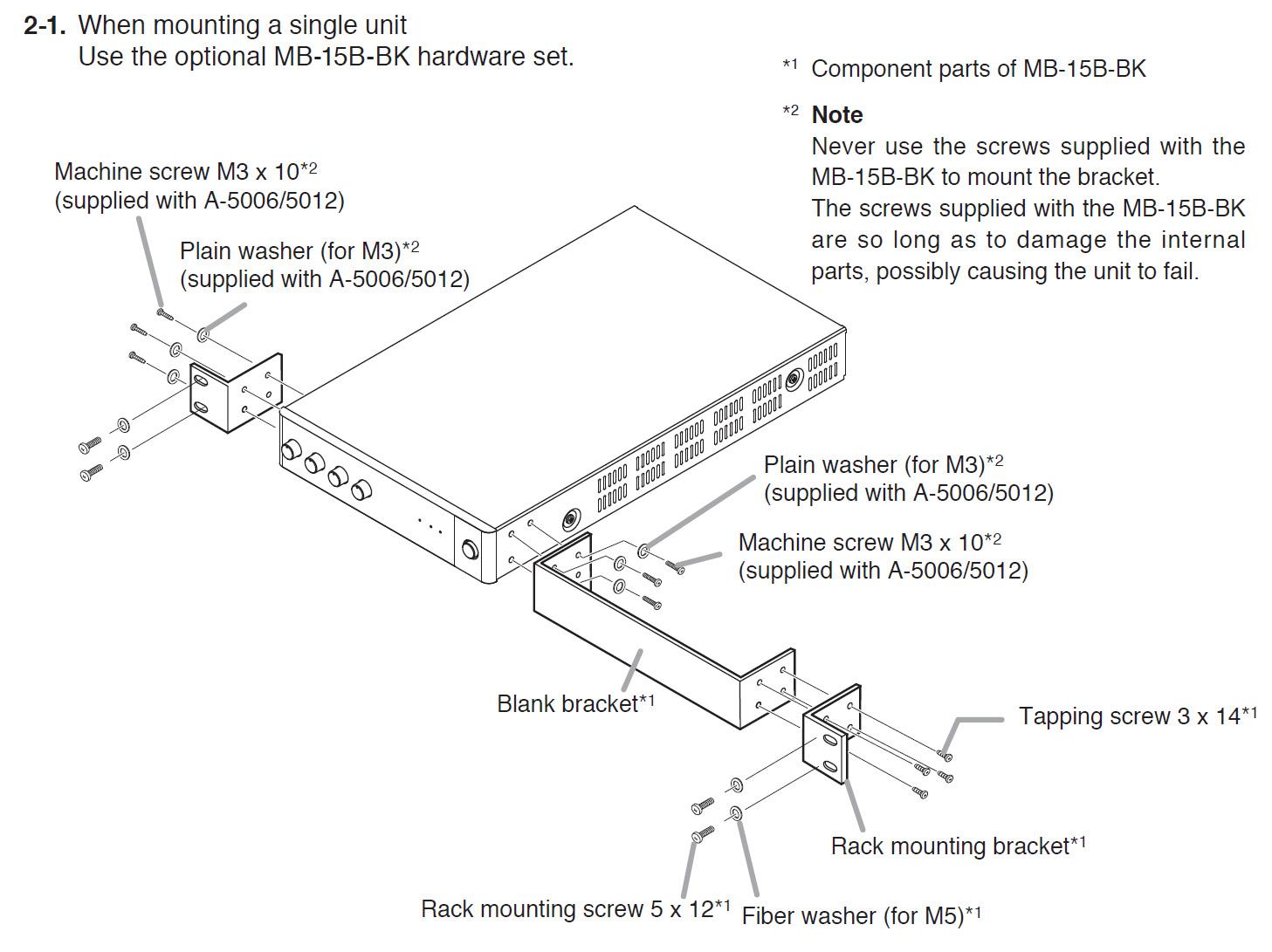

1/2 rack width, 1U high. Rack mountable, individually or in pairs, using the optional rack mount brackets - see related products.

100V 4ohms
List Ex VAT: £450.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power Source 100-240 V AC, 50/60 Hz
Rated Output 120 W
Power/Current Consumption 106 W(rated output), 20 W(based on cULus standards) Max. 2 A/ 207 W (rated output), 39 W(based on cULus standards)
Max. 3 A
Frequency Response 50 Hz – 20 kHz, 1/8 output
Distortion 1% or less (1kHz, rated output)
Input INPUT 1, 2: MIC -60 dB*, LINE -20 dB*, MIC/LINE selectable 2.2k ohms, electronically-balanced, removable terminal block (5 pins) INPUT 3, 4: LINE -20 dB*, 10k ohms, unbalanced, RCA pin jack
Output SPEAKER: 4 ohms, 70 V (83 ohms), 100 V (170 ohms)
removable terminal block (5 pins)/ Speaker: 4 ohms, 70 V (42 ohms) , 100 V (83 ohms)
removable terminal block (5 pins)
S/N ratio MIC 1, 2: 60 dB or more, LINE 1 – 4: 80 dB or more (A-weighted)
Function Parametric equalizer: 5 points settable on each input and output, 20 Hz – 20k Hz +/-15 dB, Q: 0.267 – 69.249
Compressor: ON/OFF settable on Inputs 1 and 2 (OFF by default)
Threshold, Ratio, Attack time, Release time, and Gain are settable independently on each input
Control Mute control, Remote master volume control, Power ON/OFF switch, Ground lift
Indicator Power, Signal, Peak, Protect
Dimensions 210 (W) X 52.5 (H) X 375 (D) mm (8.27″ x 2.07″ x 14.76″)
Weight 3.9kg
