DNH VES-561-54T

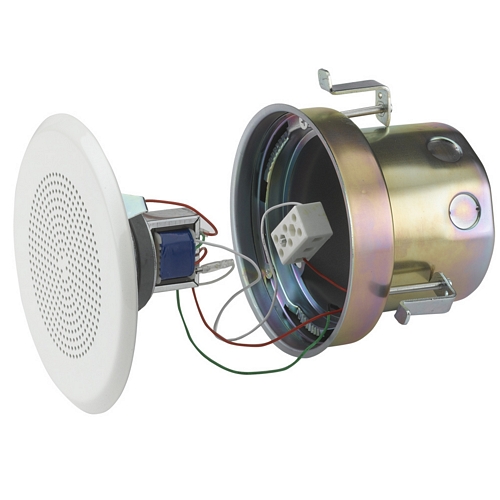

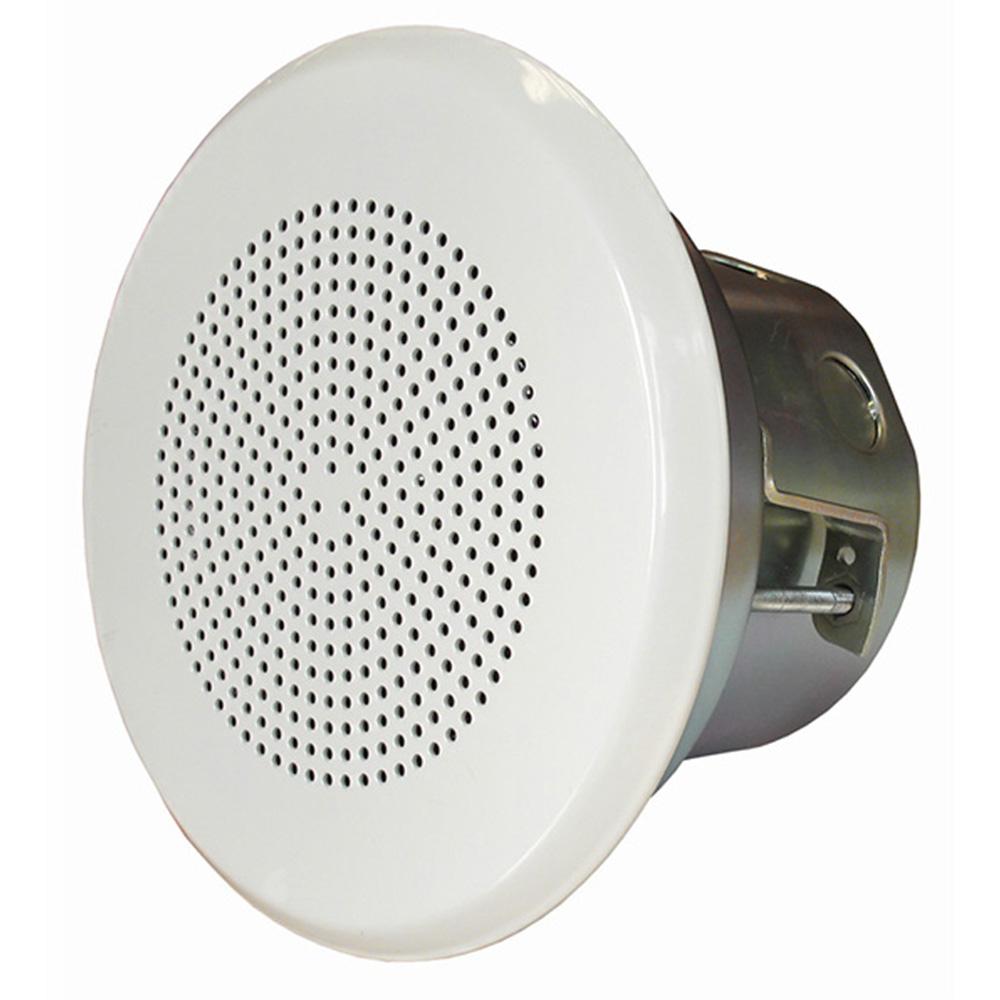

The DNH VES-561-54(T) 5" 6 watt, 100 volt line EN54-24 certified metal ceiling speaker complete with steel firedome, for voice evacuation PA systems.

Features include ceramic terminal block and thermal fuse.

Lightly water resistant, rated IP22.

Also available with capacitor - see VES-561-54T+CAP.

100V IPxx Evac
List Ex VAT: £87.10
Log in for Trade Prices


Rated Power (rms) 6W
Power Taps @ 100V 6W, 3W, 1.5W & 0.5W
Power Taps @ 70.7V ?
SPL (1W/1m) 90dB
Max SPL (rated/1m) 97dB
Frequency Range (-10dB) 180HZ - 12KHZ
Max. / min. amb. temp 90°C / -20°C
Dispersion 1K Hz / 4K Hz 185° / 80°
Termination Ceramic terminals
Material Steel, Aluminium
Colour White
Dimensions mm 266 (10.47) Dia. X 90 (3.54) Height mm. (in.)
Weight (kg) 1.1
Mounting 3 screws
IP rating IP22
