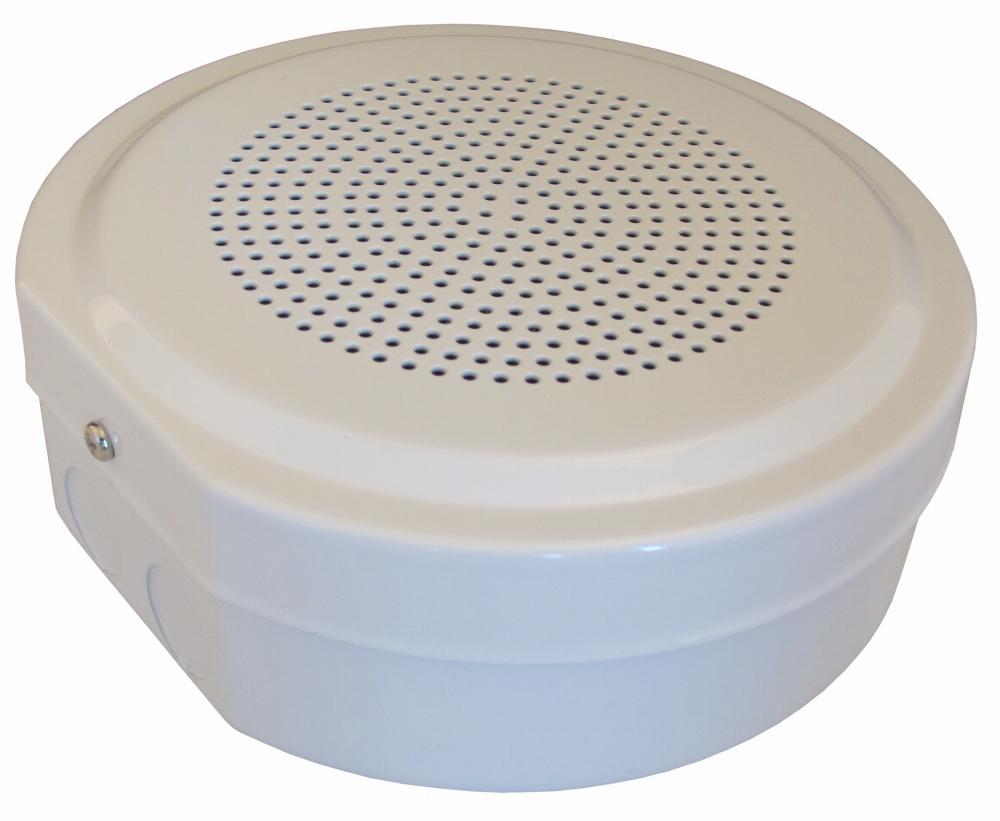

DNH SAFE-561-54T
The DNH SAFE-561-54(T) EN54-24 circular cabinet loudspeaker is rated at 6 watts, 100v line and is certified for EN54-24 voice alarm applications.
Lightly water resistant, rated IP22. Contructed from steel.
SPECIFICATIONS
| Rated Power (rms) | 6W |
| Power Taps @ 100V | 6W, 3W, 1.5W, 0.5W |
| SPL (1W/1m) | 90dB |
| Max SPL (rated/1m) | 97dB |
| Frequency Range (-10dB) | 100HZ - 10KHZ |
| Dispersion 1K Hz / 4K Hz | 160° / 85° |
| Termination | Ceramic terminals |
| Max. / min. amb. temp | 90°C / -20°C |
| IP Rating | IP22 |
| Material | Steel |
| Colour | White (RAL9010) |
| Weight (kg) | 1.2kg |
| Dimensions (H x W x D) mm | 169 dia x 65 |
| Mounting | 4 screws |
