Ecler eHSA2-150
Ecler eHSA2-150
Click to expand

Ecler eHSA2-150

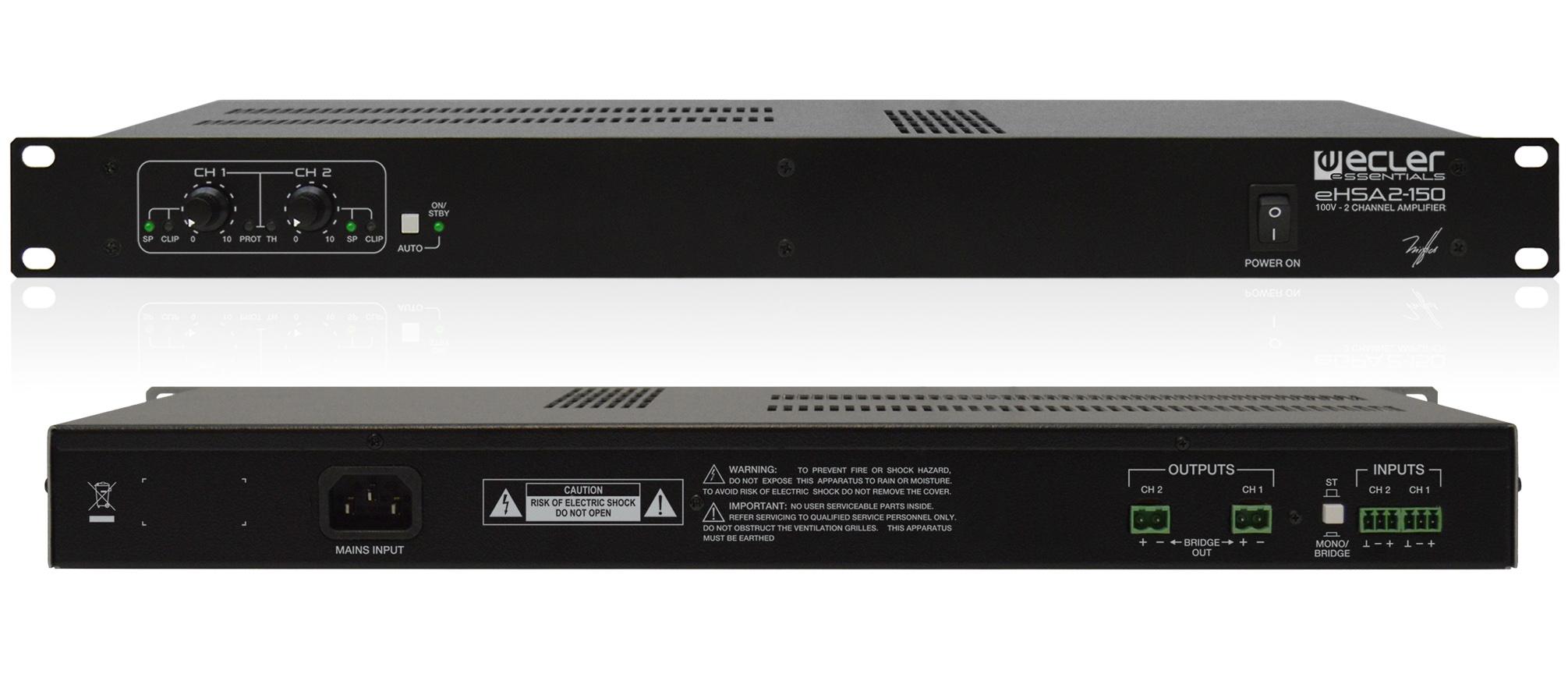

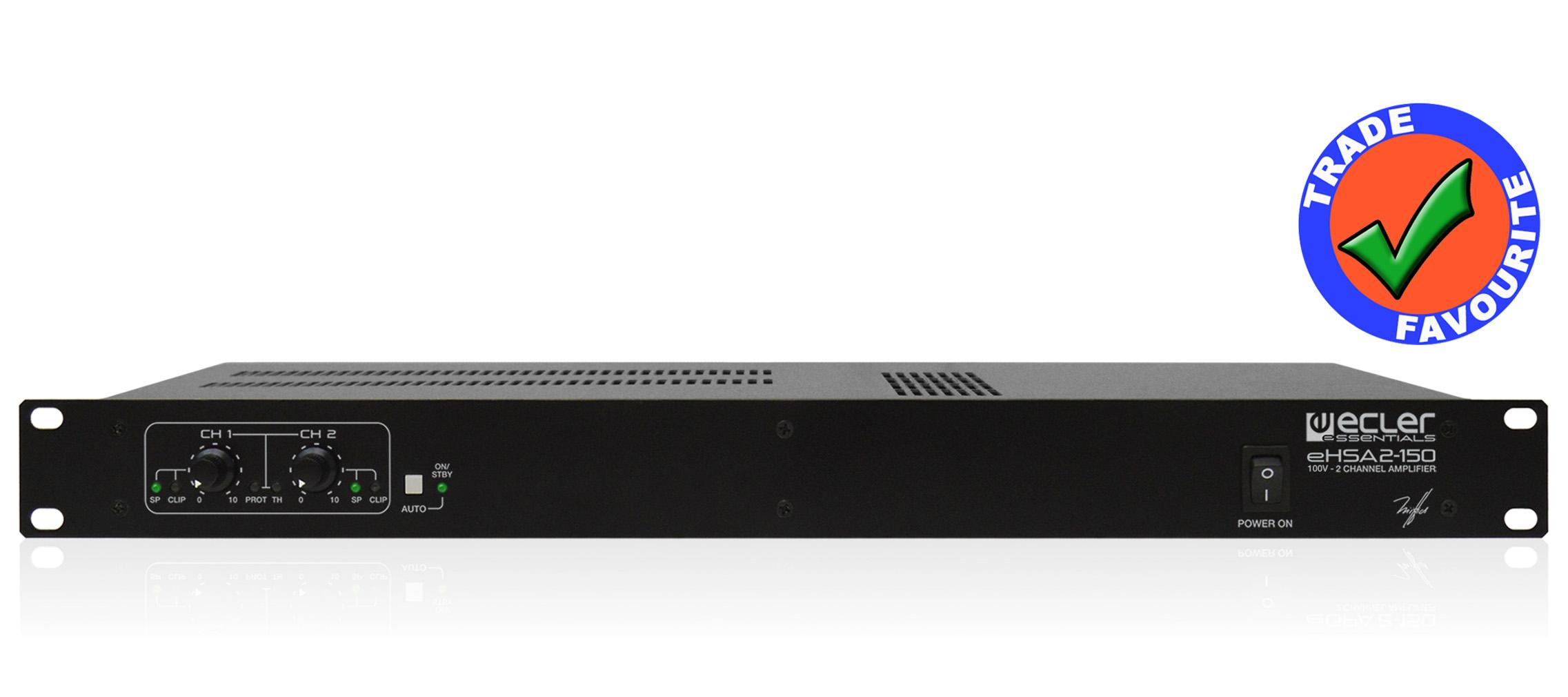

The Ecler eHSA2-150 high impedance stereo power amp, one of our favourite products, is rated at 2 x 150 watts rms, 70 / 100 volt line.

The eHSA2150 benefits from a high efficiency design and uses convection cooling for fan free, silent operation and reliability.

  • 2 mono balanced inputs (Euroblock terminals)
  • 2 x 150 W RMS output (70/ 100V line level)
  • Euroblock output connectors
  • High efficiency, auto stand-by function and convection cooling (fanless, 100% silent)
  • Thermal protection
  • Overload protection
  • Anti-clip system
  • Volume control knobs on front panel



100V multi-ch 1U
List Ex VAT: £651.63
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

POWER @ 1kHz 1% THD, 100V output



1 Channel @ 66Ω

145 WRMS

All Channels @ 66Ω

142 WRMS

Frequency response (-1 dB, -3dB)

20Hz - 30kHz

Filter (High-Pass) 3rd order Butterworth

50Hz

THD+Noise @ 1kHz Full Power

<0.05%

S+N/N 20Hz - 20kHz @ 1W/4Ω

>85dB

CMRR

>55dB

Damping factor 1kHz @ 8Ω

>150

Channel crosstalk @ 1kHz

>55dB

Input Sensitivity / Impedance

0dB/>20kΩ

Anticlip @ 2dBV input

<1% THD

Mains voltage

See characteristics in the back of the unit.

Power consumption



pink noise, 1/8 power @ 4Ω

63W / 74VA

pink noise, 1/3 power @ 4Ω

139W

Idle

19W

STBY

13W

Efficiency @ Pmax

77%

Dimensions (Handle excluded)

440x44x161mm

Weight

6.05kg

DOWNLOADS

Ecler eHSA2-150 Power Amp Datasheet
