Bosch LH2-UC06

Bosch LH2-UC06

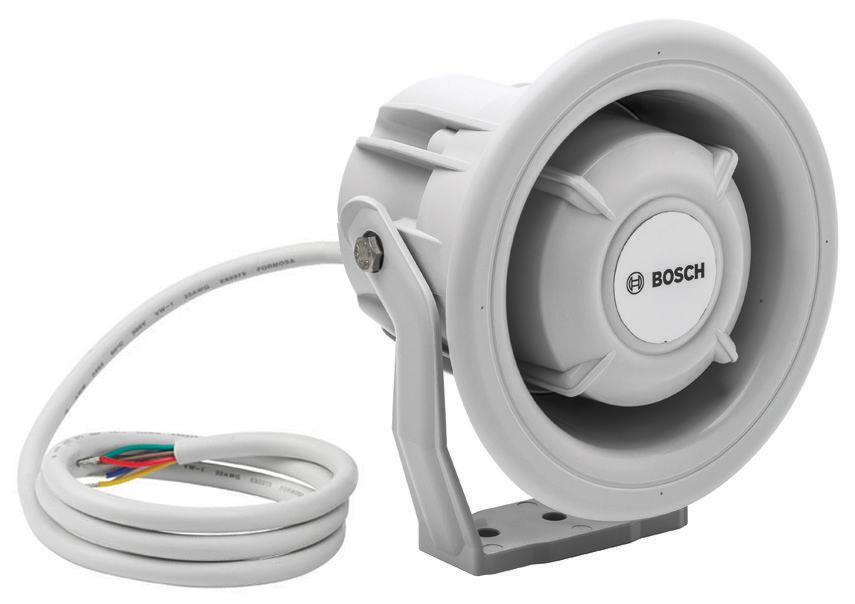

The Bosch LH2-UC06 compact horn loudspeaker provides excellent sound reproduction in marine applications and industrial environments. Rated at 6 watts, 100 volt line.



The rugged LH2UC06 is water and dust protected to IP67, and resistant to the corrosive effects of seawater and most industrial atmospheres. It is therefore ideal for marine use as well as humid or chlorinated environments.



A 1 metre colour coded 6-core cable enables the required power tapping to be selected without the need to open the unit during installation.



Constructed from high impact ABS and supplied with a corrosion resistant ABS mounting bracket. The strong, fire-resistant and corrosion resistant material is chemical resistant and thermally stable, making it ideal for even the harshest environments.

  • Extreme compact size (H x W x D) 159 x 143 x 136 mm (6.26 x 5.63 x 5.35 in)
  • Max. 105 dB Sound Pressure Level at 6 W rated power
  • Optional flush mounting in ceiling or wall.
  • Suitable for use in humidity, chlorine and salty environments
  • Type approval certified EN60945
  • Water-and dust protected IP 67
100V IPxx
List Ex VAT: £90.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Description Ceiling loudspeaker
Maximum power 9 W
Rated power 6 W (6/3/1.5 W)
Sound pressure levelat 6 W power / 1 W (1 kHz, 1 m) 94 dB / 86 dB (SPL)
Sound pressure levelat 6 W power / 1 W (4 kHz, 1 m) 103 dB / 95 dB (SPL)
Opening angleat 1 kHz / 4kHz (-6 dB) 180° / 85°
Effective frequency range(-10 dB) 90 Hz to 20 kHz
Rated voltage 100 V
Rated impedance 1667 Ohm
Electrical connection Flying leads: Length is 150 mm (5.90 in)
Diameter 180 mm (7.08 in)
Mounting cut‑out 167 mm (6.57 in)
Max. ceiling thickness 5 to 25 mm (0.19 to 0.98 in)
Maximum depth 59 mm (2.32 in)
Material (frame, front grille) ABS
Weight 475 g (1.04 lb)
Colour White (RAL 9010)





DOWNLOADS

Bosch LH2-UC06 Compact Horn datasheet
