Sennheiser XSW 1-835

The Sennheiser XSW 1-835 is a hand held UHF wireless radio microphone system with a superior dynamic carioid capsule, ideal for vocals.

Choose Channel 38; XSW 1-835-GB or licence free Channel 70; XSW 1-835-E. (Please contact us about other frequency ranges available)

Up to 10 compatible channels are available in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters and excellent for live sound. The microphones feature Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid - ideal for speech) or e835 (superior dynamic, cardioid - great for vocals).

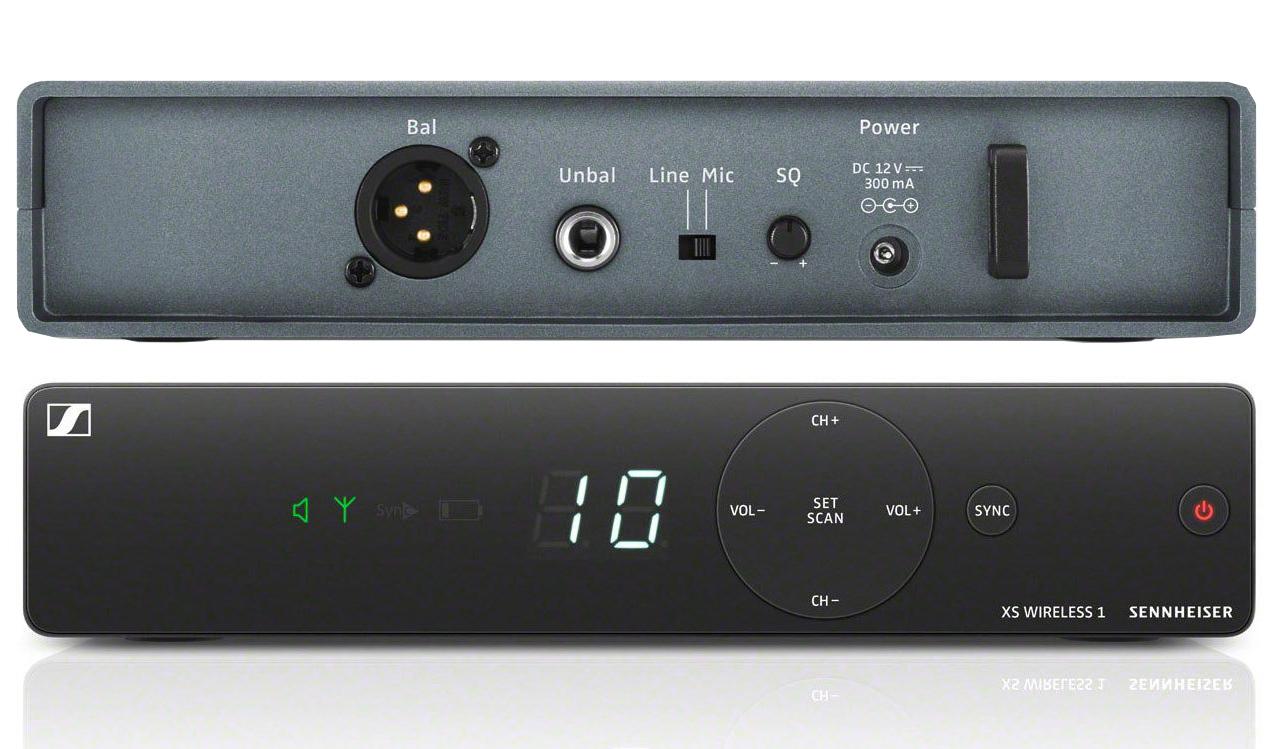

The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

Features:

  • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e835)
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

The XSW 1-835 package includes:

  • 1 receiver EM-XSW 1
  • 1 handheld transmitter SKM 835-XSW
  • 1 microphone clamp MZQ 1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries

Sennheiser part number 507119

CH38 CH70 UHF
List Ex VAT: £257.50
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Dimensions approx. 200 x 42 x 127 mm
THD, total harmonic distortion ≤ 0.9%
Pick-up pattern cardioid
Signal-to-noise ratio ≥ 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Operating time approx. 10 hrs
Modulation wideband FM
Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing rugged ABS housing
Dynamic range dynamic
Frequency 8 frequency banks, each with up to 10 factory-preset channels
Frequency range E: 821-832 MHz, 863-865 MHz  or GB; 606 - 630 MHz
Sensitivity < 3 μV at 52 dB(A)rms S/N
Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity 1.5 mV / Pa
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range 45 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle double superheterodyne
Diversity principle Antenna switching diversity via internal antennas
Receiver
Weight approx. 340g
Power supply Receiver: 12 V DC nom. / 300 mA
AF frequency response Receiver: 50 to 16,000 Hz (–3 dB)
Microphone
Weight approx. 245g
Power supply Microphone: 2 AA size batteries, 1.5 V
AF frequency response SKM 835: 80-16,000 Hz
