Bosch LBB1997/00

Bosch LBB1997/00

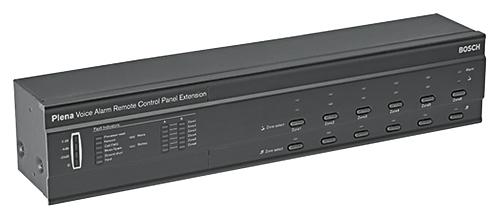

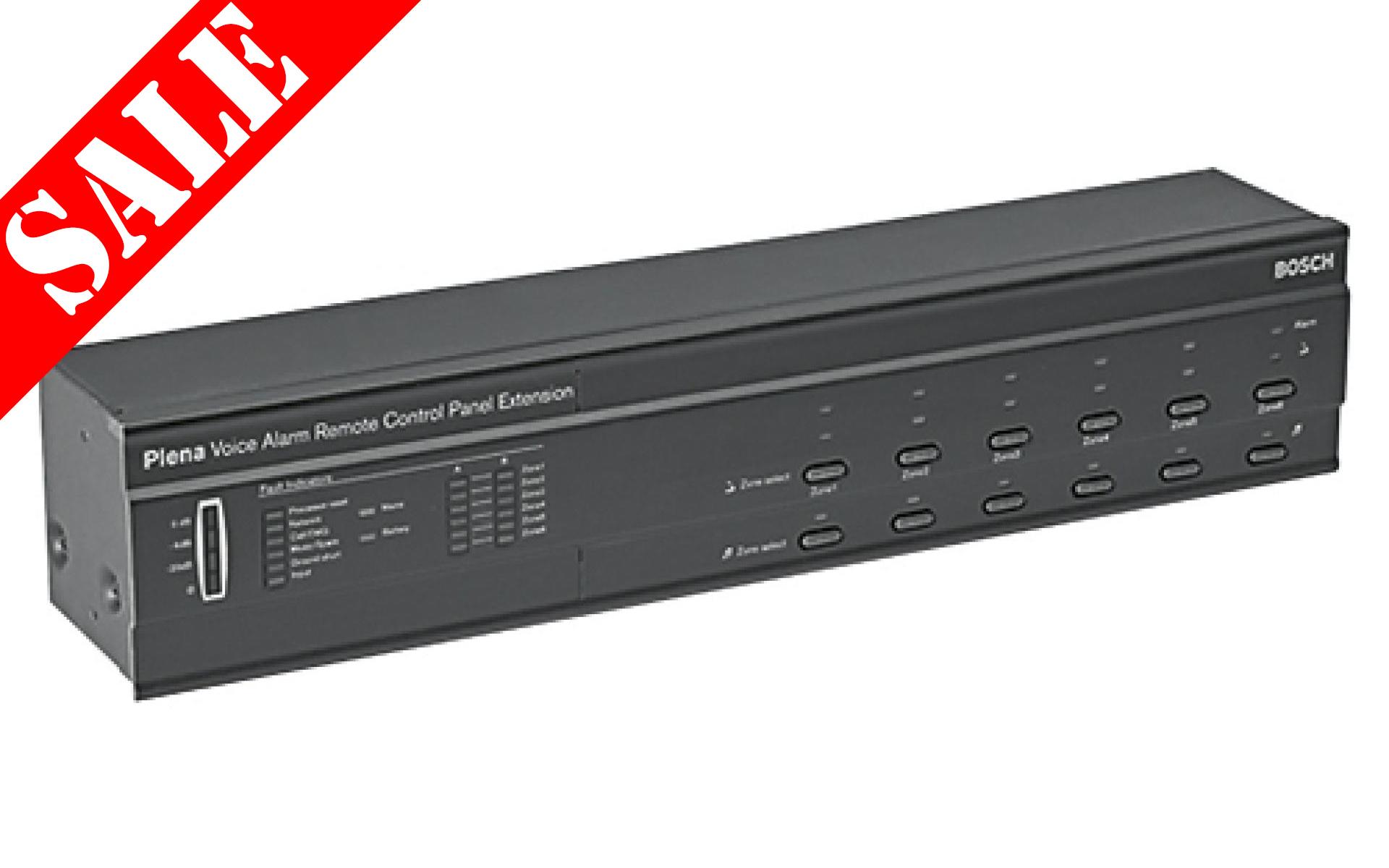

The Bosch LBB1997/00 voice alarm remote control panel allows the system to be remotely controlled from one or two remote locations and duplicates the front panel of the LBB1992/00 Alarm Router front panel. One extension is needed for each router.

CLEARANCE - ONE ONLY. Box has been opened and is tatty.

The display indicates the presence and level of calls running in the system and fault indicators give detailed information of any faults.

Connection is via CAT5 and rack mount brackets are included.

  • Remote control of the voice alarm routers
  • EMG and background (BGM) zone selections
  • EMG state and fault indicators
  • One extension per router
  • Power supply from the remote control panel (kit)
Evac
List Ex VAT: £542.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power supply



Voltage

24 VDC, +15% / -15%

Current typical

50 mA

Current max (indicator test)

200 mA (indicator test)

Relay contacts

30 V, 1 A

General



Dimensions (H x W x D)

88 x 430 x 90 mm(19 in wide, 2U high)

Weight

Approx. 2 kg

Mounting

Stand-alone, 19” rack

Colour

Charcoal

DOWNLOADS

Bosch LBB 1997/00 Plena Voice Alarm Remote Control Extension datasheet
EN54-16 Certificate of Conformity, Bosch LBB19xx, PLN-x,
EN54-16 EC Certificate of Conformity: LBB1935, 1990, 1938, 1992, 1995, 1996, 1997, 9081
EC Declaration of Conformity: Bosch LBB 1990/00, 1995, 1996, 1997, 9081
