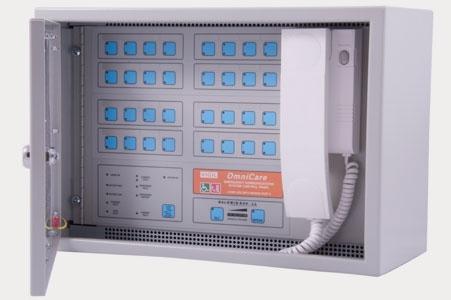

The Baldwin Boxall BVOC8M 8 way control panel is designed for use with the Omnicare addressable loop-wired emergency voice communication system which allows disabled refuge, fire telephones, steward telephones and disabled toilet alarms to be connected to one panel.

Omnicare can be easily networked with the ability to add multiple control panels on a system. This enables local zone/area control with ‘gatehouse/management’ control on a master panel.

The control panel features an output for an external call indicator. This is designed for use in situations where the control panel is mounted in an unmanned area. Using this output, a remote indicator can be fitted in a location where it is visible/heard such as in a reception area. The output has a programmable delay feature so that calls answered at the panel are not relayed to the remote lamp/buzzer indicator.

Panels are available in several sizes with from four-way to 128-way - please contact us for further information on these options if the 8 way control panel is insufficient for you needs.

Omnicare has been designed and built to meet BS9999:2008, BS5839-9:2011 and BS8300:2009 (for the disabled toilet alarm).

• Digital audio – full duplex or speech steered (remote dependent).
• One master and multiple slaves can be networked on one system (panels are configured on installation).
• Surface mountable or optional flush mounting with bezel.
• Dedicated button control for each outstation with status LED indicators.
• Lockable glazed door.
• Remote units are connected to the master control panel in a loop configuration, using fire rated enhanced four-core cable.
• Fully monitored and battery backed (a separate box to house batteries supplied with panels larger than 32-way).
• The system is addressable via the remote units.
• Choice of remote units, including disabled refuge, advance disabled refuge, steward telephone, fire telephone, combined unit and disabled toilet alarms
• Toilet alarms are connected to the system via a repeater unit
