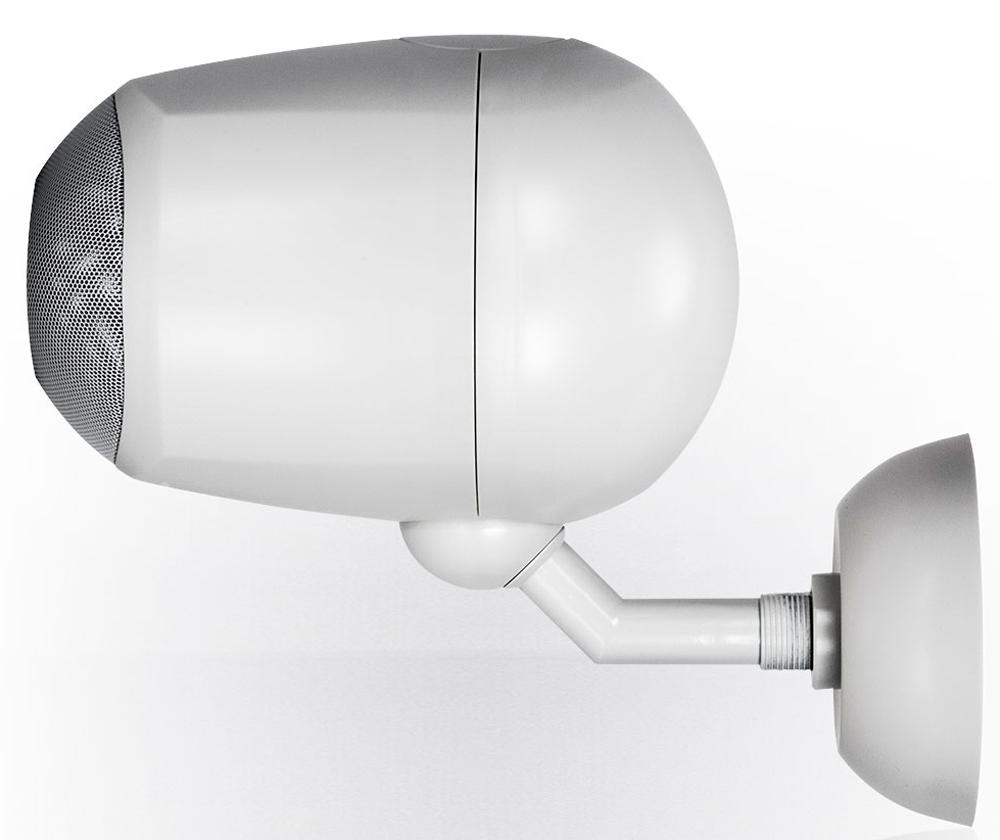

RCF DP 5EN

The RCF DP 5EN EN54-24 certified water resistant sound projector speaker incorporates a 5" full range speaker and is rated at 20 watts, 100 volt line.

Water resistant, rated IP65.

Ideal for emergency message broadcasting in a voice evacuation system as well as high quality background music.

Safety features on the DP5EN include ceramic terminals and thermal fuse.



  • 5’’ full range speaker for alarm voice messages broadcasting and high quality background music
  • ABS cabinet with steel mesh grille.
  • It can be installed both indoors and outdoors (IP 65 protection grade).
  • Equipped with transformer for 100 V (/ 70 V) constant voltage lines.
  • Internal power setting.
  • Ceramic screw terminal for connection.
  • Internal thermal fuse.
  • Colour: white.
100V IPxx Evac
List Ex VAT: £136.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Loudspeaker

5”

Input voltage

100V - (70V)

Power

20 – 10 – 5 – 2.5W (100V)

Input impedance

500 Ω – 1 kΩ – 2 kΩ – 4 kΩ

Sensitivity

88 dB (1 W / 1 m)

Max SPL @ 1m

101dB

Frequency response

80 Hz ÷ 20 kHz (–10 dB)

Horizontal Coverage

160°

Enclosure material

ABS

Body & grille colour

White

IP rating

IP65

Dimensions (without bracket)

180 mm Ø x 260 mm

Net weight

2.8kg
