RCF BD 2412EN

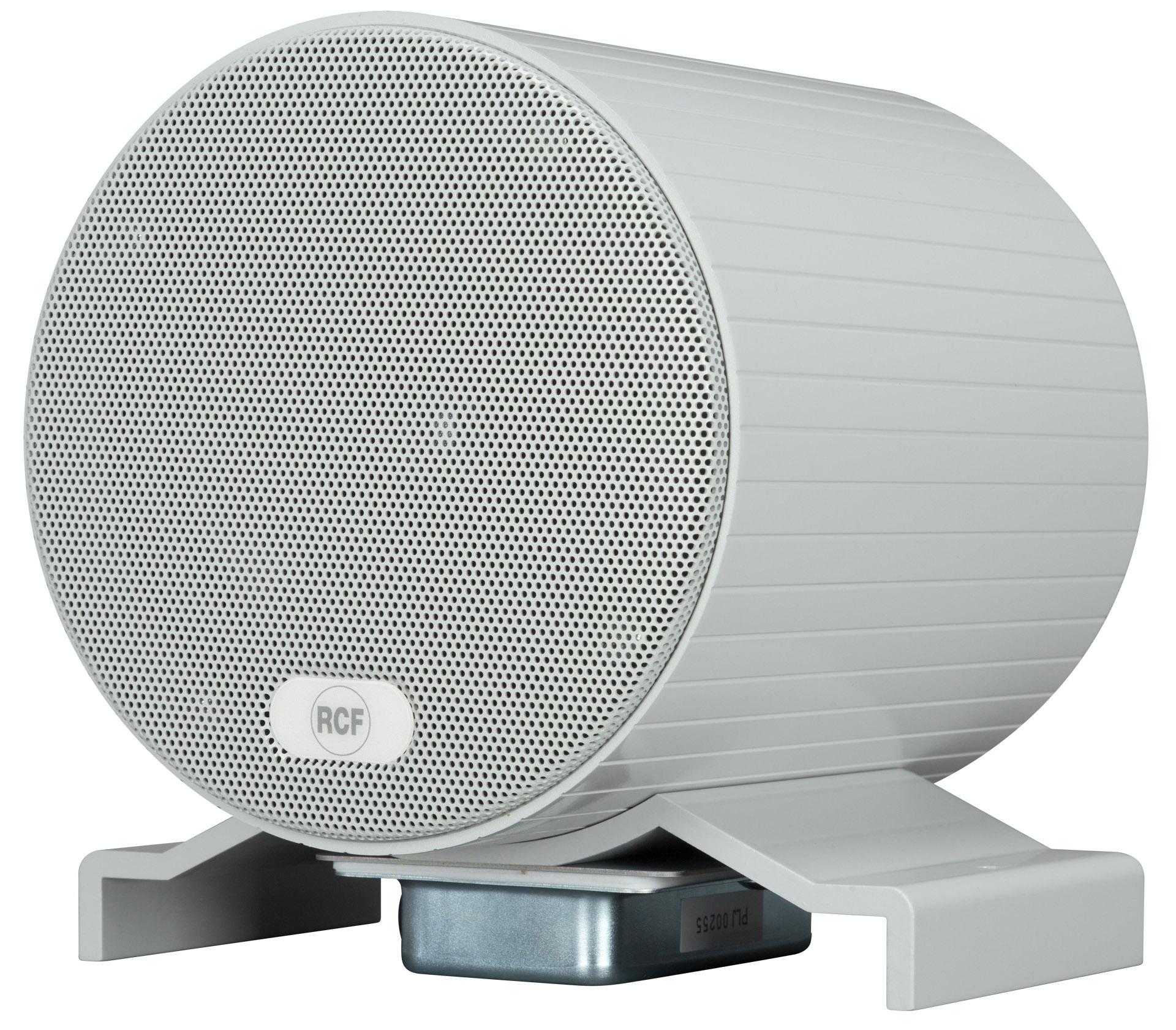

The RCF DP 1420EN EN54-24 water resistant sound projector speaker incorporates a 5" full range speaker and is rated at 20 watts, 100 volt line.

The aluminium unidirectional projection speaker is water resistant, rated IP66 and is mounted using the supplied aluminium U shaped bracket.

Ideal for emergency message broadcasting in a voice evacuation system especially within train stations, underground stations, factories and warehouses.

Safety features on the DP1420EN include ceramic terminals, thermal fuse and internal fire resistant cable.



  • Compact Bidirectional sound projector with high acoustic performance
  • EN 54-24 compliant with ceramic termination block, thermal fuse and internal fire-resistant cable
  • Water resistant, rated IP 66, suitable for outdoor use
  • Ideal for train stations, underground stations, car parks, factories, warehouses, and PA systems in general
  • Rated 20 W RMS with tappings at 20, 10 and 5 W (100V / 70V)



100V IPxx Evac
List Ex VAT: £153.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Loudspeaker

2 x 5”

Input voltage

100V

Power

20 – 10 – 5 W (100V)

Sensitivity

89 dB (1 W / 1 m)

Max SPL @ 1m

102dB

Frequency response

130 Hz ÷ 20 kHz (–10 dB)

Angle of Coverage

130° (1 kHz), 50° (4 kHz)

Enclosure material

Aluminium alloy with steel grille

Body & grille colour

Light Grey

IP rating

IP66

Dimensions (without bracket)

146 mm Ø x 184 mm

Net weight

3.3 kg
