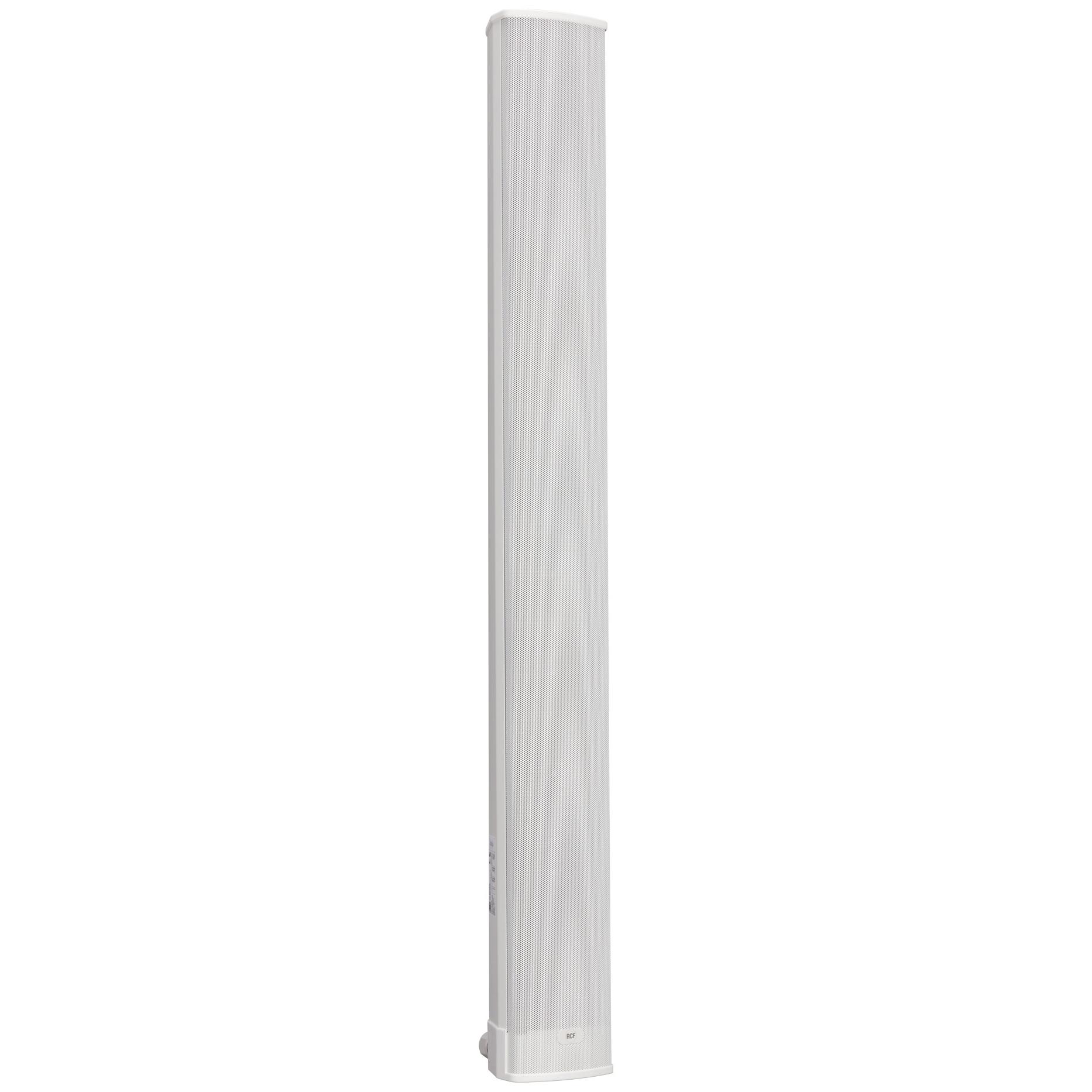

RCF CS 6940EN

The RCF CS 6940EN slimline 2 way column loudspeaker is compliant with EN54-24 for use in voice evacuation systems.

Rated at 40 watts RMS and suitable for 70v / 100 volt line distributed sound systems only. The power level can be selected via a rotary tappingd selector.

Contains 8 x 3.5" diameter round speakers and one 20mm dome tweeter.

Finished in white and supplied with articulated wall mounting bracket.

The RCF CS6940EN column speaker is ideal for use in church sound systems as well as auditoriums, halls, and other houses of worship and is water resistant, rated IP66, so also suitable for use outdoors.

  • Ideal for speech reproduction with high intelligibility in acoustically difficult environments, both indoors and outdoors, also suitable for music
  • Music power/RMS: 80/40W
  • Eight 3.5" diameter speakers & one 20mm tweeter, filtered and connected for improved control of vertical dispersion
  • Weather-resistant construction IP 66 for use also outdoors, sturdy hinged support in resin, stainless steel fasteners
  • Aluminium body with steeel front grille, bake-painted RAL 9003 White
  • Articulated support for wall mounting included
100V IPxx Evac
List Ex VAT: £466.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response (-10dB)

140Hz – 20kHz

Max SPL @ 1m

109dB

Max SPL @ 4m

97dB

Horizontal Coverage Angle

Horizontal: 194°
Vertical: 30°

System Sensitivity

95dB

System Sensitivity 1W @ 4m

83dB

Power Handling

40W RMS

Peak Power Handling

160W Peak

Protection

Thermal Fuse

Transducers

Dome Tweeter: 0.75”
Full Range Driver:8 x 3”

Input / Output Connectors

Ceramic Screw Terminals

Constant Voltage Transformers

70/100V

Power Tappings

40, 20, 10, 5, 2.5W (100V)

IP Rating

IP66

EN54-24

Yes

Construction

Aluminium Cabinet & Grille

Colour

White RAL9003

Dimensions H x W x D

995mm x 114mm x 96mm
39.17” x 4.49” x 3.78”

Weight

7kg / 15.43lbs
