Contacta STS-K002L-G & STS-K002L-B
Click to expand

Contacta STS-K002L-G & STS-K002L-B

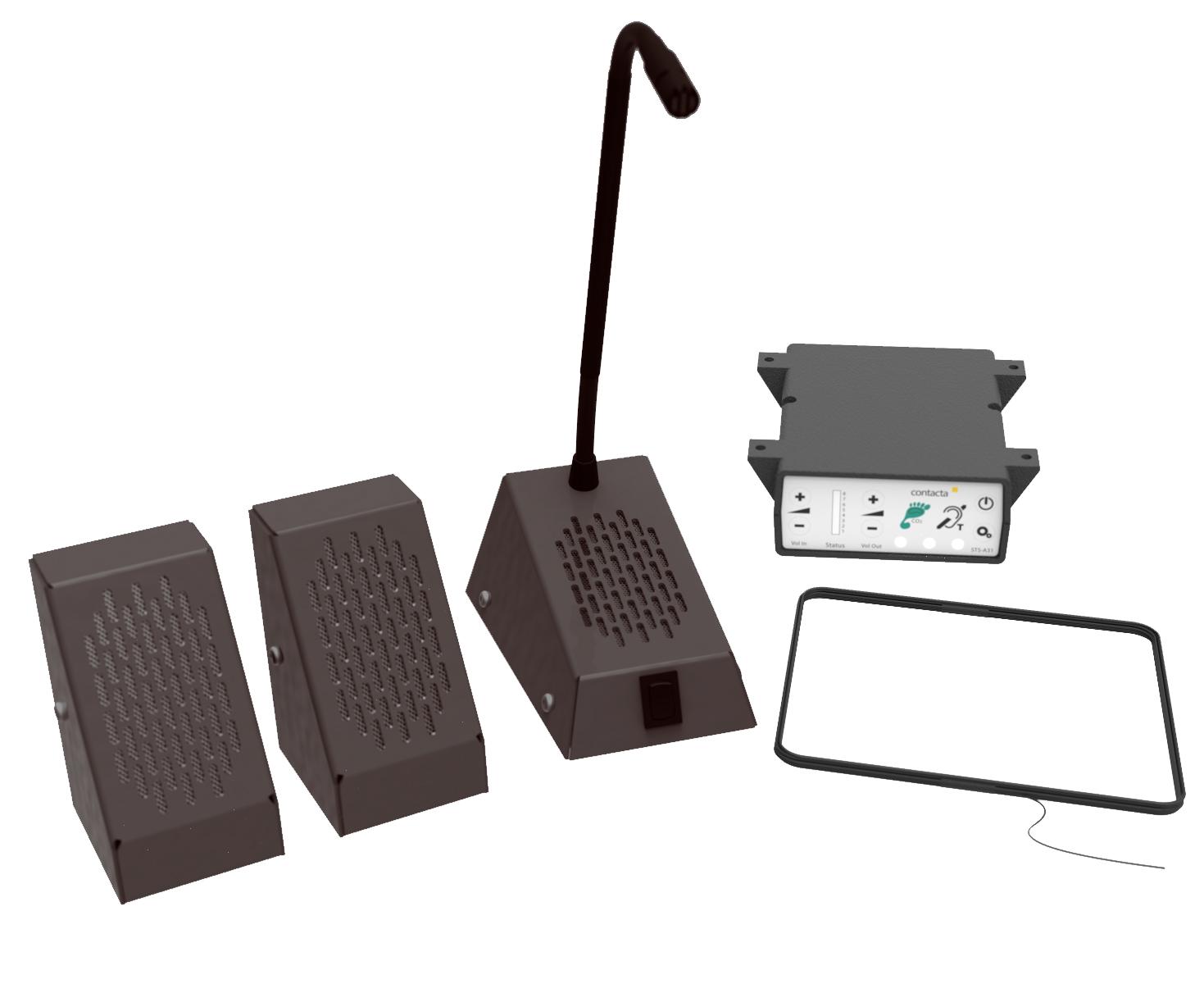

The Contacta STS-K002L-G and STS-K002L-B Surface Mount Talk Through Glass speech transfer system helps customers hear and be heard when needing to talk through glass safety screens and partitions. An integral loop driver also helps hearing aid users to hear more effectively by using their Telecoil switch.

Such screens are a vital addition to reception desks in Hospitals & Doctors Surgeries during the current Coronavirus outbreak.

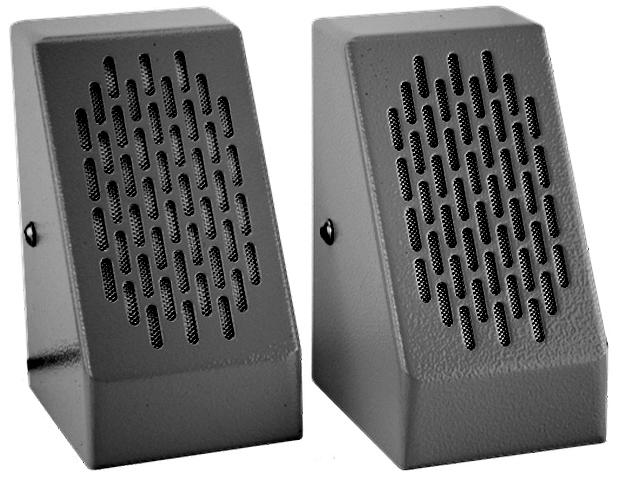

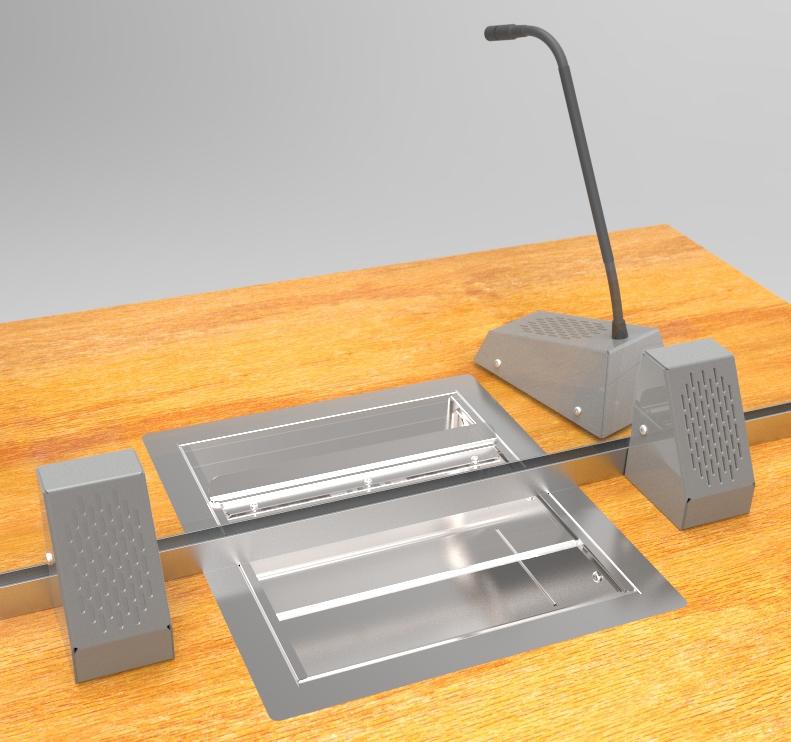

This unit is especially quick & easy to fit as the speakers are surface mounted.

The customer facing speakers are freestanding to suit your installation and the microphone is built in too.

Available in grey (STS-K002L-G) or black (STS-K002L-B).

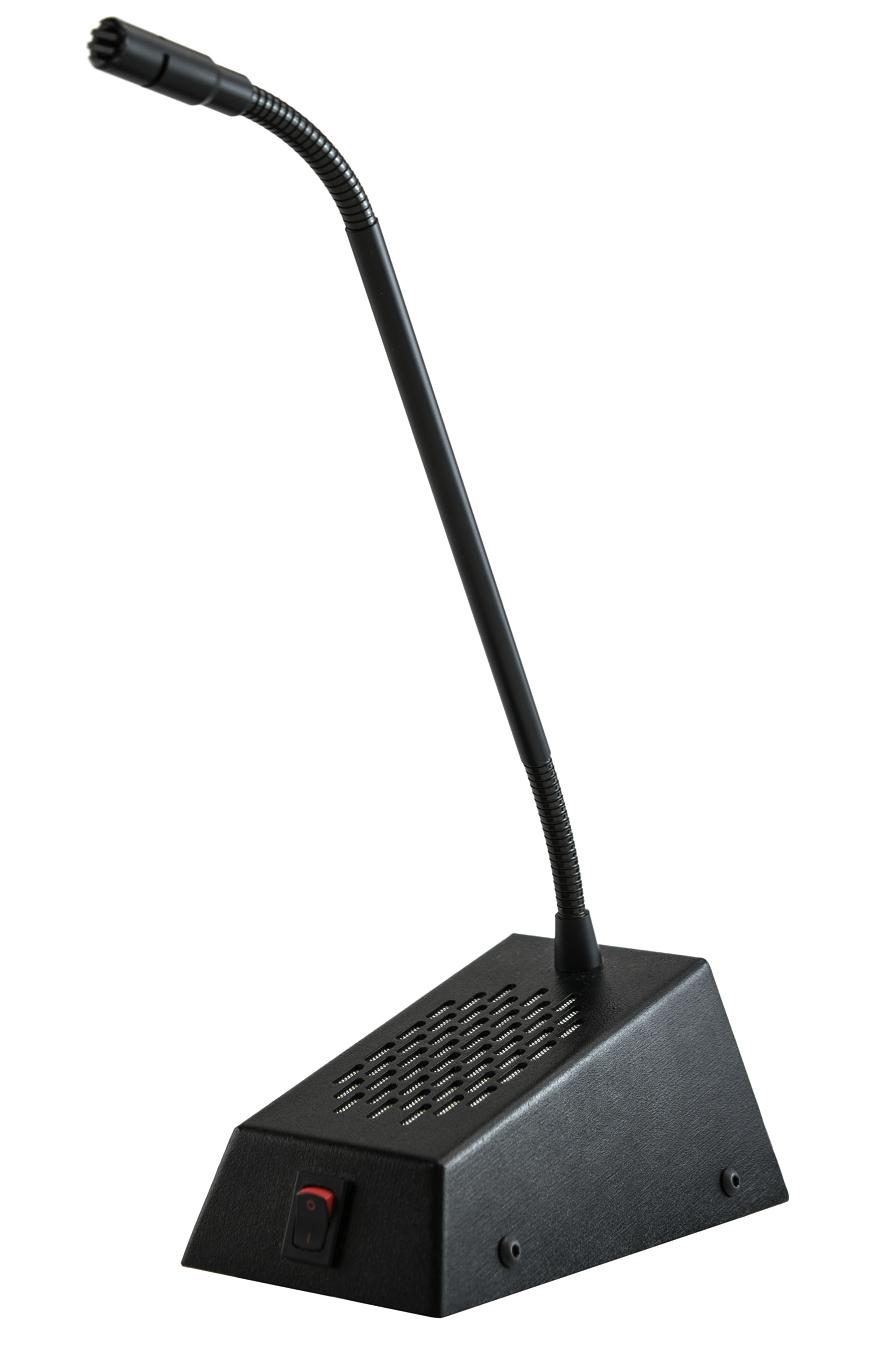

The noise cancelling staff microphone has an integral speaker and benefits from a semi-rigid stem, adjustable neck and mute switch. This will be supplied in grey (STS-SU1-G) or black (STS-SU1-B) to match the rest of the system.

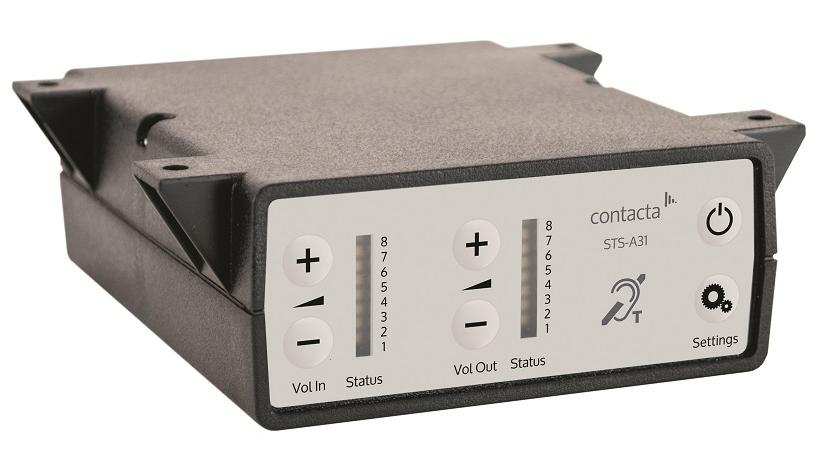

The energy saving STS-A31 amplifier offers full duplex communication and it can be fitted easily to the underside of the counter using the built in mounting points. It also has a constant current loop driver for the IL-AE99 hearing induction loop also supplied in the kit.

.

List Ex VAT: £481.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Surface Mounted Speaker / Microphone Unit



RMS

5W

Impedance

Output

SPL 1W @ 1M 85dB

Frequency Response

150Hz – 10300Hz

Staff Mic Unit



RMS

5W

Impedance

4 Ω

Output

SPL 1W @ 1M 85dB

Frequency Response

150Hz – 10300Hz

Amplifier



Supply Voltage

12 - 14 VDC

Quiescent Current

100mA typical

Operating Current

2A typical on speech peaks

Power Switch

Push on - push off
(tactile switch under membrane)

Microphones

Electret, supply 5V via 2.2KΩ load resistor

Speaker Output Power

RMS: 2.5W / 8Ω , 4.4W / 4Ω

Loop Drive Compliance

Constant curent, bounded by 4V RMS & 2A RMS

Total Harmonic Distortion

<5% (loop & speakers)
