Audio Technica ATW-R1440

The Audio Technica ATW-R1440 wireless microphone ‘quad’ receiver is part of the System 20 Pro Series of wireless mic systems operating in the 2.4 GHz range, licence free and totally TV interference free too.

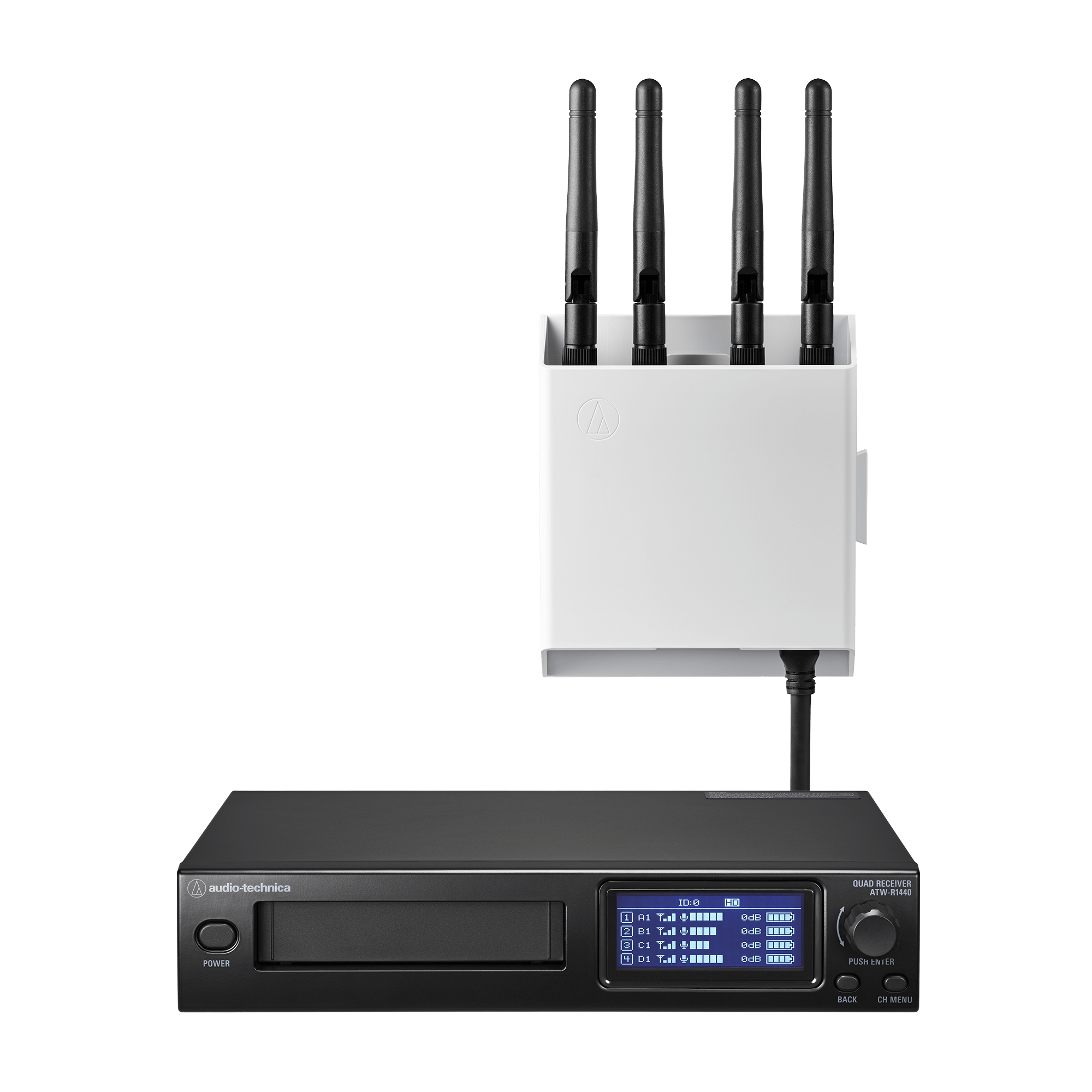

The half rack width ATW-R1440 receiver set consists of an ATW-RC14 receiver chassis and docked ATW-RU14 receiver unit. This versatile design enables the receiver unit to be mounted remotely, if required, up to 328 feet away via Ethernet cable.

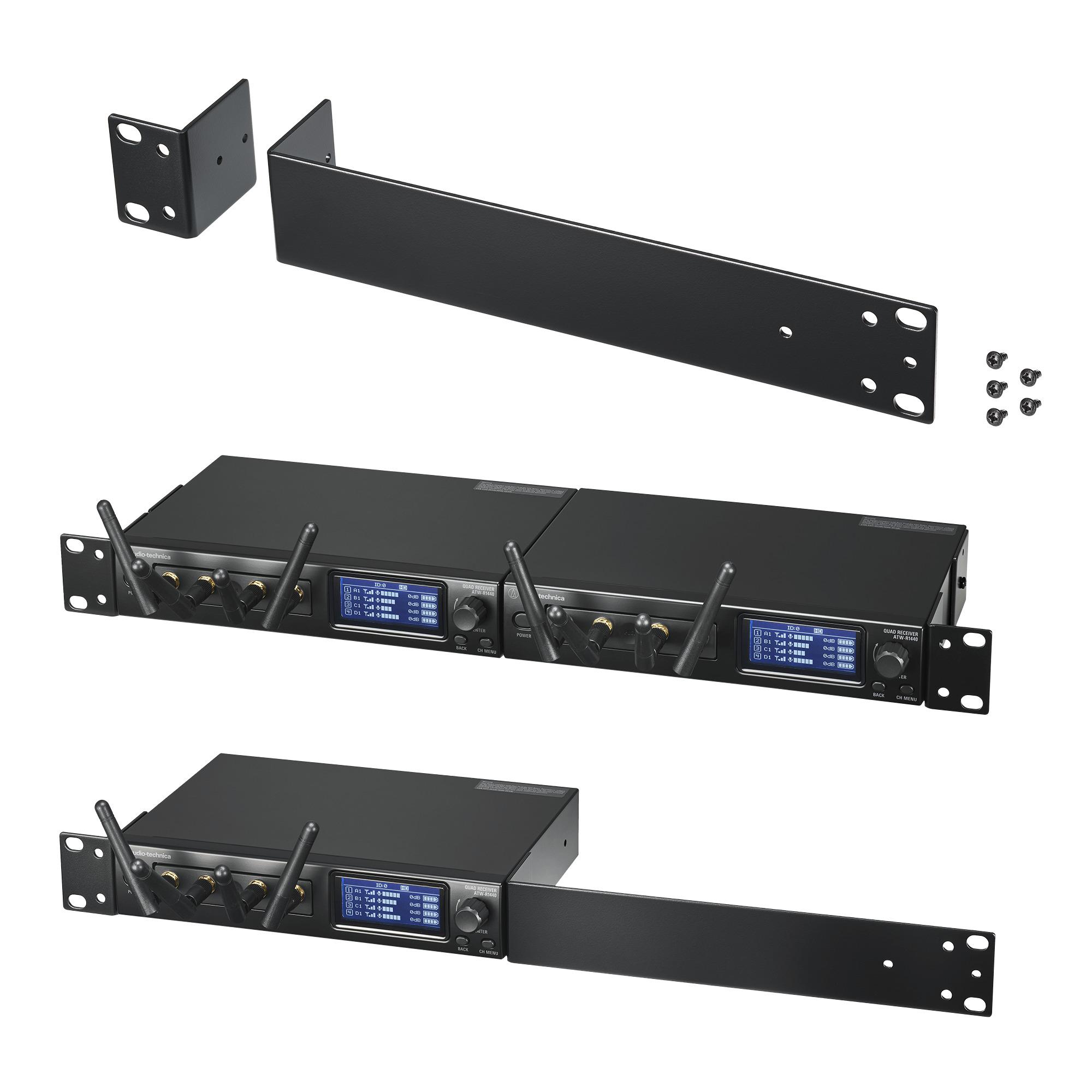

The ATW1440 is supplied with rack mount bracket to enable mounting of a single receiver or 2 receivers side by side in a 1U rack space.

  • Half-rack chassis capable of receiving up to four transmitters
  • Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
  • Switch between Standard (10 channels) and HD (20 channels) modes
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis can be linked and used simultaneously
  • Monitor transmitter status, audio level, remaining battery time, and other information in A-T Wireless Manager
  • Auto-lock function prevents unintended operations
  • Warranty: 2 Years

Building on the success of the System 10 PRO 2.4 GHz wireless microphone systems, Audio Technica now offer System 20 PRO with a self-managing, plug-and-play 2.4 GHz system that’s scalable to 20 channels and delivers the same dependable, high-quality audio.

Capable of receiving up to four transmitters, the System 20 Pro ATW-R1440 receiver makes installation a breeze. Receiver units can remain docked in the half-rack chassis or be mounted remotely (up to 328 feet away) via Ethernet cable for added versatility. Up to five chassis can be linked using the included RJ12 cable, creating a stable, multichannel system with the simultaneous use of up to 20 channels. But the user is always free to choose the most effective operation mode for a given situation: Standard mode (10 channels) to minimise latency or HD mode (20 channels) to maximise channel count.

Audio-Technica’s Wireless Manager software enables seamless setup & management of multiple UHF, 2.4 GHz and DECT wireless systems from a single screen. In addition, AES128 encryption comes standard, providing security and reliable operation.

If purchasing a complete system, the transmitters are paired and ready to use out of the box and offer all-day operation on a full charge.

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
  • User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimise latency or maximise channel count, respectively
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis can be linked and used simultaneously
  • Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations

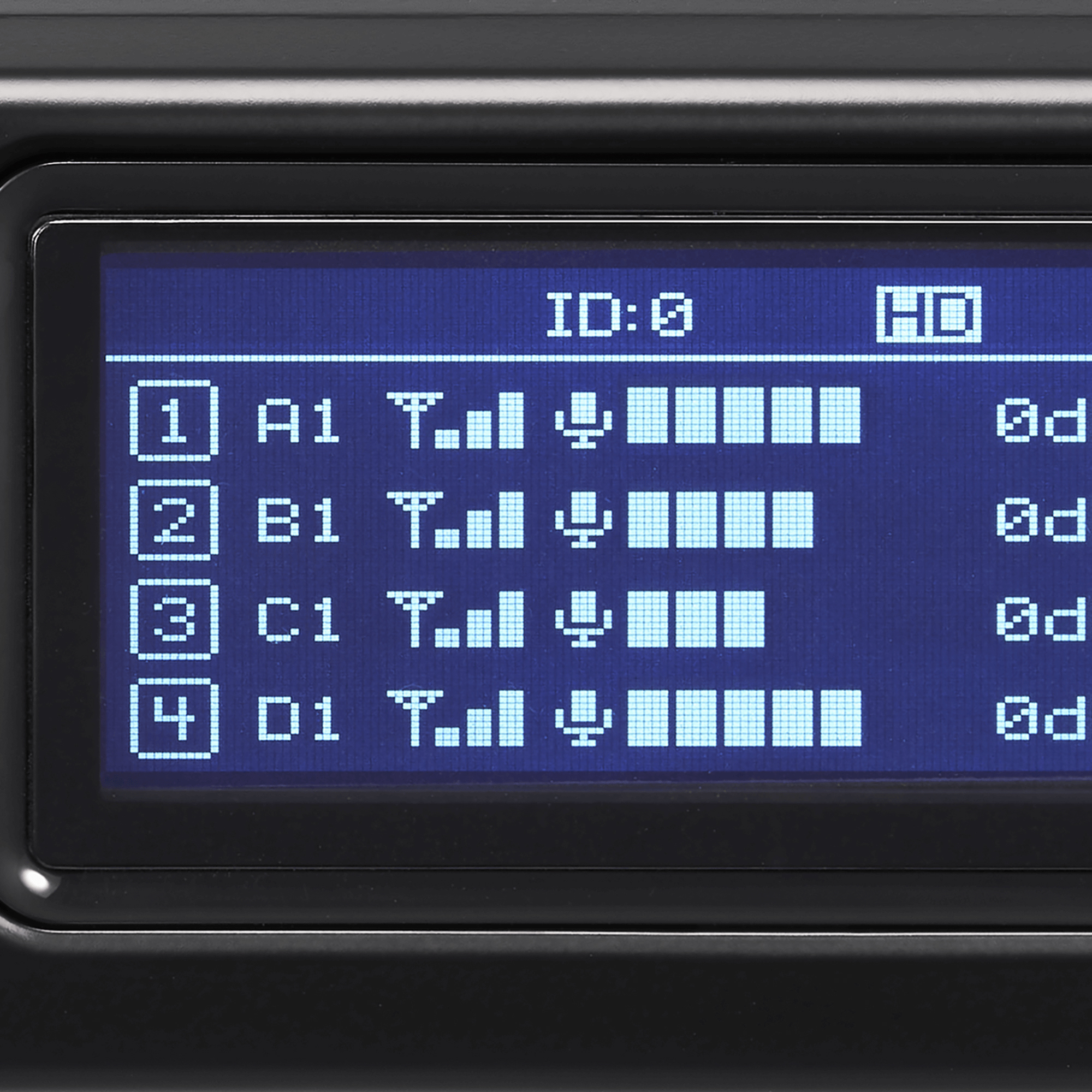

  • Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
  • Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
  • Compatible with Audio-Technica’s Wireless Manager software for centralised management of system settings and operations
  • Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
  • AES128 encryption for security
  • Compatible with Syslog protocol
  • Ability to configure, monitor, and save device settings as projects in
  • Wireless Manager
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
  • Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
  • Supports mixed output for situations with limited input channels
2.4ghz
List Ex VAT: £509.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Overall System

Operating Frequencies

2,402~2,480MHz

Dynamic Range

120dB (A-weighted), typical

Total Harmonic Distortion

< 0.05%, typical

Maximum Simultaneous Use (recommended)

Standard: 10 channels, HD mode: 20 channels,
It depends on the region and environment.

System Frequency Response

20 to 20,000Hz, Varies depending on the microphone to be installed.

Delay

Standard: 2.8ms, HD mode: 6.7ms

Audio Sampling Rate

Standard: 24bit/48kHz, HD mode: 24bit/48kHz

Encryption Method

AES128

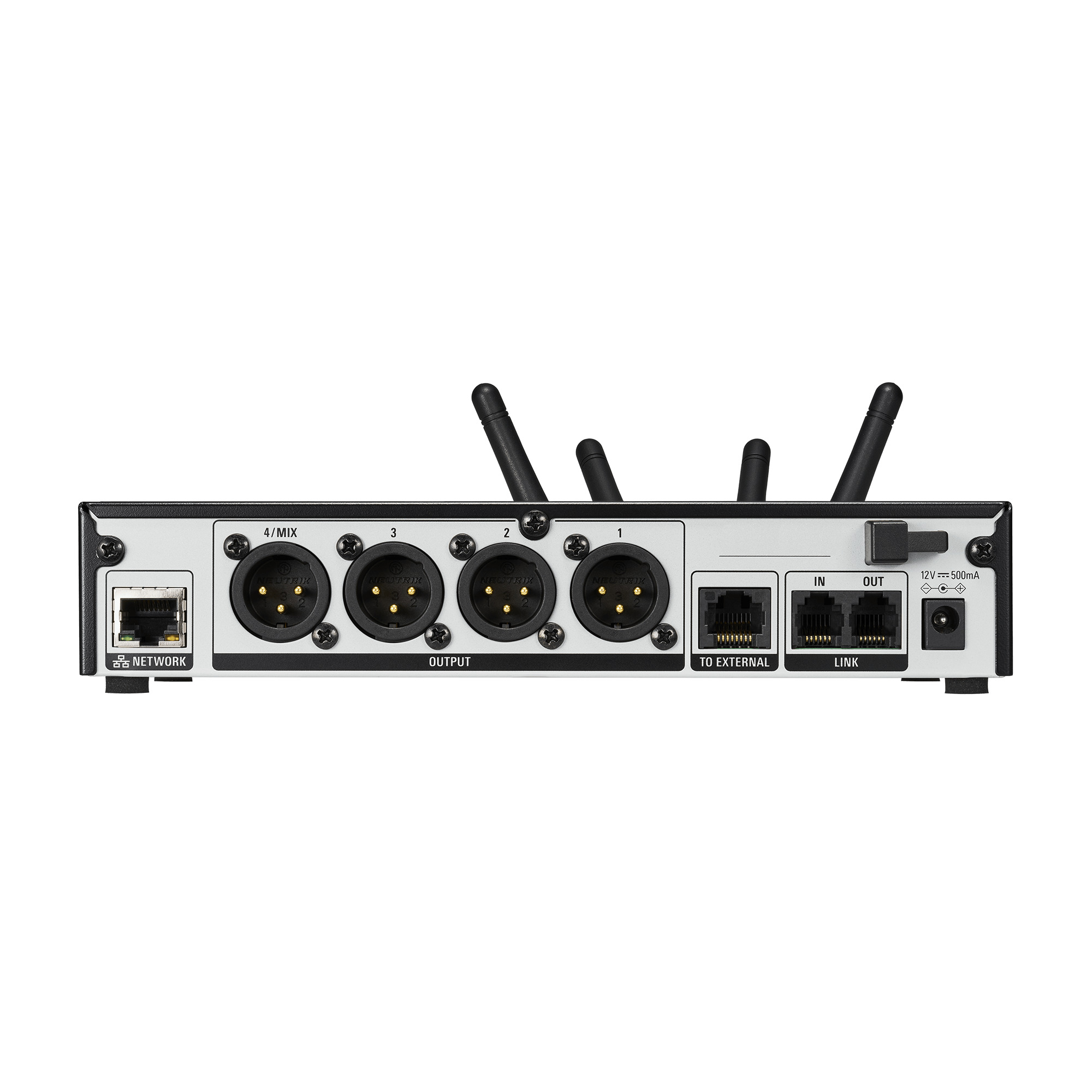

ATW-R1440: ATW-RC14 Receiver Chassis

Receiver unit external connection port

RJ45

NETWORK Port

RJ45: RJ45: RJ45 Fast Ethernet

LINK IN/OUT port

RJ12

Output Level

LINE max: +22dBu (+20dBV),LINE Unity: -20dBu (-22dBV),MIC max: -12dBu (-10dBV),MIC Unity: -50dBu (-52dBV)

Power Consumption

3.7W

Power Supply

DC12V 0.5A (AC adapter)

Dimensions

209.8mm x 165.6mm x 42.5mm (W x D x H)

Weight

740g

Included Accessory

Blade tip for AC adapter and AC adapter, Rack mount adapter (short), rack mount adapter (long), Fixing screws x 5, connecting cable (30cm), rubber feet x 4



ATW-R1440: ATW-RU14 Receiver Unit

Modulation mode

GFSK

RF output

10mW EIRP

RF sensitivity

-90dBm, typical

Whip antenna

1/2 Dipole Antenna, Diversity

External connection port

RJ45

Power Supply

DC12V (RC14)

Dimensions

86.0mm x 70.2mm x 18.7mm (W x D x H)

Weight

77g

Included Accessory

Unit holder, holder cover, wood screws x 2, antenna x 4
