Quad C6-16

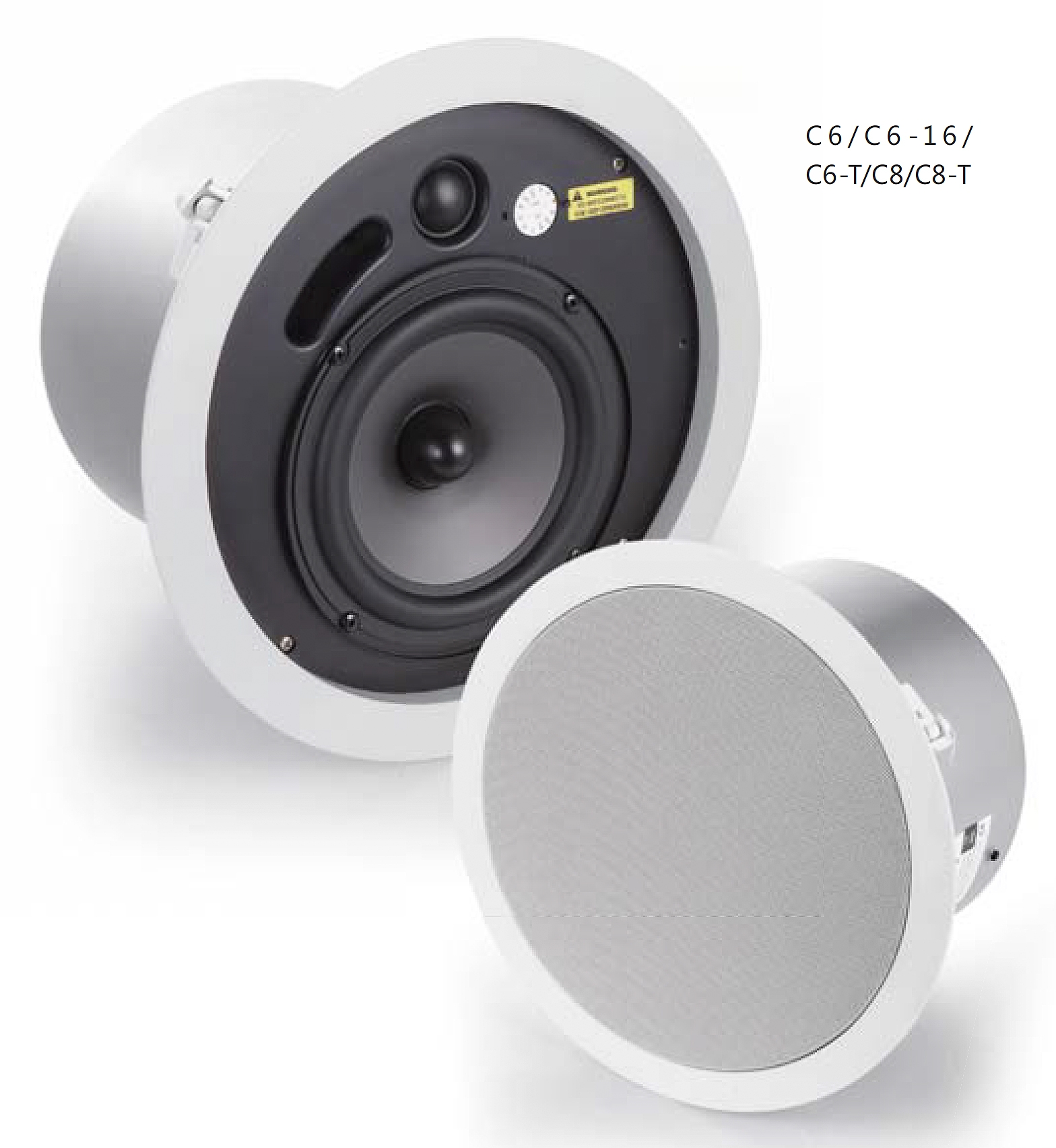

The Quad Concourse C6-16 is a 6" two way high performance ceiling speaker rated at 50 watts RMS 16 ohms, low impedance.

Sold and priced as a pair.

The high fidelity transducers and sophisticated crossover network ensures excellent reproduction of both speech and music.

  • Complete, integrated ceiling mounted speaker systems
  • Unique two-way designs utilizing genuine QUADTM drivers

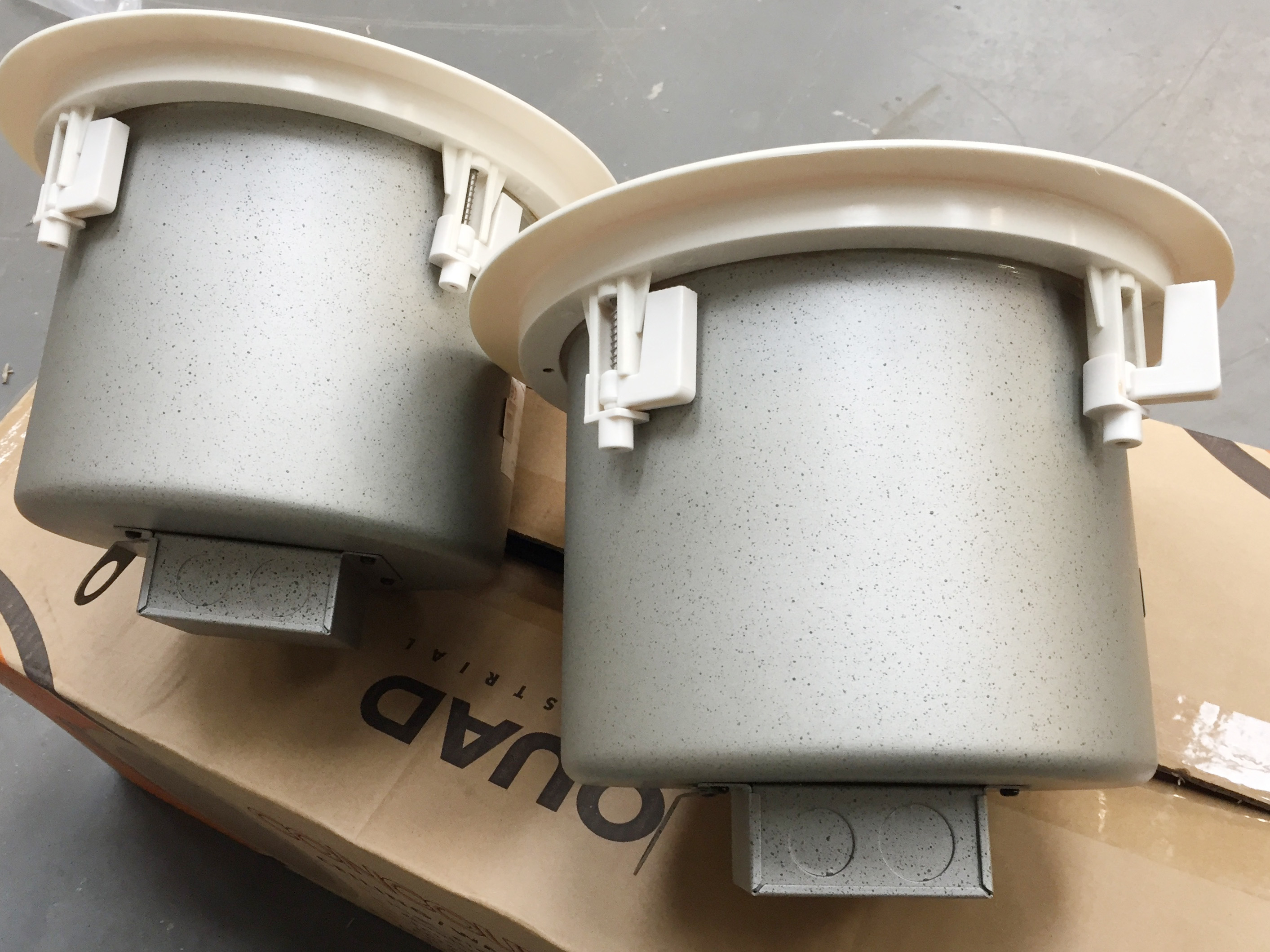

  • Integral steel backboxes come fully assembled
  • Multiple termination options with conduit capability

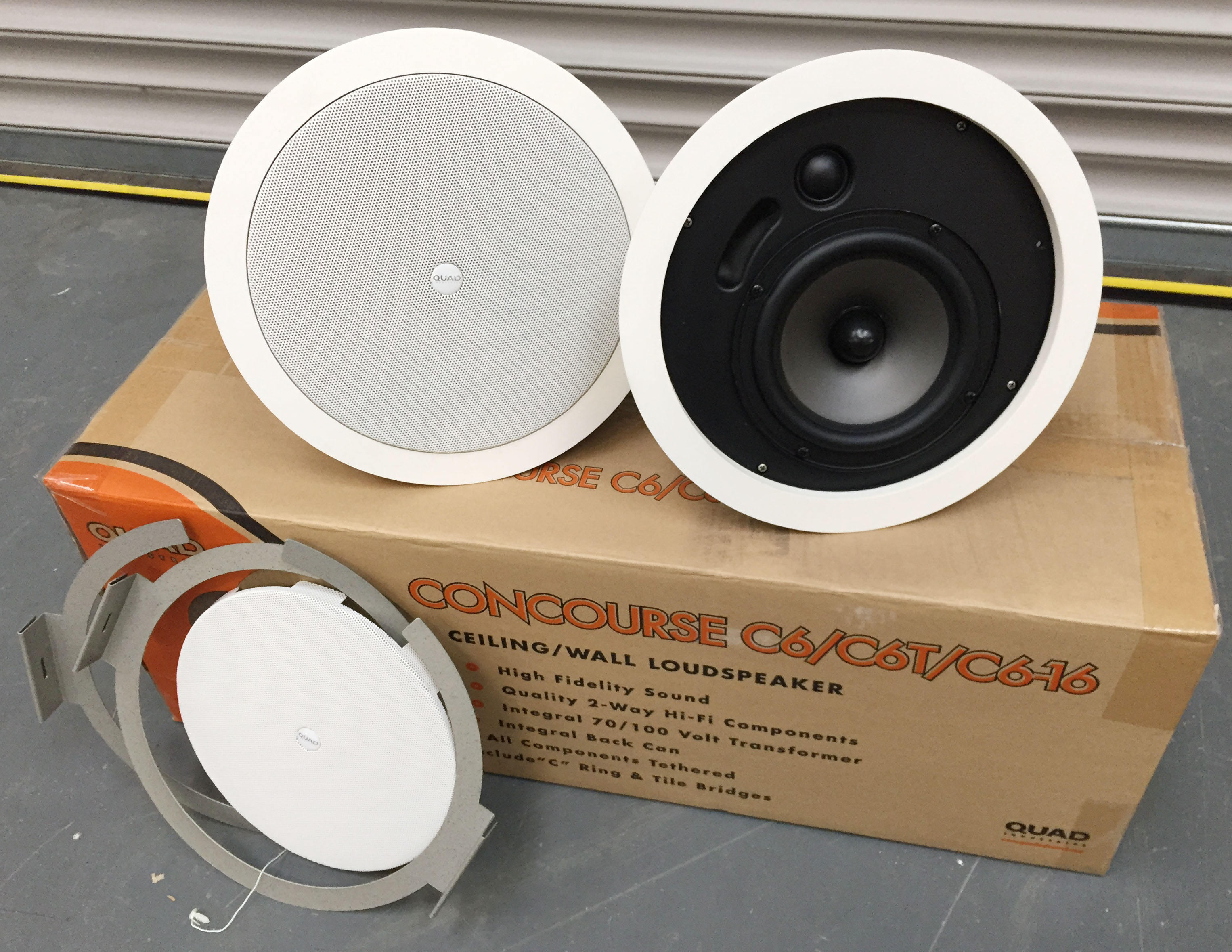

  • Supplied with mounting support for ceiling tile installation
  • All systems are CE rated

*We have limited stock of this superb ceiling speaker - Once they have gone, this price will not be repeated.*

16ohms
List Ex VAT: £20.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

power handling: continuous 50 watts
power handling: program 100 watts
power handling: peak 200 watts
frequency response(-10dB) 50Hz - 20kHz
frequency response(+/-3dB) 70Hz - 20kHz
Sensitivity (@1W/1M) 86dB
Max SPL 109dB
Coverage (H x V) 110° x 90°
Directivity (DI) (H x V): 4.75
woofer size 6 inch
tweeter size 1 inch soft dome tweeter
impedance 16 ohms
Crossover Frequency 2.5kHz
Enclosure material Plastic (ABS) with metal can
Connector Type: Screw terminal
Dimensions (W x D) 295 x 219mm
Net weight 2.5kg
