Mipro MRM-58

Mipro MRM-58

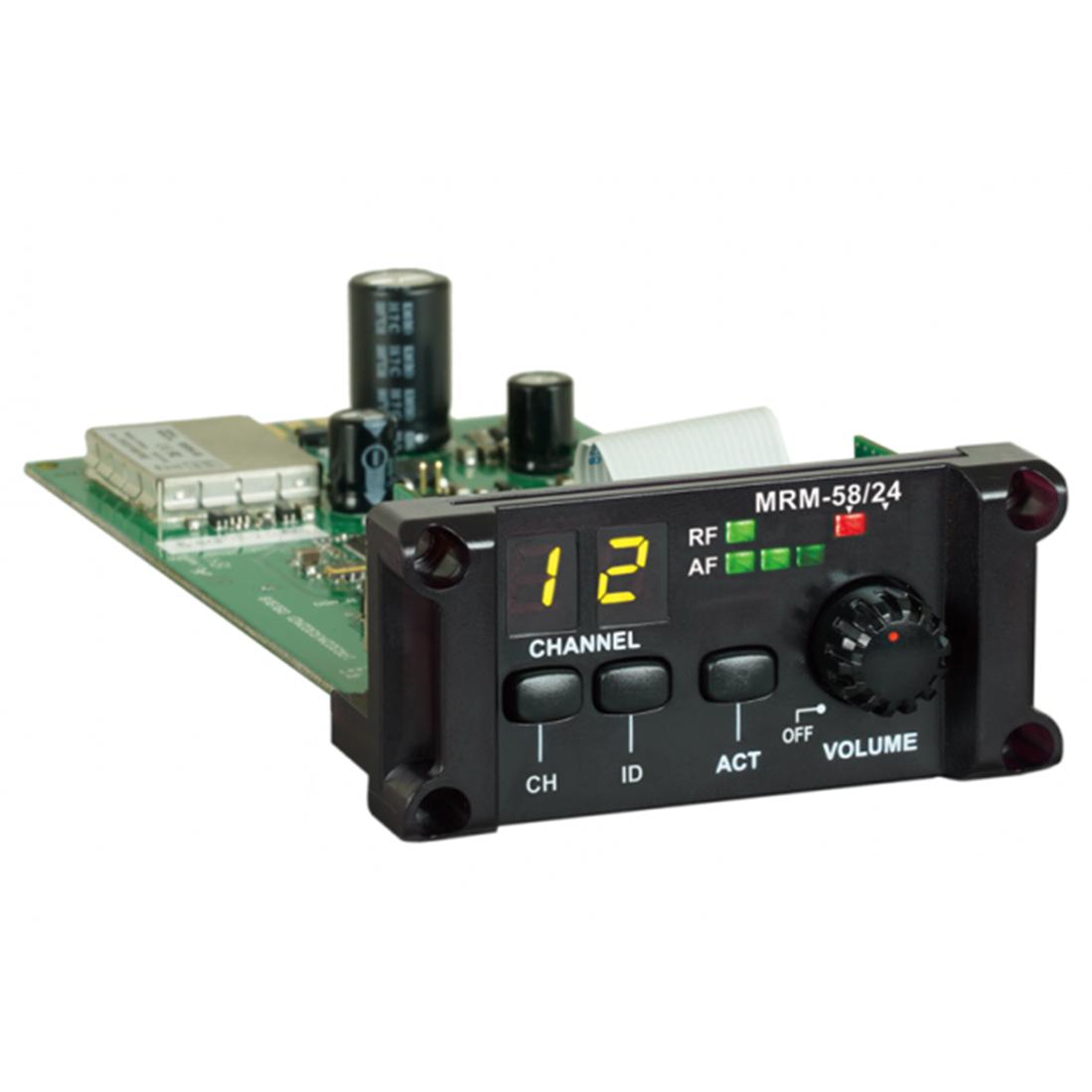

The Mipro MRM-58 58GHz true diversity receiver simply slots into the Mipro portable PA systems to facilitate the use of wireless microphones.

Compatible with the Mipro MA-505, MA-707, MA-708 and MA-808 portable PA systems.

Enables the use of the Mipro hand held wireless mics and / or beltpack transmitters.

  • 12 preset compatible channels with 8 selectable ID codes to prevent interference at the same location. One specific ID is exclusively for 1-to-1 pairing.
  • Digital modulation and true diversity receiving eliminate signal dropouts.
  • An easy-to-read LED channel display, RF indicator and AF meters.
  • The modular design allows for fast and easy installation or replacement.
  • Warranty: 1 Year
5.8ghz
List Ex VAT: £169.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Model

MRM-58, ISM 5.8 GHz Single-Channel Receiver Module

Frequency Range

5.725~5.850 GHz

Bandwidth

125 MHz

Preset Channels

12 preset compatible channels with 8 selectable ID codes and one specific ID to prevent the audio crosstalk on the same channel.

Channel Setup

Manually set up the desired channel or scan for an open channel. Press the ACT button to synchronize the transmitter and receiver.

ID Code Setup

d1, d2, … d8 for general selection. dP for 1-to-1 Pairing mode.

Display

LED channel, RF indicator and AF meters.

Receiving Mode

Dual-tuner digital true diversity

Sensitivity

+12 dBμV

Latency

< 2.6 ms

S/N Ratio

> 113 dBA, analog output

T.H.D.

< 0.1% at 1 kHz

Frequency Response

20 Hz ~ 20 kHz

AF Output

2 V rms

Power Supply

12 ~ 15 V DC

Dimensions

75 × 35 × 147 mm (W×H×D)

Weight

Approx. 80 g



DOWNLOADS

Mipro MRM-58 Datasheet
Mipro MRM-58 User Manual
