Enclosure Systems PR09U6045

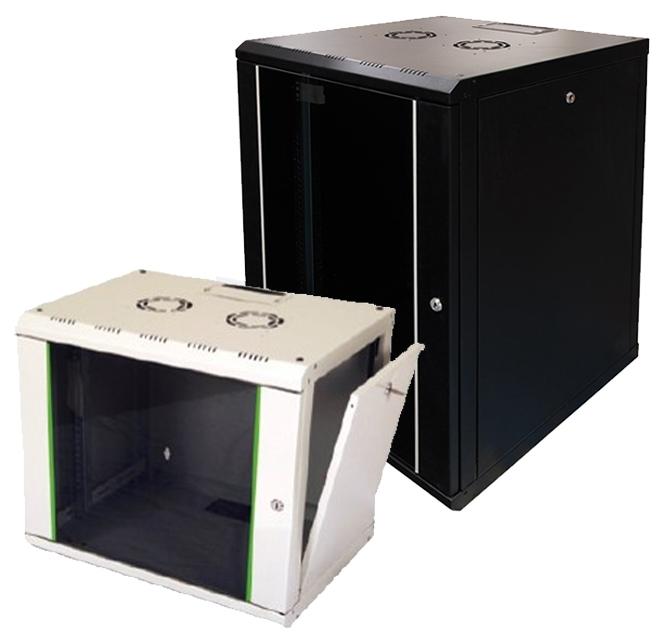

Enclosure Systems PR09U6045 - PROLINE Series 9U floor and wall mounting 19" equipment rack (450mm deep).
Available in grey or black.
The removable rear panel allows easy ‘one man’ installation. Simply level, mark and fix the rear panel to the wall and then lift and secure Proline cabinet into place.
All the racks in the Proline Series include removable and lockable side panels to allow easy access to the rear of equipment and cable looms and quick release door hinges allow easy removal or reversal of the glass front door, giving all round access to the cabinet.
The strong and robust cabinet arrives pre-built with riveted construction.
Cable entry access is via the top, rear and base, top cover cable entry point has a rubber edged, sliding mechanism which holds any cables in place and prevents dust ingress. The base cover and rear panel have similar rectangular ‘cut-outs’ and are fitted with PVC gland plates.
Complete with safety glass door.
- Riveted construction for strength and rigidity
- Full length smoked, shatterproof glass lockable front door
- Removable side panels for easy access
- Removable ‘easy install’ rear panel
- 7U, 9U, 12U, 16U & 20U heights available
- 450mm and 600mm depths available
- Front 19” mounting profiles only
- Floor standing/under desk applications possible with optional castor sets and levelling feet
- Available in epoxy powder paint finish in grey (RAL 7035) and black (RAL 9005).
Also available in a deeper 600mm version - see PR09U6060.
