Electro-Voice ZX1i-90B
Click to expand

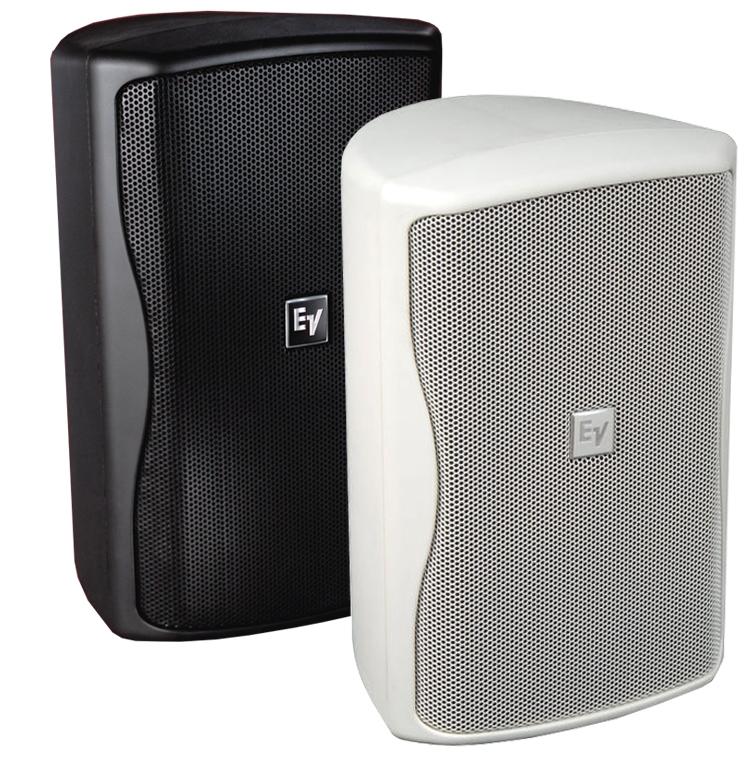

Electro-Voice ZX1i-90B

The Electro-Voice ZX1i-90B is an 8" two way loudspeaker with a lightweight and durable high-tech enclosure and high power output. Suitable for use both indoors and outdoors. Rated at 200 watts, 8 ohms. Black finish.

The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance in addition to excellent low frequency response without vent noise.

A sophisticated crossover network integrates it with the EV DH2005, a 1-inch exit true compression driver with extended frequency response and high output capability.

Full-bandwidth overload protection is provided for reliable, long term operation without audible effect.

Weatherised components and the molded polymer enclosure make this speaker water resistant. and suitable for a variety of  environmental conditions.

TZX1i installation is incredibly simple with the included QuickSAMTM mounting system.

Also available in white.

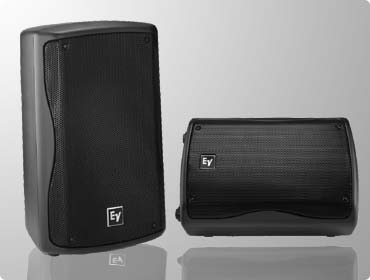

This model has a coverage pattern of 90° x 50° for longer throw and cluster applications. An added benefit is horn rotation, allowing the ZX1i to be oriented either horizontally or vertically for complete coverage flexibility.

  • Indoor/outdoor design
  • Ideal for installed mains, fills, or distributed sound
  • Velocity-compensated port for exceptional LF
  • Long-excursion weather-treated EV8L woofer
  • 1.25-inch DH2005 titanium HF compression driver
  • 90º x 50º rotatable horn
  • Passive crossover with full-band overload protection
  • Also available in 70/100 volt transformer version with Electro-Voice PATENTED ASC™ Automatic Saturation Compensation
  • High sensitivity, 123 dB maximum SPL
  • Power handling: 200 W continuous, 800 W peak
  • Compact high-impact polypropylene enclosure

    Sold and priced individually.
IPxx 8ohms
List Ex VAT: £603.70
Log in for Trade Prices


Enclosure Material

High Impact Polystyrene



Input Connections

4-pin Phoenix

Speaker Type

Fullrange, Mid-High, Two-Way

Recommended High-Pass Frequency

40 Hz

Frequency Response (-10 dB)

48 - 20000 Hz

Sensitivity 1 W/1 m

94 dB

Max. SPL/1m (calc)

123 dB

Coverage (Nominal -6 dB) H

90 ° rotatable

Coverage (Nominal -6 dB) V

50 ° rotatable

System Power Handling (Continuous/Program/Peak)

200//800 Watts

LF Transducer

8-inch EV8L

HF Transducer

1.25-inch DH2005

Crossover Frequency

1700 Hz

Minimum Impedance

6 Ω



Dimensions H x W x D (mm)

451 (17.76") x 282 (11.1") x 263 (10.35")

Weight (kg)
