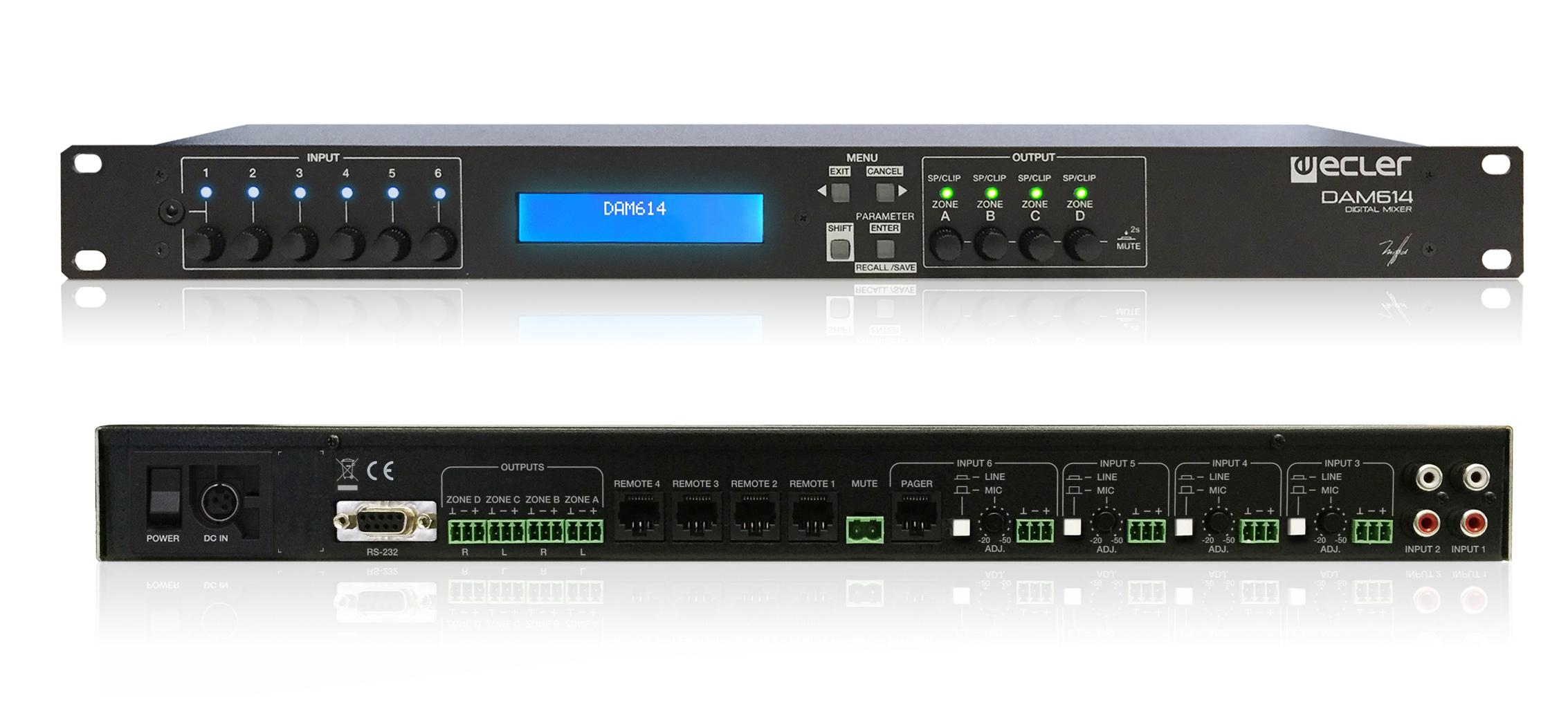

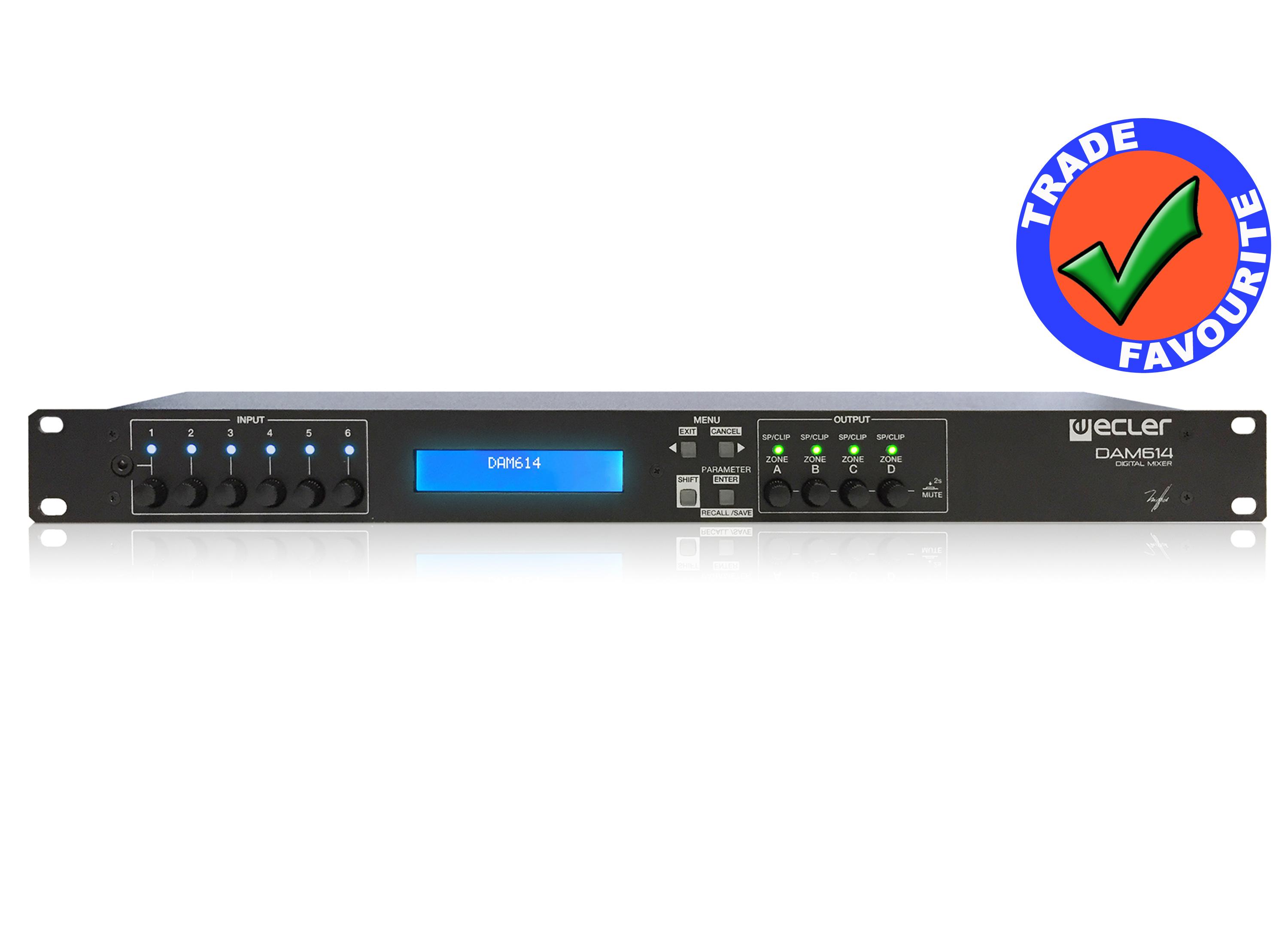

Ecler DAM614
Click to expand

Ecler DAM614

The ECLER DAM614 fully programmable audio digital mixer is one of our favourite products. It features 6 audio inputs and 4 audio outputs, front panel inputs and outputs level controls, DSP processing, RS-232 connectivity and 4 remote control ports (0-10VDC). Its 4 outputs can be used as mono independent zones or coupled as stereo zones.

The first 2 inputs are stereo LINE inputs. The 3rd, 4th, 5th and 6th inputs are MIC/LINE ready (phantom available), and can be used either independently (mono) or as stereo-coupled inputs.

Key Features

  • DSP @ 24 bits / 48kHz
  • Front panel LCD display
  • 6 front panel input control digital knobs (one per input)
  • 4 front panel output control digital knobs (one per output)
  • 4 front panel keys, for parameters adjustment and menus navigation
  • Processing:

Independent level control for each input and output
Independent mixer for each output zone
Crossover filters available for each output
Independent 10 band graphic EQ for each output
Independent and adjustable High-pass filter available for MIC/LINE inputs
2 level priority PAGER / DUCKER function, triggered by MIC/LINE inputs
Independent Noise Gate function for MIC/LINE inputs
Independent Feedback Suppressor Function for MIC/LINE inputs

Adjustable delay time for 2 outputs

multi-ch multi-zn 1U
List Ex VAT: £803.01
Log in for Trade Prices


Communication Interfaces

1 x RS232 with EclerCOMM and CA-NET protocol compatibility


2 x Stereo Line (RCA) + 4 x MIC/LINE (Euroblock)


4 Balanced outputs (Euroblock)


1 x Page port for real time voice paging using an MPAGE4 station

Remote control

4 x RJ45 Ports (0-10 Vdc) ready for WPm series wall panels + 1 x MUTE

Tone Control

Independent per input and output (DSP Processing)


482.6 x 44 x 120 mm


2.00 kg

For more detailed specifications, please download the datasheet & manual.

Related Products

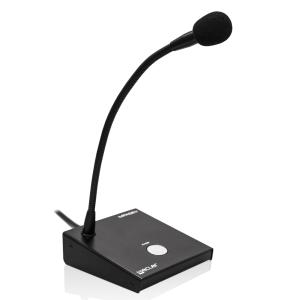

Ecler MPAGE1r
