Apart CMX20TW
Click to expand

Apart CMX20TW

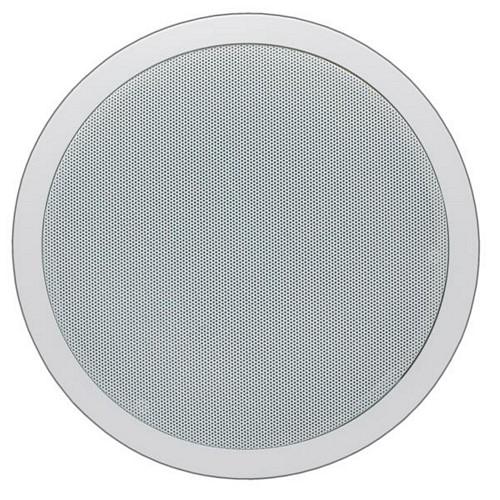

The APart CMX20T 2-way flush mounted ceiling loudspeaker offers a warm and deep sound ideal for speech or music, especially suitable for higher volume levels.

Rated at 20 watts, 100 volt line but also compatible with low impedance music systems with a rating of 50 watts RMS at 16 ohms. In 16 Ohm use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 Ohm amplifier.

The 8” enforced polypropylene woofer and 1” tweeter reduces distortion making the CMX20T ideal for the distribution of microphone calls and background music at a higher volume level.

Constructed in high quality ABS with an aluminium grille and polypropylene woofer with a rubber edge, making it water resistant, IP54 rated. Ideal for bathrooms and kitchens.

Easy to install, due to its simple quick mounting system (3 screws hidden behind the loudspeaker grill) and quick fix connector.

Available in black or white.

100V IPxx 16ohms
List Ex VAT: £55.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

outside diameter 244 mm
depth 87 mm
cutout 223 mm
installation grip range 4 - 25 mm
loudspeaker system 2-way
woofer size 8 inch
woofer cone material polypropylene
tweeter size 1 inch
mounting system 3 screws
100V transformer power taps 20 - 10 - 5 watts
70V transformer power taps 20 - 10 - 5 - 2.5 watts
impedance 16 ohms
low impedance dynamic power 100 watts
low impedance RMS power 50 watts
SPL 1W/1m 88 dB
max SPL 1m 108 dB
frequency response 50 - 20K Hz
main construction material ABS plastic
grille main material aluminium
IP rating 54
applicable low impedance yes
applicable in 100V yes
Vertical dispersion angle 1000 Hz 180°
closest RAL colour (subject to deviations) RAL9010 (W) / RAL9011 (BL)
Net weight product 1.40 kg
