Denon DN-500BD MKII
Click to expand

Denon DN-500BD MKII

The Denon DN-500BDMKII is a versatile multi-media player offering video playback of Blu-Ray discs and DVD's as well as audio CD. The SD card and USB ports enable playback of video, audio and picture files for even more versatility.

Slimline rack mounted 1U chassis.

  • Plays Blu-Ray, DVD, CD and files from SD/USB media
  • Supported Blu-Ray disc formats: BD25, BD50, BD-RE, BD-ROM and BD-R
  • Supported DVD formats: DVD, DVD+R, DVD+RW and DVD-RW
  • Supported audio disc formats: CD, CD-R, CD-RW, DTS Music Disc (DTS Audio CD, 5.1 Music Disc), HDCD, Super Video CD (SVCD) and Video CD (VCD)
  • SD/USB supported video, audio and picture file formats: .3gp, .asf, .avi, .dat, .divx, .mkv, .mov, .mp4, .mpg, .m2ts, .ogm, .rmvb, .tp, .ts, .wmv, .ass, .smi, .srt, .ssa, .sub, .ape, .flac, .m4a (AAC), .mp3, .wav, .gif, .jpg (or .jpeg) and .png
  • USB/SD file systems: FAT16, FAT32 and NTFS
  • Discrete 7.1ch analog audio output
  • XLR balanced audio output
  • RS-232C and IP control capability
  • Power-on Play button eliminates extra steps, and provides simplified, ultra-fast startup
  • Panel lock and IR remote lock functions prevent unwanted or accidental operation
  • Improved, easy-to-read OLED display
  • OSD (On Screen Display) hiding mode eliminates unwanted menu items and disc transport icons
  • Transport controls located conveniently on the front panel
  • Repeat mode offers an uninterrupted playback loop
  • Occupies only a single rack space (1RU)



1U CD RS232 SD USB
List Ex VAT: £333.33
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

For complete specifications, please download the datasheet.

Supported Blu-ray Disc Formats

BD25, BD50, BD-ROM, BD-R, BD-RE

Supported DVD Formats

DVD, DVD+R, DVD-R, DVD+RW, DVD-RW

Supported CD Formats

CD, CD-R, CD-RW, DTS Music Disc (DTS Audio CD, 5.1 Music Disc), HDCD, Super Video CD (SVCD), Video CD (VCD)

Supported File Formats



Video: .3gp, .asf, .avi, .dat, .divx, .mkv, .mov, .mp4, .mpg, .m2ts, .ogm, .rmvb, .tp, .ts, .wmv

Subtitles: .ass, .smi, .srt, .ssa, .sub

Audio: .ape, .flac, .m4a (AAC), .mp3, .wav, .wma

Picture: .gif, .jpg (or .jpeg), .png

Supported File Systems



FAT16, FAT32, NTFS

SD card with 128GB total capacity

USB drive (mass storage class) with 2 TB total capacity

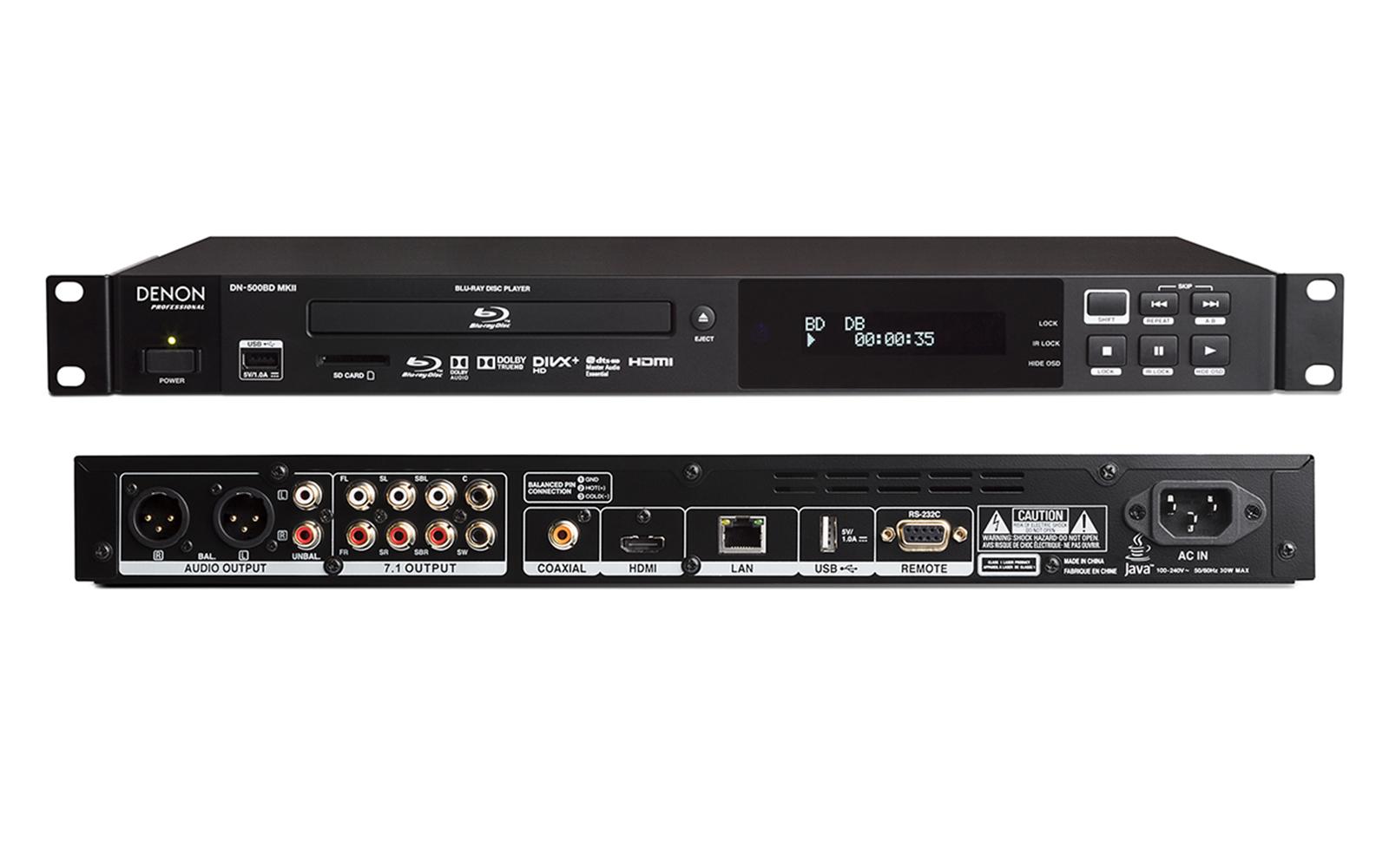

Outputs

(2) XLR audio outputs (L/R, balanced)

(2) RCA audio outputs (L/R, unbalanced)

(8) RCA audio outputs (7.1 surround sound)

(1) Coaxial digital audio/visual output

(1) HDMI audio/visual output

(1) RJ-45 LAN port

(1) 9-pin D-Sub female RS-232C port

(1) IEC power connection

Serial Remote Connector

9-pin D-Sub female, RS-232C

Ethernet Connector

LAN port

Power Requirement

100–240 VAC, 50/60 Hz

Power Consumption

15 W typical, < 0.5 W standby

Dimensions (w x d x h, with rack ears)

19.00” x 10.75” x 1.73” (483 mm x 273 mm x 44 mm)

Weight (with rack ears)

5.9 lbs. (2.7 kg)
