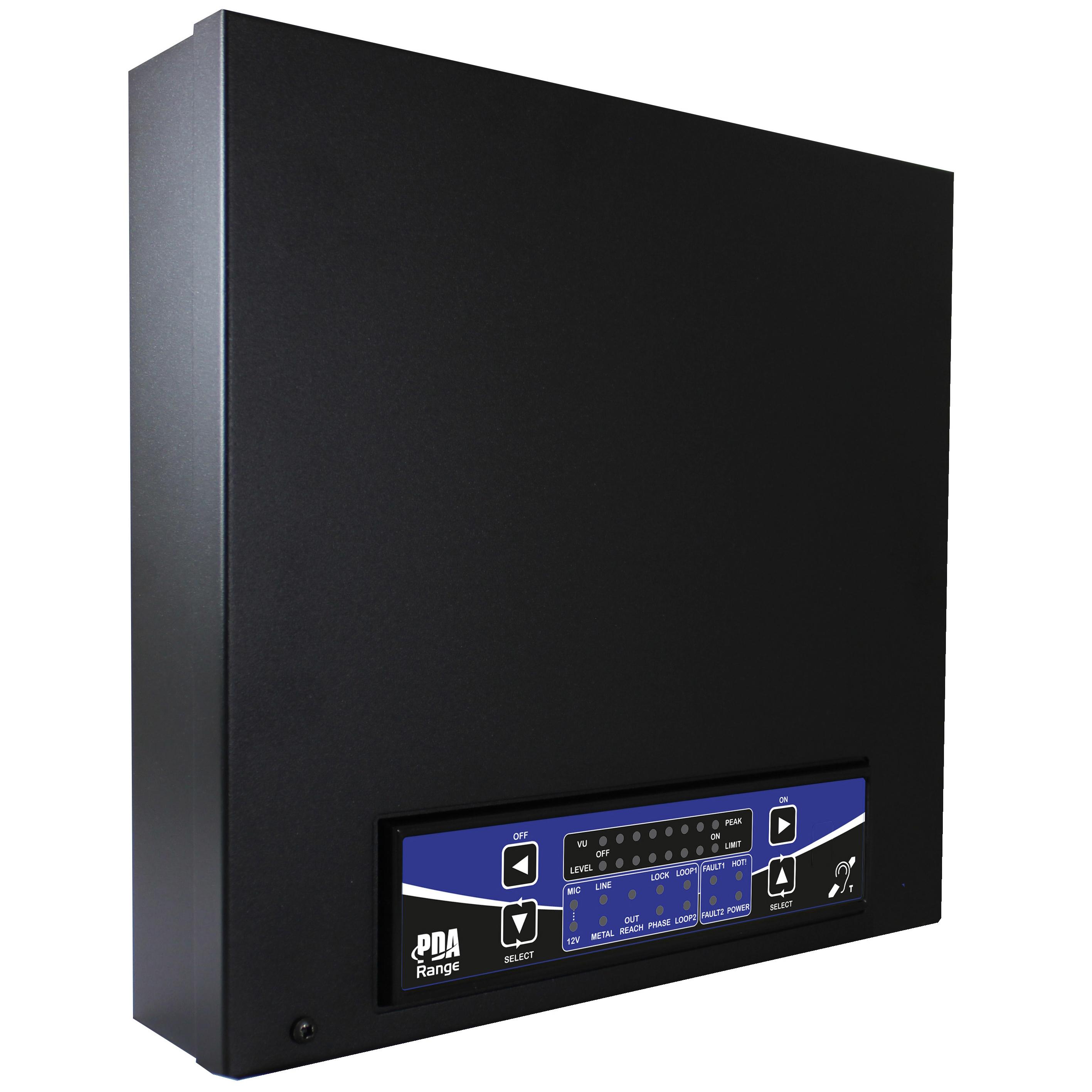

Signet PDA7/SW

The Signet PDA7/SW wall mounted loop amplifier is ideal for larger installations with its output current of 7.5 Amps, suitable up to 500m².

There are three versions of this freestanding amp available with the following loop drive current / approximate coverage ratings;

  • PDA5/SW - 4.75 Amps, up to 200m²
  • PDA7/SW - 7.5 Amps, up to 500m²
  • PDA11/SW - 11 Amps, up to 1000m²

The intuitive LED interface allows simple set-up of input levels, output current, phantom power and metal compensation settings and the display gives a clear indication of operation or fault status.

  • Wall mounted with fixed mains connector
  • Intuitive LED display for easy set up
  • 2 x XLR mic / line inputs
  • Outreach connector allows up to 10 Signet Outreach Utility Plates to be added
  • Class D output stage for maximum efficiency
  • Superior audio processing and powerful CPU provide life-like speech and first class music reproduction.
  • Short circuit protection against loop faults
  • Dual action auto gain control compensates for poor mic technique
  • Complies with EN62368-1 (Safety requirements for audio/video, information and communication technology equipment)
  • Phantom power (12V) for electret microphones
  • Line level output for recording or daisy-chaining multiple units to cover larger areas
  • Metal compensation for buildings with high metal content
  • Anti-tamper lock function
  • Also available as a desktop version - see PDA5/SD, PDA7/SD and PDA11/SD
  • Warranty: 5 Years
Loop
List Ex VAT: £443.45
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Type

Wall-mounting (requires a permanent 5A fused spur connection to Mains)

Coverage

PDA7/SW: 500m² approx.

Mains Supply

230V 50Hz

Output

PDA7/SW: 7.5A loop drive current @ 1 Ohm; Loop output voltage 14V.

Auxiliary Inputs

2 x XLR mic/line inputs with switchable 12V phantom power (on or off) & Outreach connector

Indicators

LED display with level, peak and limit indicators, Mic, 12V, Line, Metal, Outreach, Lock, Loop, Fault, Hot and Power Indicators.

Controls

Line Input, Microphone, 12V Phantom, Outreach, Metal Comp, Loop Drive

Connections

Mic (3-pin XLR); Line In (3-pin XLR); Loop (2 way binding post); Outreach (4-way pluggable connector); Line Out (3-way pluggable connector); Fault Relay (3-way pluggable connector);

Dimensions (mm)

298 (H) x 308 (W) x 74 (D) mm.

Construction

Mild steel zintec, 1mm thick, black powder coated

IP Rating

IP40

Weight

3.35kg

Related Products

Signet PDA7/SD

Freestanding loop amplifier with LED display. To suit rooms up to 500m²

see more
List Ex VAT: £407.71

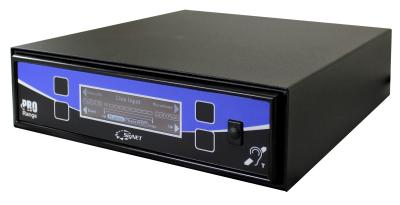

Signet PRO7/SD

Freestanding loop amplifier with OLED display. 7.5 Amps, for rooms up to 500m².



see more
List Ex VAT: £468.75

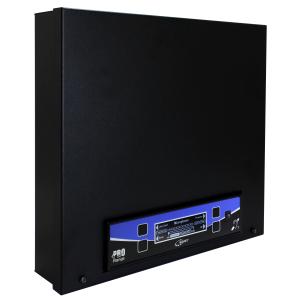

Signet PRO7/SW

Wall mounted loop amplifier with OLED display. 7.5 Amps, for rooms up to 500m².

see more
List Ex VAT: £504.55
Signet RXTI2

Induction loop listening device. Use with headphones to test if an induction loop system is working correctly.

see more
List Ex VAT: £55.75
Signet FPROK1

Magnetic field strength meter / induction loop listening device, with test-tone signal generator & headphones.

see more
List Ex VAT: £424.59

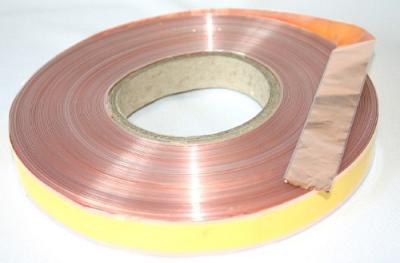

SigNET FLAT2005
